Zilmet ZTPK-034 Tankless Water Heater Protection Kit with ZEP1 & ZAFL2234

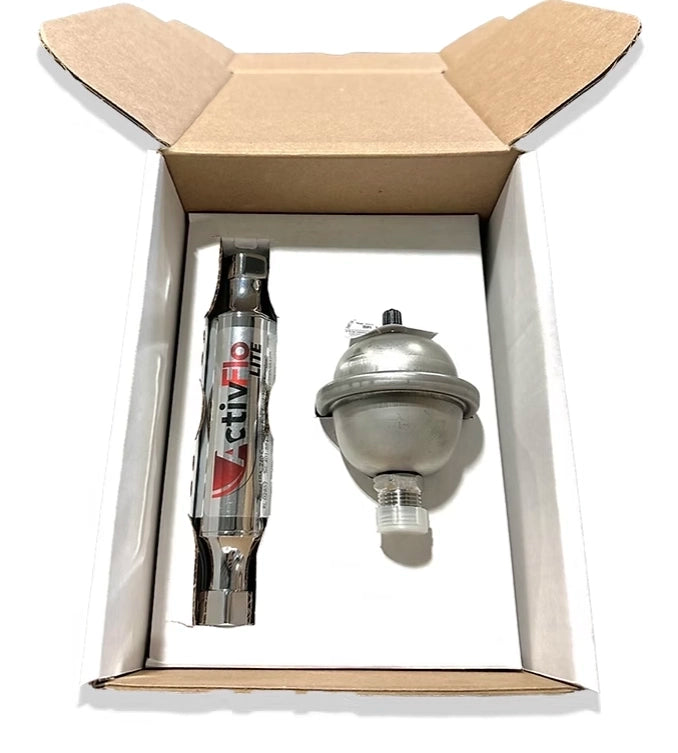

Complete Expansion and Scale Protection Kit for Tankless Water Heaters

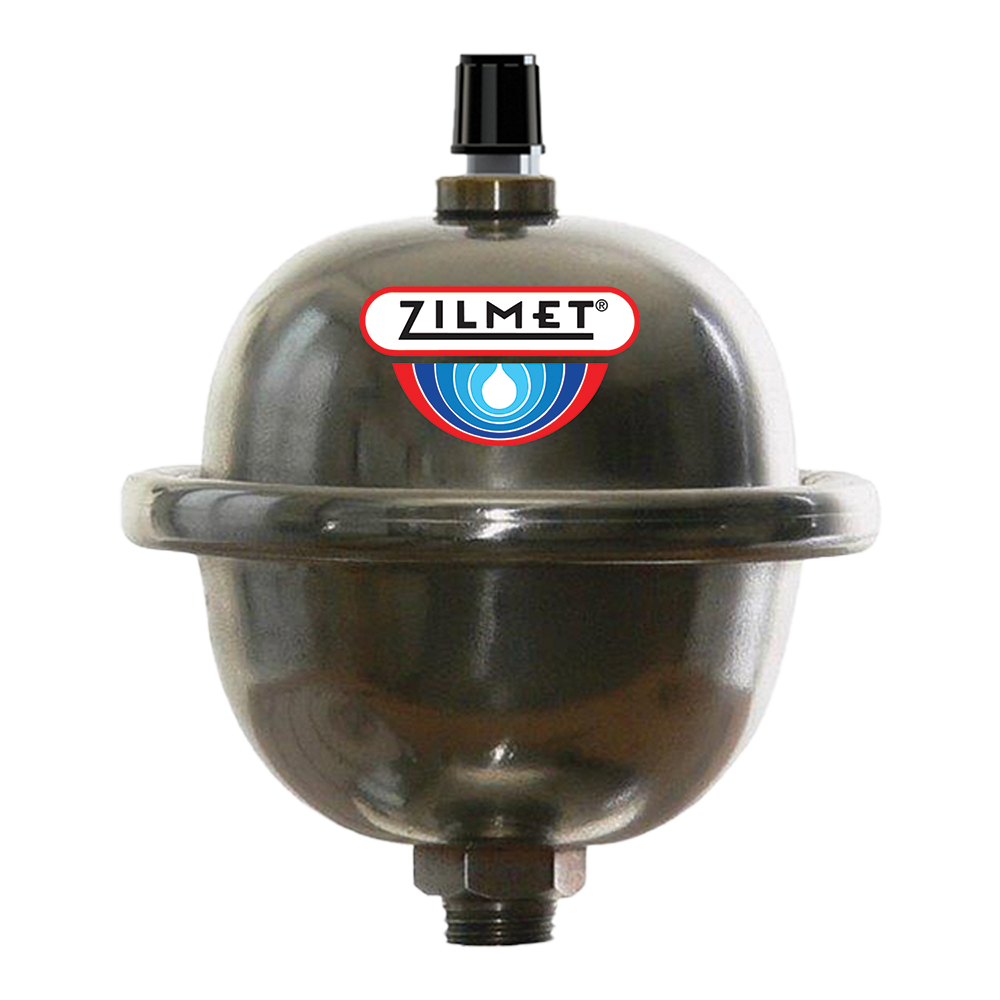

ZEP1 Features

• 150 PSIG Max working pressure
• 50 PSIG factory precharge
• Air charge can be adjusted and is serviceable
• Entire tank is constructed of 304 stainless steel
• ½” NPTM 304 stainless steel connection
• UV resistant and approved for outdoor installation
• Butyl membrane diaphragm

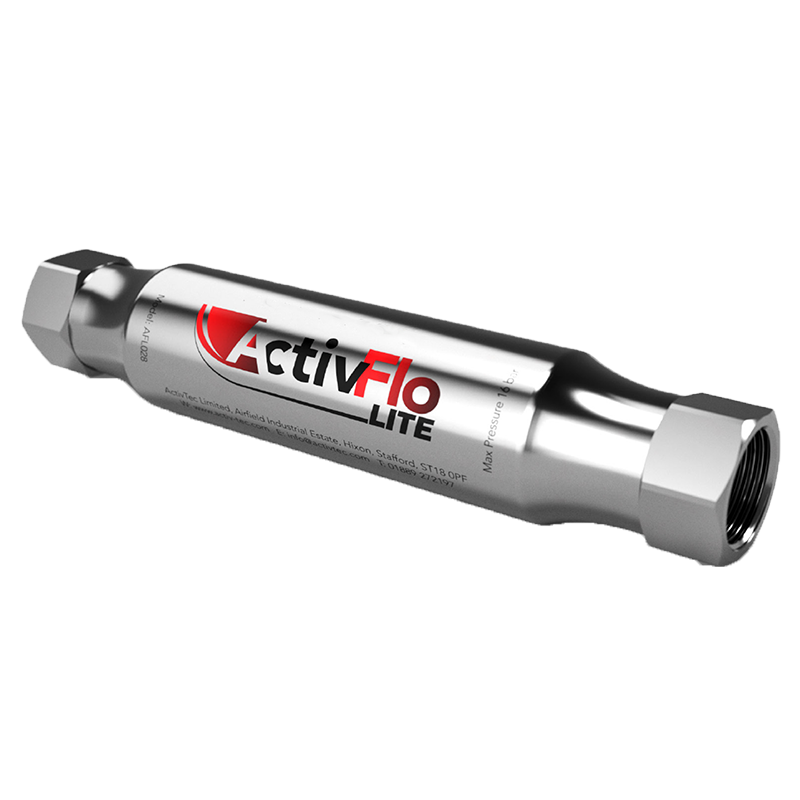

ActivFlo Lite Features

• Designed for all water heaters; including Storage, Tankless and High-Efficiency models
• Protects and extends the life of heating elements, exchanger surfaces and other critical components
• Addresses water heater manufacturers' published  requirements for scale prevention
• No salt, electricity or maintenance required
• High flow and minimal pressure drop



ZEP1 Specifications

• Working Pressure:  150 psig
• Max Temperature:  140° F
• Factory precharge:  50 psig

• Shell & Color:  Stainless Steel

ActivFlo Lite Specifications

• Connections:  3/4" FNPT
• Service Flow Rate:  14 GPM
• Working Pressure:  232 psi
• Max Temperature:  210° F
