Description

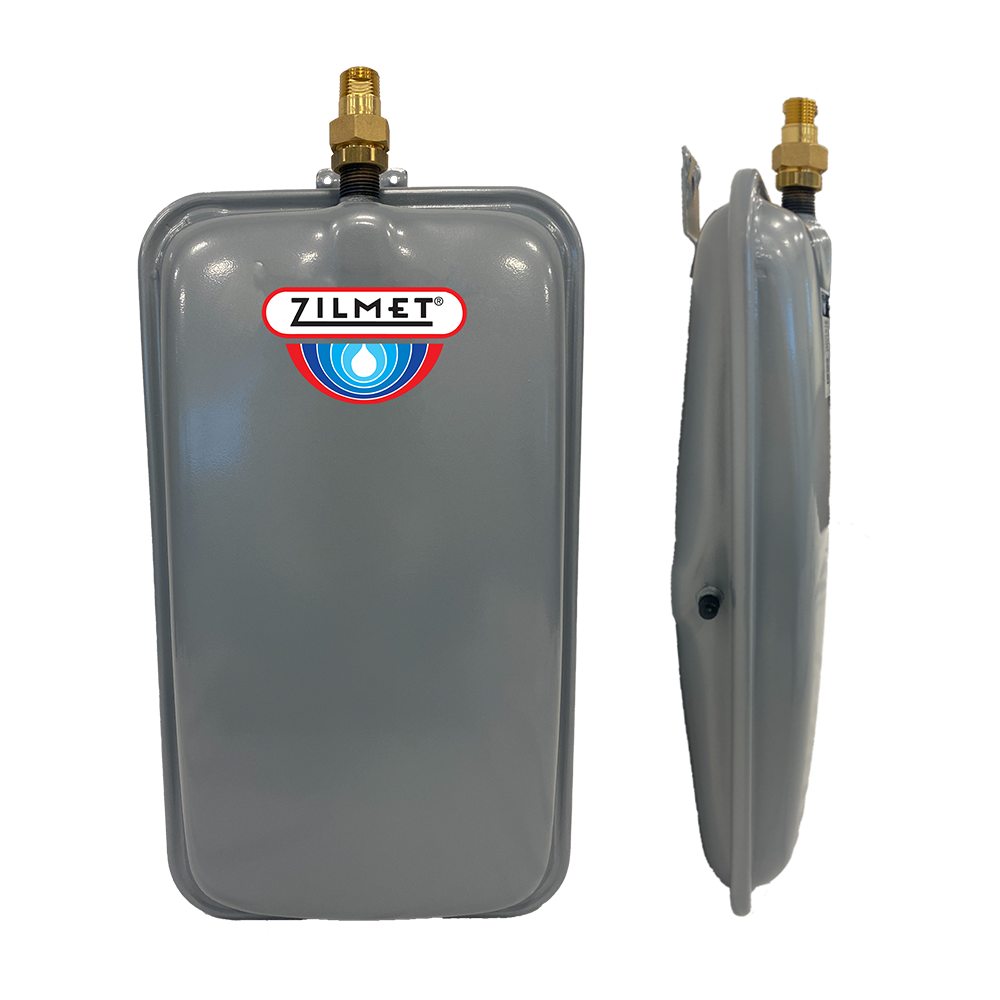

Zilmet ZFT8R 2.1 Gallon Flat Hydronic Expansion Tank, 1/2" MNPT
Low-Profile Design for Wall-Mounted Boilers and High-Efficiency Systems
Zilmet ZFT flat hydronic expansion tanks offer high capacity in a compact size, making them an ideal match for today’s heating systems. From traditional installations to wall-mounted boiler boards, every unit includes convenient, installer-focused features
to streamline every job and make service easy. See why ZFT-series are the modern solution for dependable hydronic protection.
Features
- Low-profile design with optimized expansion capacity to protect new or existing installations
- Industry-best diaphragm acceptance withstands greater expansion volume without overextending
- Includes welded bracket for flexible mounting options in any position
- Exclusive union connection simplifies installation; dual-check design allows dry-disconnect for easy service
- Perfect accessory to pair with a wall hung condensing boiler
-
Provides a more professional look to the mechanical room
-
Great for tight installations
-
Allows for easier access to the boiler for maintenance
Specifications
-
Carbon Steel Shell Stainless Steel Connection
-
SBR synthetic rubber membrane
-
½” NPT connection
-
Max working pressure (ZFT8C, ZFT18C, ZFT8R): 43.5 PSIG
-
Operating temperature: 194°F
-
Factory precharge: 12 PSIG
- Industry Size: #15
- Capacity: 2.1 gallons
- Length: 17.2"
- Width: 9.8"
- Height: 3.7"
- Weight: 10lb
- Acceptance: 1.1 gallons
-
FOR HYDRONIC USE ONLY
Brochure
Installation Instructions
