Description

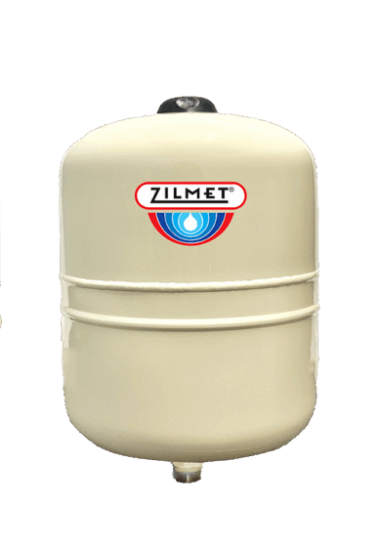

Zilmet ZEP12 Easy-Pro 4.8 Gallon In-Line Thermal Expansion Tank, 3/4" MNPT
Zilmet Thermal Expansion Tanks for water heaters prevent dangerous pressure build up and protect household appliances and fixtures while saving energy and water.
Features
- All tanks are NSF61 Certified
- Each tank is factory leak tested to ensure tank integrity
- MIG welding eliminated interior rough spots and sharp edges
- Exclusive polypropylene liner eliminates internal corrosion
- External baked epoxy-polyester coating provides a durable appliance like finish
- Protected pre charge valve eliminates potential leak path
- Carbon steel shell with a stainless steel connection
Specifications
- Carbon Steel Shell
- Stainless Steel Connection
- Butyl fixed membrane
- Max operating pressure: 150 psi
- Operating temperature: 210°F
- Factory precharge: 40 psi
- Diameter: 10.6 inches
- Height: 13.7 inches
Easy-Pro Brochure
Installation Instructions
