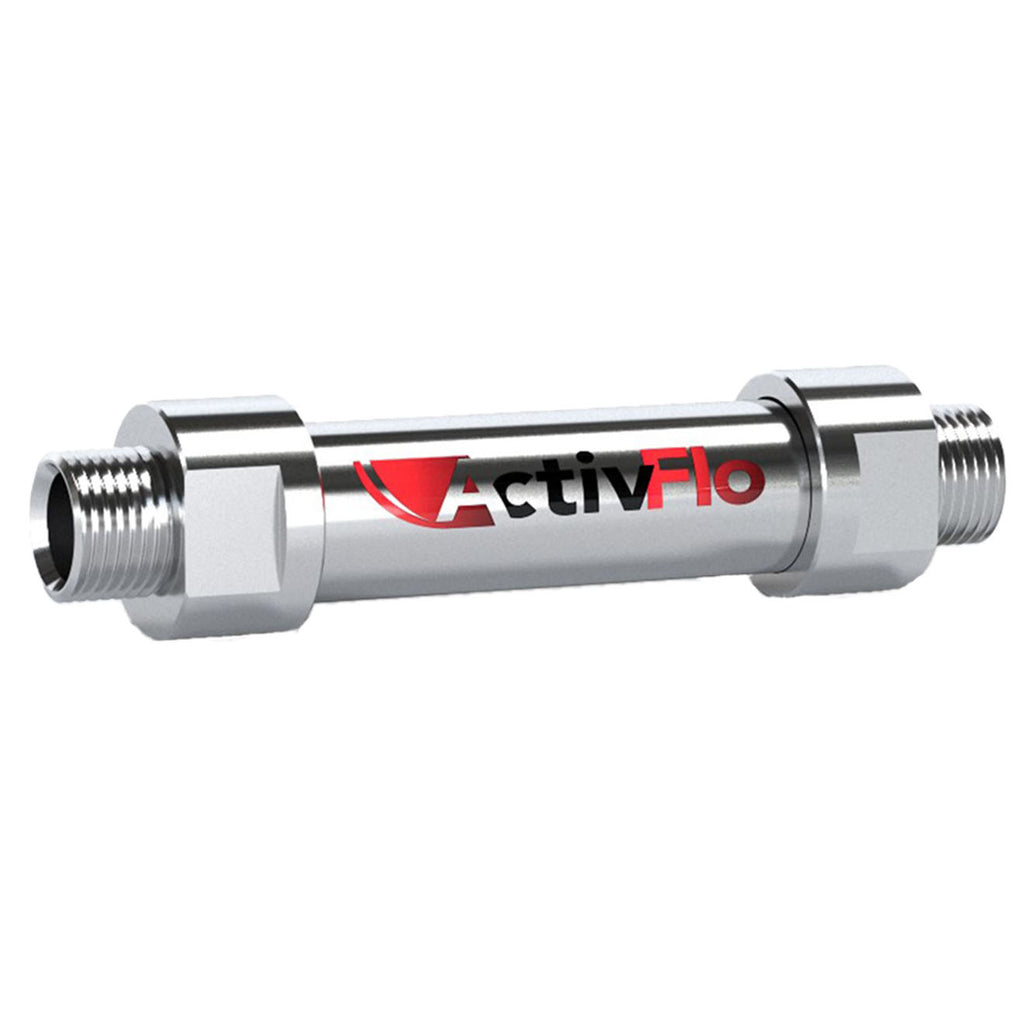

Zilmet ZAF010 ActivFlo for Water Conditioning & Scale Prevention, 1" MNPT

Calcium carbonate in hard water, also known as calcite, creates scale problems. Scale forms when water is heated or subjected to a rapid change in pressure; like flowing out of a fixture. Scaling can cause premature equipment failure, reduce water heater efficiency and cause buildup on fixtures and appliances. ActivFlo converts calcite into aragonite, a harmless form which does not adhere to surfaces. Aragonite stays suspended in the water and flows harmlessly through the system.

Water flowing through ActiFlo generates a charge on the surface of a specialized alloy, and experiences a series of pressure and velocity changes, converting calcium carbonate into harmless aragonite.

Benefits

• Targets hard water problems caused by calcium
• Conditions water without negative effects to taste or feel
• Protects plumbing and appliances; maintains performance and efficiency
• No salt, power or maintenance required
• Compact, inline design saves space

Features

• Compatible with city water and well systems
• Industry's widest model range, from point of use to commercial applications over 900 GPM
• Proprietary flow-through design minimizes restriction and requires no pre-filtration
• High-grade stainless-steel body for indoor, outdoor and underground installation in any mounting position



Specifications

• Connections:  1" MNPT
• Flow Range:  1-9 GPM
• Pressure Drop:  4 Cv
• Body Length:  7.3"
• Outside Diameter:  1.7"
• Max Temperature:  210° F
• Maximum Operating Pressure:  232 PSIG
