Yellow Jacket 93266 YJII™ Vacuum Pump 5 CFM

$243.00
SKU 93266

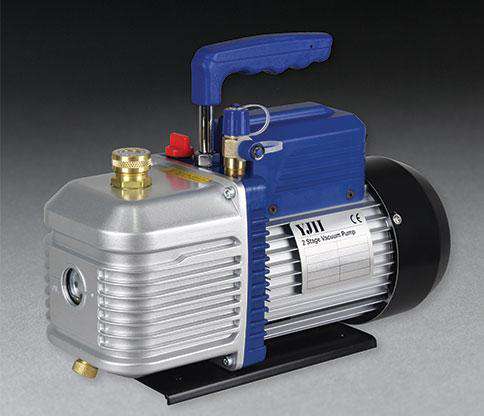

Yellow Jacket YJII™ Vacuum Pump 5 CFM

The 93266 YJII™ Vacuum Pump from Yellow Jacket® is a compact, lightweight, portable and affordable pump for servicing small systems.

FEATURES

  • Deep ultimate vacuum  ̶  pulls to 25 microns or better
  • Quick flow rate
  • Wide range of applications
  • Lightweight, durable aluminum housing
  • Thermal protector in motor to guarantee pump runs steadily and safely for long periods
  • High torque motor design for easy start-up and efficient operation, even in the harshest conditions
  • 1/4” and 3/8” SAE flare inlet connections allow for flexibility of hose fittings/sizes
  • 3/4″ garden hose exhaust fitting with removable cap for venting
  • Oversized 3/8″ oil drain for faster oil changes
  • Vacuum pump oil included

 SPECIFICATIONS

  • Free air displacement: 5 cfm
  • Ultimate vacuum: 25 microns
  • Number of stages: Two
  • Motor: 1/2 hp – 1725 rpm
  • Intake ports: 1/4″ and 3/8″ SAE
  • Voltage (single phase): 120V (50-60HZ)
  • Oil capacity: 18 oz (532 ml)
  • Dimensions: 13″ x 5″ x 11″ (330mm x 127mm x 279mm)
  • Weight: 25.3 lbs (11.5 kg)
  • Product #: 93266

Products typically ship within 1 business day.
