Yellow Jacket 69111 RealTorque™ 1/4” SuperHeat Kit with Torque CRT

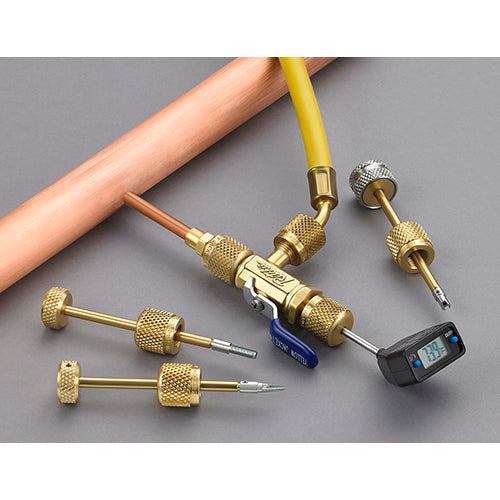

The RealTorque™ Superheat Kit includes all the tools necessary for accurate system superheat calculations. The thermometer and core removal tool with side port allow for the pressure and temperature measurements to be taken at the same system location. Compare these measurements to the system refrigerant P/T chart to determine the system superheat. Once charging is complete, use the RealTorque™ Core Removal tool to properly tighten the system Schrader core to the manufacturers recommended torque value of 3-5 in-lb with its integrated torque mechanism. The kit also includes all the tools necessary to replace Schrader cores without losing system pressure even if the core or mating core threads are damaged.

• Core removal improves the speed of recovery and evacuation
• Torque mechanism clicks when Schrader core has been properly tightened to 3-5 in-lb
• Side port provides attachment location for vacuum gauge
• Available in 1/4” and 5/16” sizes

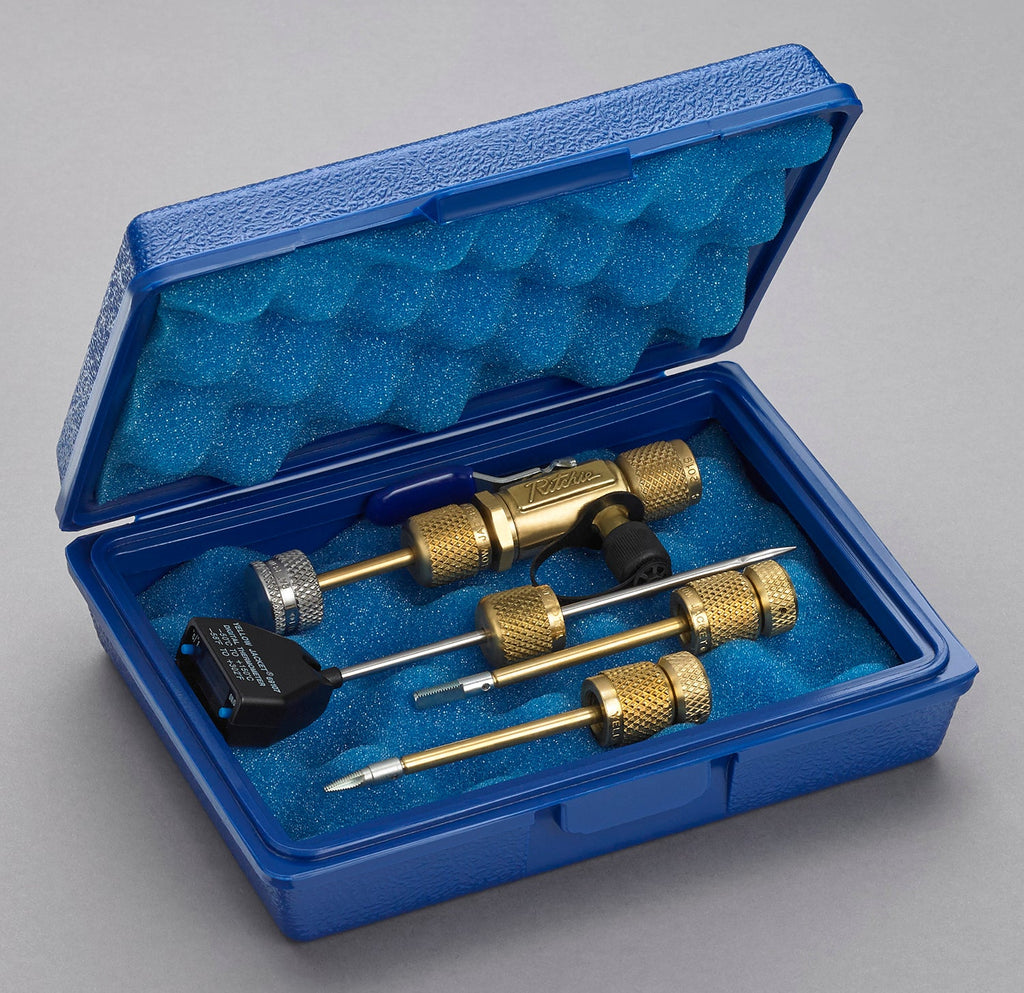

• Complete valves and Superheat Kits supplied in hard cases for protection
• The RealTorque™ Vacuum/Charge Valve with Side Port Removal of system Schrader cores can greatly increase the speed of recovery and evacuation
• Upgrade your current core removal tool with the 18998 (1/4″) and 18999 (5/16″) RealTorque™ Extractor Assembly
• One-year warranty
• Made in USA
