Yellow Jacket 67065 YJACK PRESS™ Wireless Pressure Gauge

SKU 67065
Currently 2 in stock.

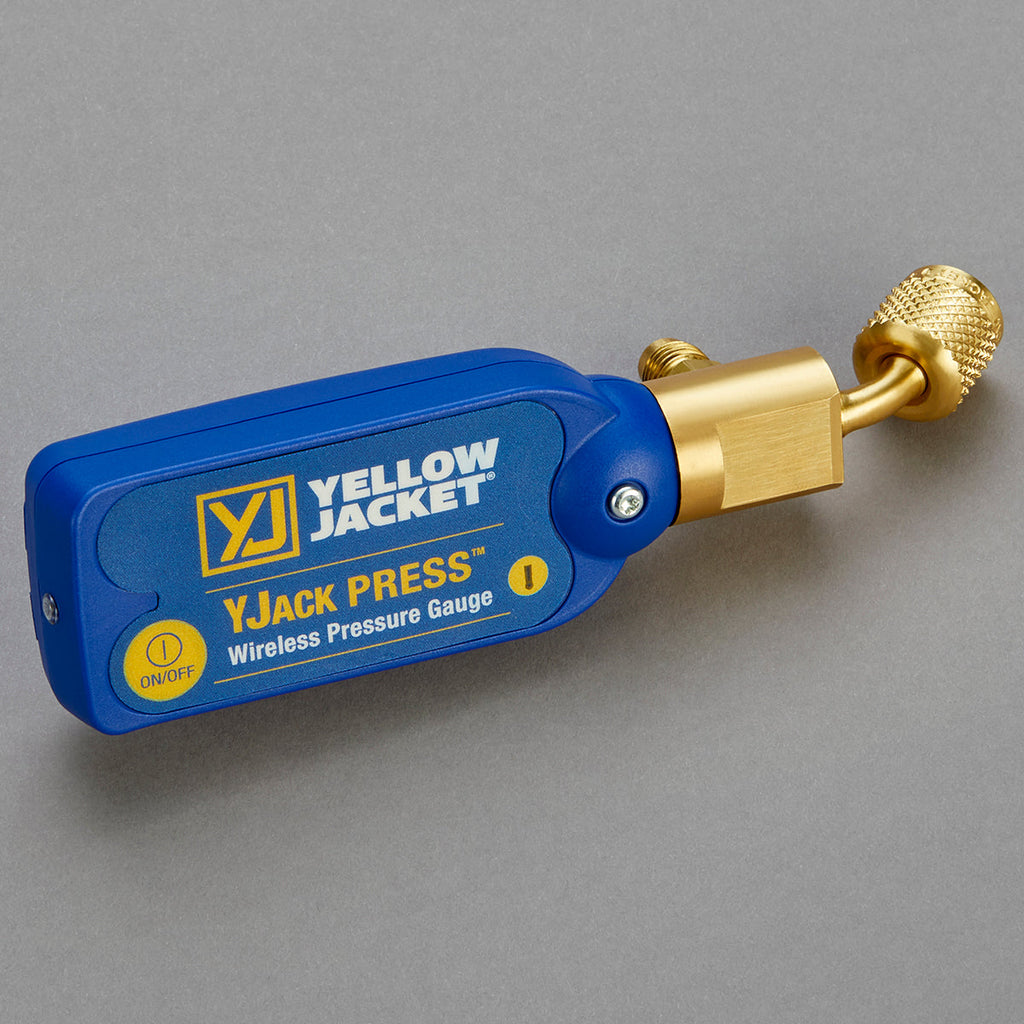

Yellow Jacket 67065 YJACK PRESS™ Wireless Pressure Gauge


Take quick and easy system pressure measurements with the YJACK PRESS™ Wireless Pressure Gauge 67065 by YELLOW JACKET®. The compact size and 45° x 1/4” quick-coupler fitting offers versatile system attachment. Use the integrated charging port to easily adjust the system charge without removing the probes. View and analyze the system pressure readings from any smart device running the YJACK VIEW® app. Perform system leak and strength tests at up to 725 psig while logging and reporting the test data. Pair the YJACK PRESS™ with the YJACK® Wireless Temperature Clamp/Strap probes for even more system charge data and diagnostic information.

    • Wireless system pressure measurement up to 725 psig (50 bar)
    • 45° x  1/4” quick-coupler fitting for versatile system attachment
    • Integrated charging port to easily adjust refrigerant charge
    • Measure system pressure without losing refrigerant (no hoses and manifolds necessary)
    • Bluetooth® 4.2 compliant low energy radio
    • 400 ft line of sight signal range*
    • Compatible with YJACK VIEW® App
    • Working Pressure: -14.7 to 725 psig (-1.01 to 50 bar gauge)
    • Pressure Sensor Accuracy: 0.5% full scale at 77°F (25°C), 1.8% full scale from 0°F to 130°F (-18°C to 85°C)
    • Operating Temperature: 0°F to 130°F (-18°C to 55°C)
    • Storage Temperature: -40°F to 130°F (-40°C to 55°C)
    • 300+ hour battery life (2x AAA included)
    • 2-year warranty
    • Made in the USA


      YJACK™ Series Spec Sheet

      YJACK™ Quick Start Guide

      YJACK™ User Manual
