Yellow Jacket 61001 Hydrocarbon Charging Kit

SKU 61001
Currently 3 in stock.

Yellow Jacket 61001 Hydrocarbon Charging Kit

Products usually ship within 1 business day.

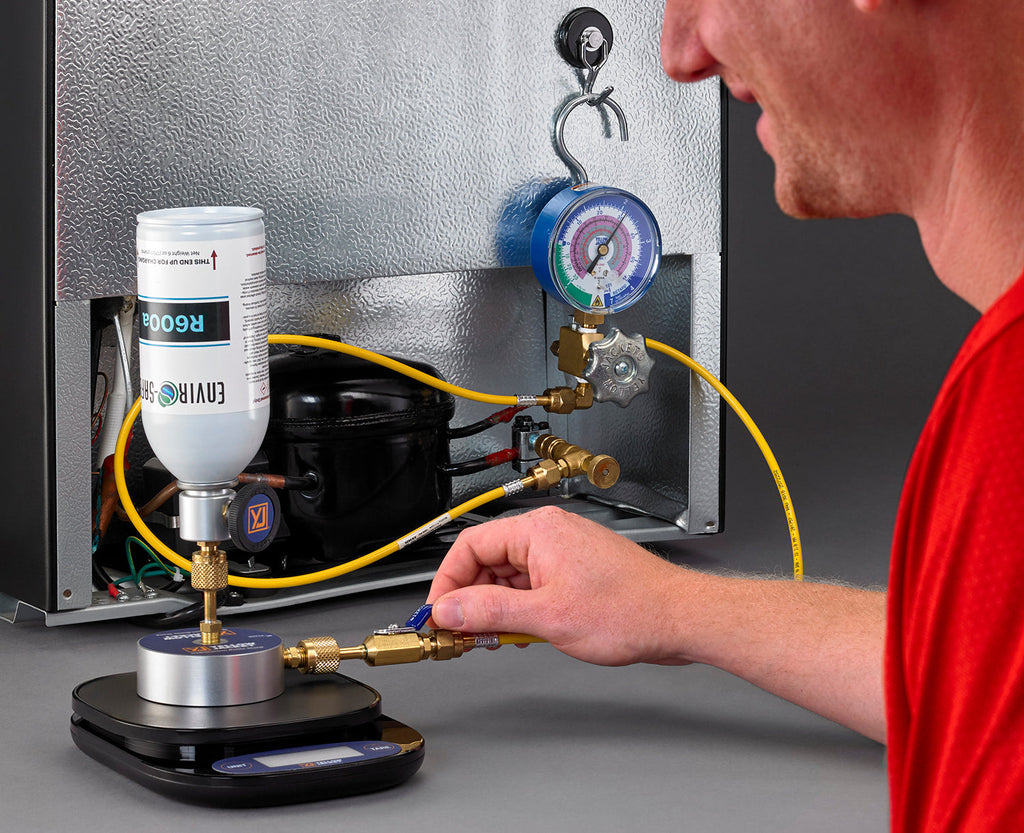

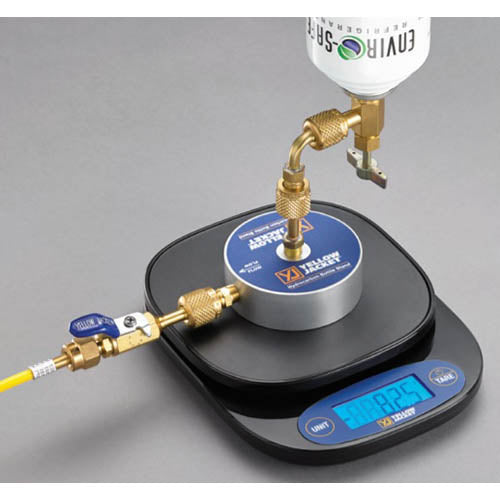

The bottle stand and high precision scale make it easy to accurately weigh the critical charge required for these systems.

The YELLOW JACKET® Hydrocarbon Charging Kit provides all the necessary tools to charge R-290 (propane) and R-600a (isobutane) hydrocarbon systems safely and effectively. The single valve manifold and small ID hoses allow for effective system pressure measurement while minimizing the impact on the system charge. The bottle valve and adapters offer compatibility with a variety of R-290 and R-600a refrigerant bottles.


There are many different refrigerant bottle styles in the market for R-290 and R-600a. With that in mind, the YELLOW JACKET® Hydrocarbon Charging Kit has been designed to support these various bottle configurations. The 61008 Hydrocarbon Bottle Valve works with most self-sealing 7/16” threaded bottle connections. When working with 1” threaded bottle connections, the 61009 Hydrocarbon Bottle Adapter can be used. The 19201 90° Quick Coupler even provides the ability to attach puncture-style and other right-angle bottle valves for accurate liquid charging.



  • Compact charging scale provides 0.05 g (0.01 oz) resolution for
    accurate charging
  • Bottle stand offers stability for liquid charging with inverted
    refrigerant bottles
  • Single valve manifold with 0.08” (2mm) ID x 24” REFFLEX® hoses
  • Bottle valve for 7/16” threaded bottles
  • Bottle adapter for 1” threaded bottles
  • 90° quick-coupler fitting for compatibility with piercing and other
    right-angle bottle valves
  • Line tap valve for system connection to 1/4”, 5/16” or 3/8” process lines
  • Vice grip pinch-off tool for crimping process tube after service is completed
  • Safety placard provides visual warning of flammability risk during service
  • Rugged case to protect the equipment when not in use
  • One-year warranty
  • Made in USA


Overall Kit

  • Compatible Refrigerants: R-290 and R-600a
  • System Connections: 1/4”, 5/16”, 3/8” OD Tubing
  • Operating Temperature: 0° to 130°F (-18° to 55°C)
  • Operating Pressure: 0° to 130°F (-18° to 55°C)
  • Bottle Compatibility: Valve and adapter work with most 7/16” and
    1” threaded bottle connections. The 19201 90° Quick Coupler allows for connection of piercing-type and other right-angle bottle valves.

Charging Scale

  • Capacity: 13.22 lb (6 kg)
  • Accuracy: 0.1%
  • Units of Measure: Grams (g), Pounds (lb), Pounds & Ounces (lb/oz),
    Ounces (oz), Milliliters (ml)
  • Resolution: 0.01 oz (0.05 g)
  • Overload Protection: Yes
  • Power: (3) AAA Batteries (included)
  • Battery Life: 50+ hours
  • Auto-Off Timer: 2 minutes after last reading change

Hydrocarbon Single Valve Manifold

  • Pressure Range: -14.7 to 101 psi (-1 to 7 bar)
  • Refrigerants: R-290 and R-600a (saturation temperatures in °F and °C)
  • Hose Length: 24” (610 mm)

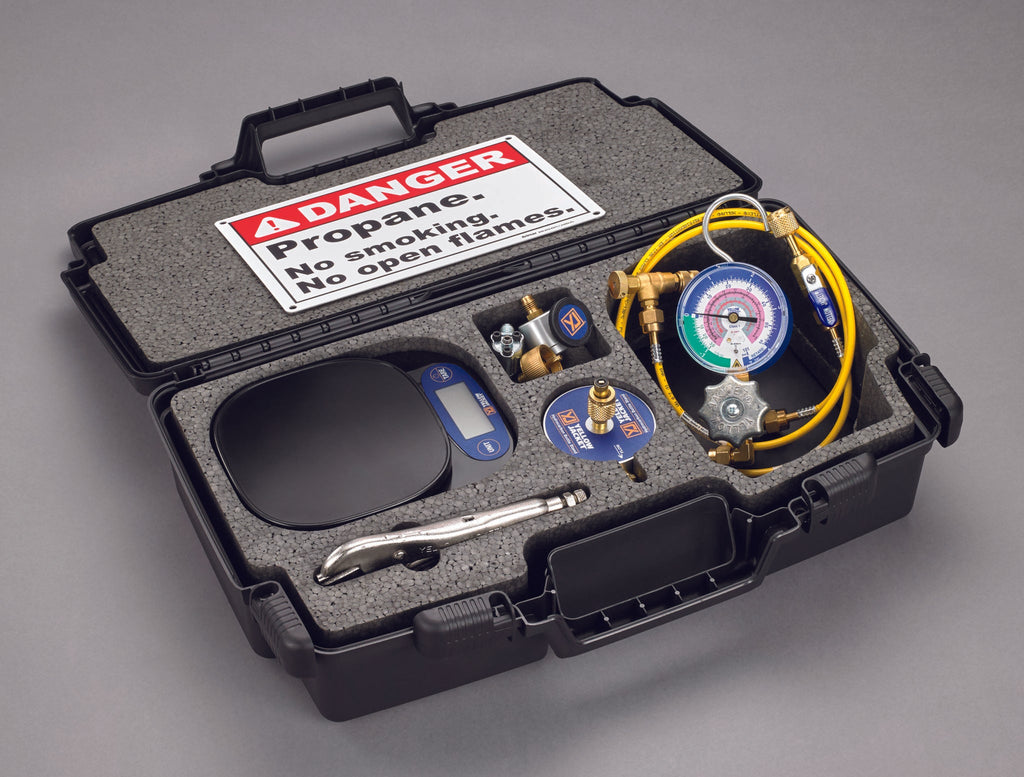

*Bottles requiring piercing-style valves can be used with the kit but require the corresponding valve to be purchased with the bottle(s). (Demonstrated in Picture 3)
