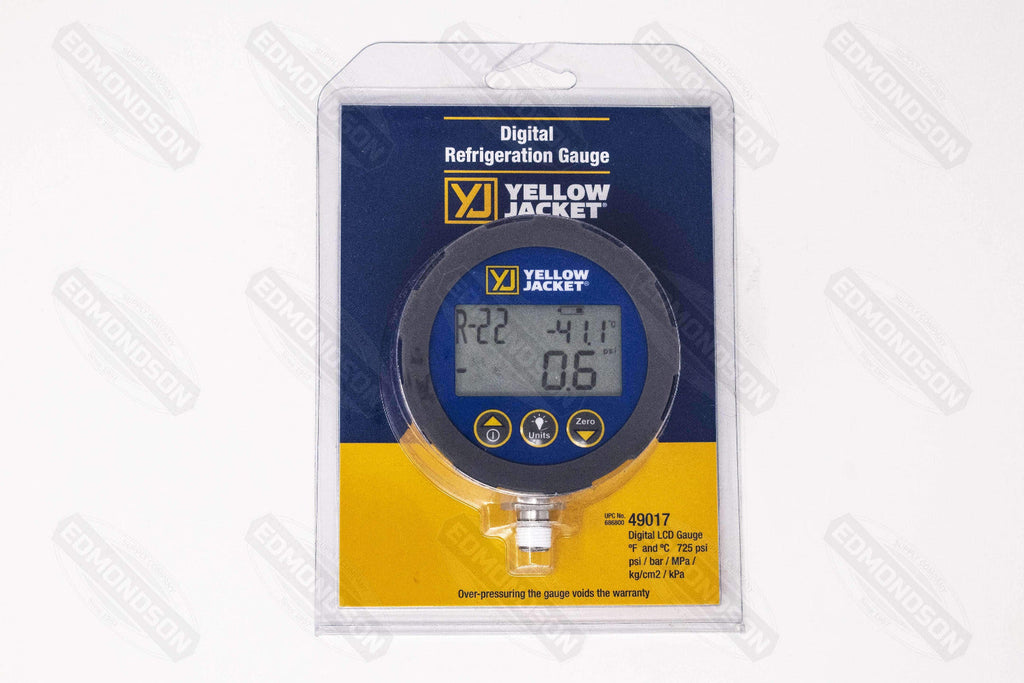

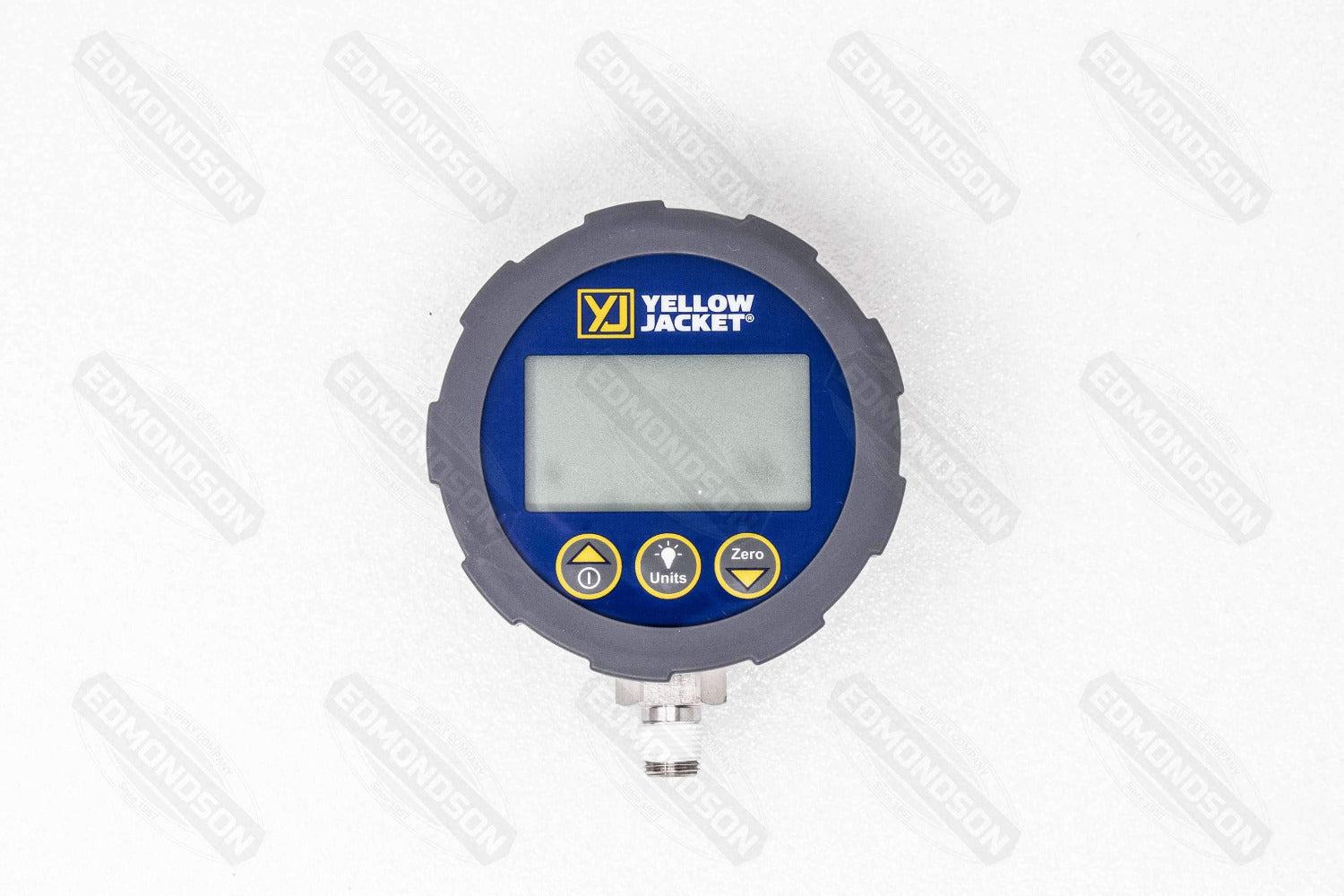

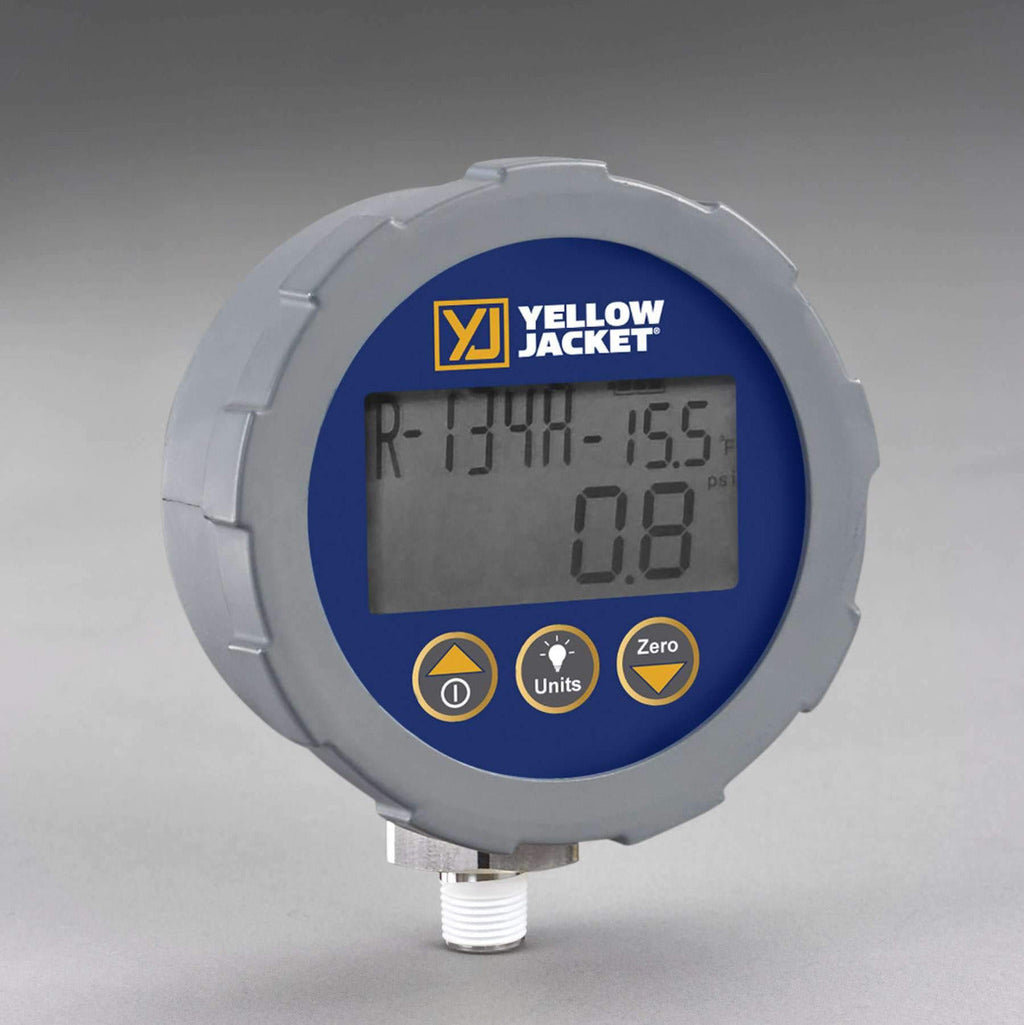

Yellow Jacket 49017 Series 41 Digital Manifold Replacement Gauge

Products usually ship in 1 business day.

3-1/8” backlit LCD gauges provide easy-to-read accurate measurements for system pressures. This gauge is capable of handling maximum pressures of 800 psi, so there are no worries about over-pressurizing. Pre-programmed with 21 of the most common refrigerants, the YELLOW JACKET Digital gauges will provide clear, swift and accurate pressure measurements for all your system applications.

Gauge Specifications

• Pressure Range: -14.7 ~ 800 psi (-1 ~ 54.4 bar)

• Unit (Pressure): psi / bar / MPa / kg/cm2 / kPa
• Working Temperature: 14℉ ~ 140℉ (-10℃ ~ 60℃)
• Pressure Accuracy: ±0.5% F.S @71.6~82.4℉ (@22~28℃)
• Unit (Temperature): ℉/℃
• Working Humidity:35~85%
• Sampling Rate = 1.2 sec max.
• Auto-off: 10 minutes
• Zero pressure function
• Power Supply: Battery CR123A (3.0V, 1400mAh)
• Battery Life: 2 years for continuous operation
  without backlight
• Warranty: one year

Refrigerants

R-22, R-23, R-32, R-124, R-134A, R-290, R-404A, R-407C, R-407F, R-408A, R-410A, R-417A, R-427A, R-444B, R-448A, R-449A, R-452A, R-507, R-600, R-1234YF, R1270
