Description

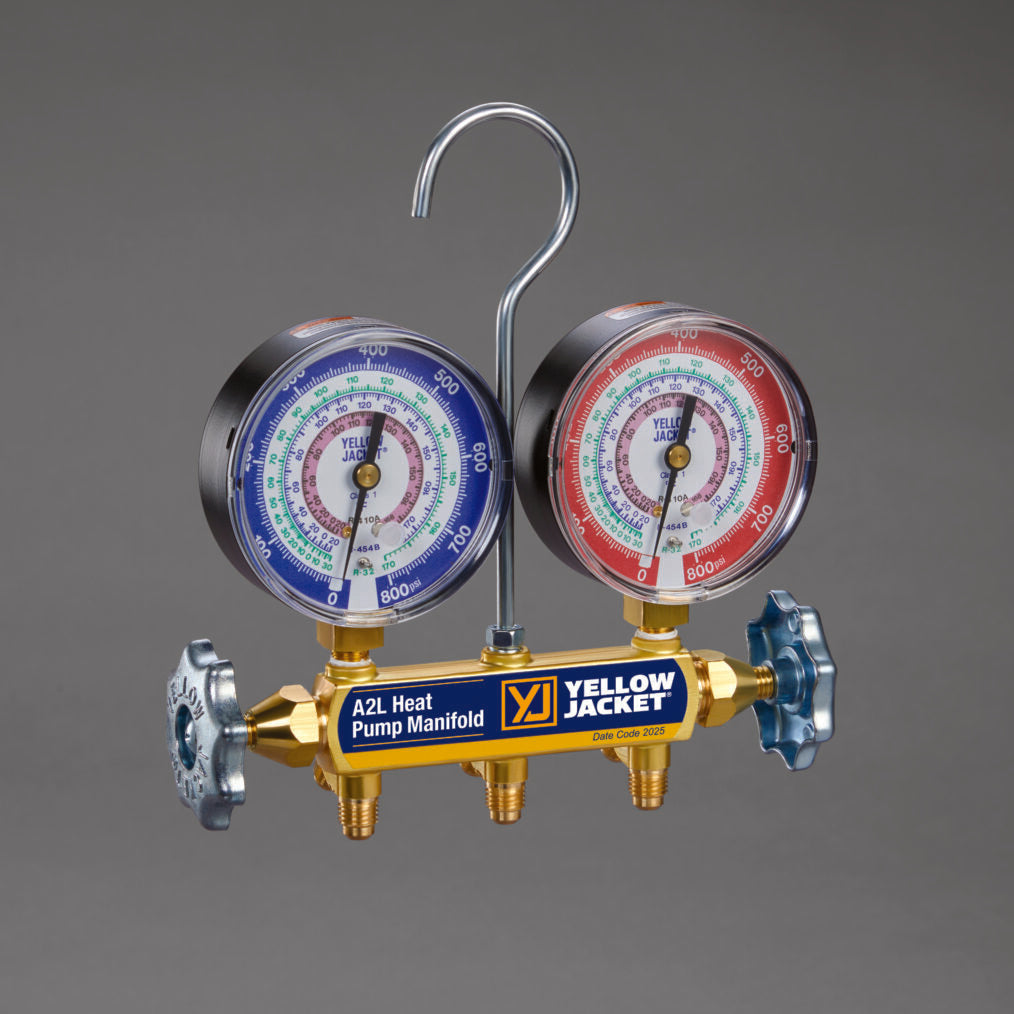

Yellow Jacket 42045 A2L Heat Pump Manifold Only, R-32/454B/410A, °F
The YELLOW JACKET® A2L Heat Pump Manifold features two 800 psi gauges to read all heat pump pressure conditions. Traditional low-side manifold gauges can be susceptible to damage when heat pumps go into heating mode. Because the low-side gauge of the YELLOW JACKET® A2L Heat Pump is also designed for pressures up to 800 psi, it can read the pressure whether the pump is in heating mode, cooling mode or transition
- Large 3-1/8″ gauges feature steel cases with polycarbonate crystal
- High- and low-side gauges read up to 800 psi
- Color-coded scales – larger dials are bold and easy to read
- Dials with 1% accuracy (Class 1) full scale movement provide the level of accuracy necessary for critical charge systems
- Proven sliding double “O”-ring pistons reduce wear
- Long life nylon seats
- Forged brass body for durability
- Full porting maximizes capacity and flow
- Full-size metal valve handles for easy operation
- Hose assemblies UL recognized for 4000 psi (275 bar) burst and 800 psi (55 bar) working pressure (File# SA9737)
- Made in USA
