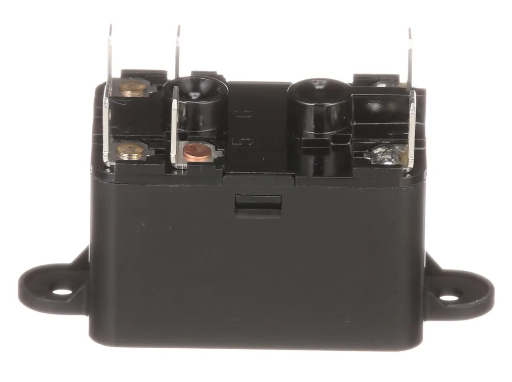

Copeland White Rodgers 90-370 Switching Fan Relay SPDT



Heavy-Duty General Purpose Relay Operates in Any Position

Features:

• Compact, totally enclosed design
• For heating and cooling applications and general switching
• Quiet, reliable and economical



Specifications:

Coil Resistance [ohm]:	77
Coil Voltage:	24 Vac, 50/60Hz
	85% - 110% of nominal coil voltage
Country of Origin:	CN
Duty Cycle:	(Coil) Continuous
Electrical Connection:	1/4" Quick Connect
Electrical Rating, Current [A]:	[Coil] 125 mA Nominal
HTS:	8536.41.0050
Insulation, Temperature Rating [°C]:	[Coil] Class B
Model Number:	90-370
Power Consumption [VA]:	(Coil) 3VA Nominal
	4VA Inrush
Resistance [ohm]:	77
Switch Action:	Open/Close on Rise
Switch Type:	SPDT
MSDS Required:	No
Product Depth/Width (in):	2.67"
Product Height (in):	1.5"
Product Length (in):	1.27"
