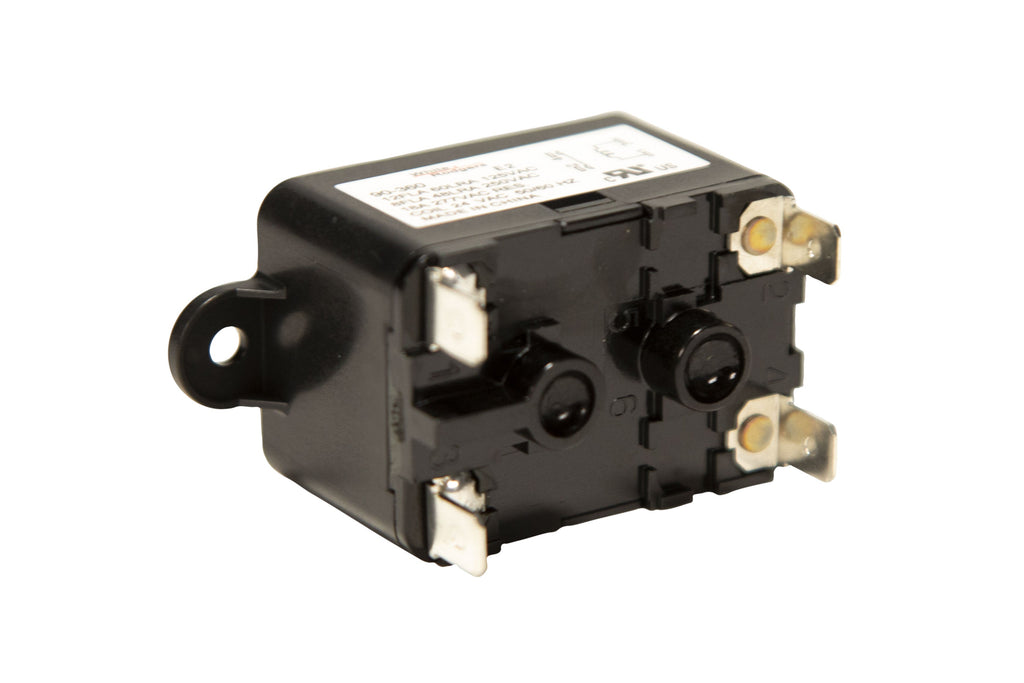

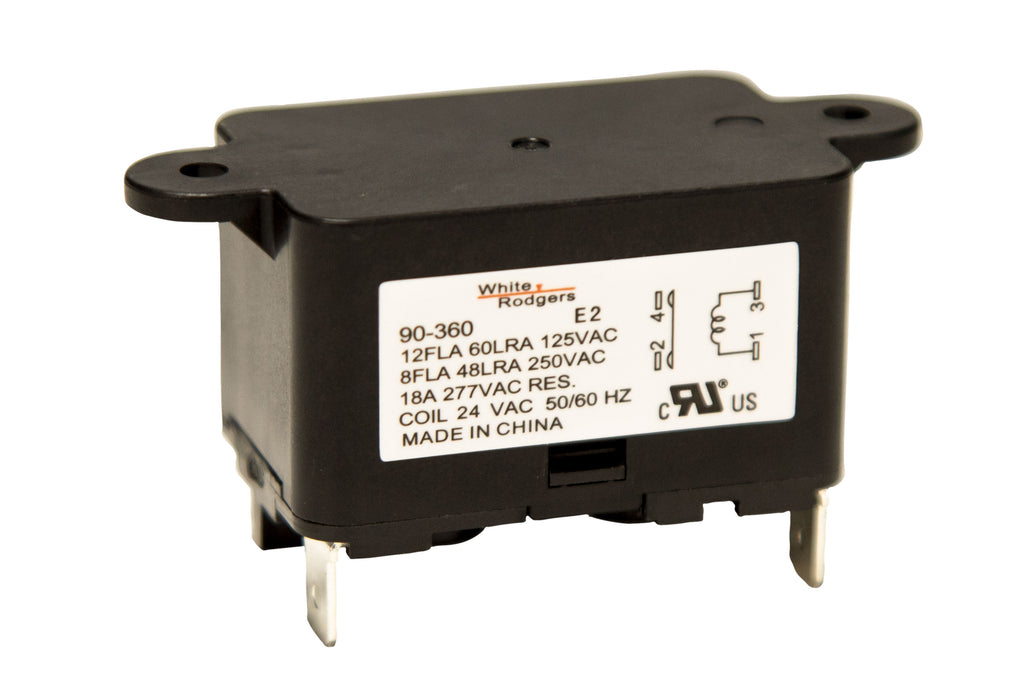

White Rodgers 90-360 Switching Fan Relay, SPST-NO, 24V

Heavy-Duty General Purpose Relay Operates in Any Position

• Compact, totally enclosed design
• For heating and cooling applications and general switching
• Quiet, reliable and economical



SPECIFICATIONS

Switch Action:	SPNO
Coil Voltage:	24 Vac, 50/60 Hz
Res DC OHMS:	77
Coil Data Nom. Current MA:	125
Coil Data Nominal VA Sealed:	3
Electrical:	Inrush 4 VA
Coils|Insulation:	Class B
Coils, Termination:	1/4” Quick Connect
Coils, Operate:	85% of nominal coil voltage; 110% maximum safe operate
Coils, Duty Cycle:	Continuous
