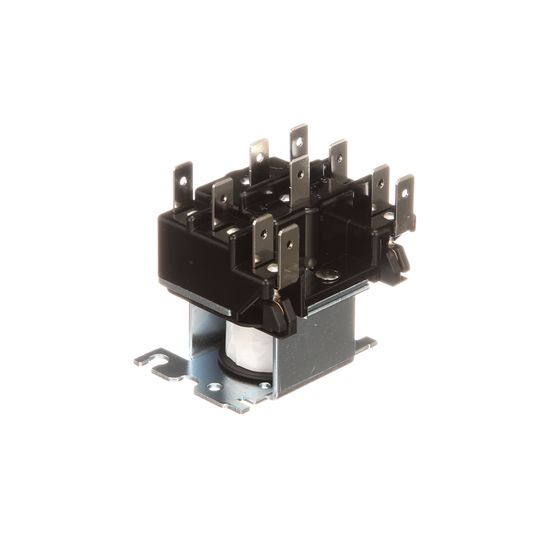

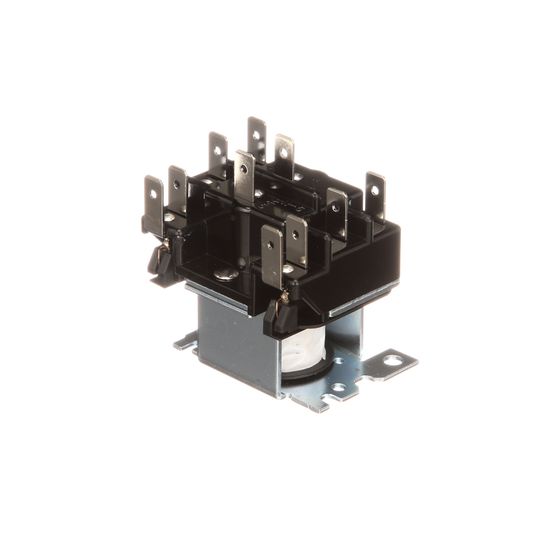

White Rodgers 90-340 Switching Fan Relay, DPDT, 24V
Save 59%
Original price
$22.85
Current price
$9.28
SKU 90-340
White Rodgers 90-340 Switching Fan Relay, DPDT, 24V
A Two Pole Double Throw Semi-Enclosed Relay 90-340 Fits Fan Control Centers 90-112, 90-113, 90-118E and 90-119
- Suited for use in vending machines, appliances, heating and air conditioning applications and general purpose switching
SPECIFICATIONS
| Coil Voltage: |
24 Vac, 50/60 Hz |
| Terminals 1-2-3: | Power |
| Terminals 4-5-6: | |
| Coil Data: | 17.5 D.C. Res., 334 mA, 9.5 Nominal VA, 22 Inrush VA |
| Coils, Operate: | 85% of nominal coil voltage; 110% maximum safe operate |
| Coils, Duty Cycle: | Continuous |
| Approvals: | U.L. file number E12139C.S.A. file number LR13360 |
