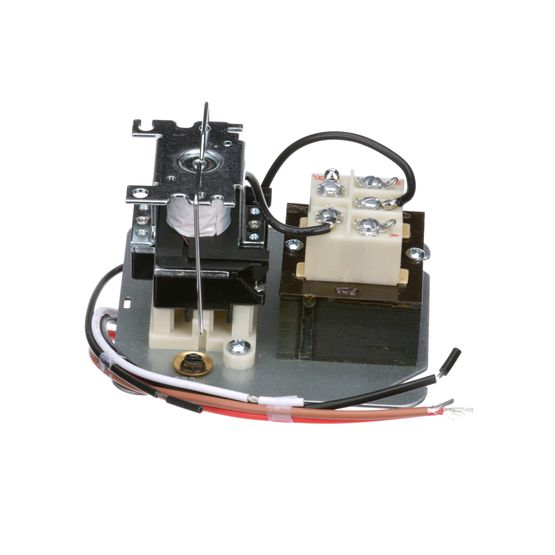

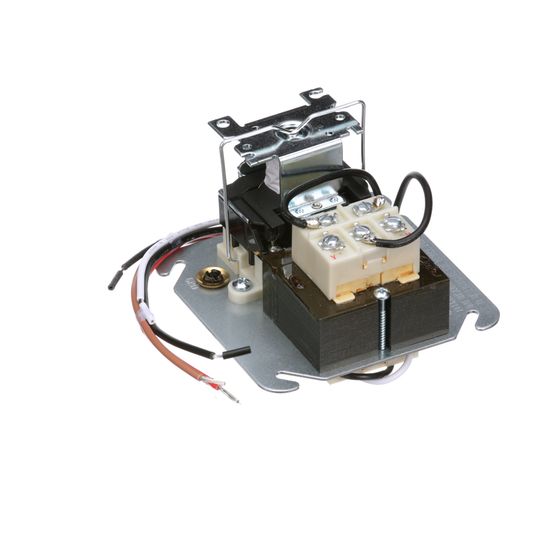

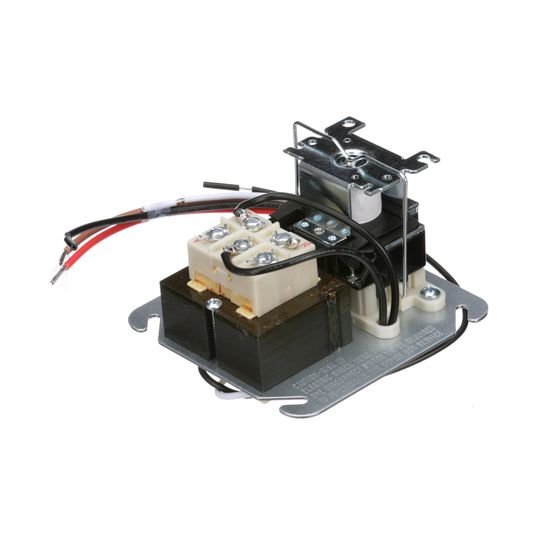

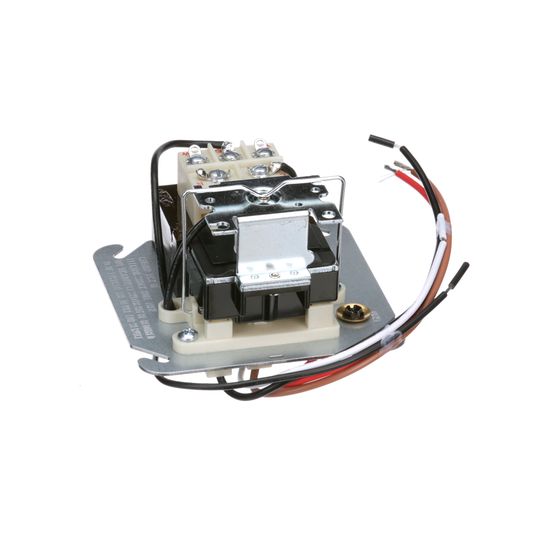

White Rodgers 90-113 Fan Control Center, SPDT (120V Primary, 24V Secondary)
Save 59%
Original price
$78.37
Current price
$31.84
SKU 90-113
White Rodgers 90-113 Fan Control Center, SPDT (120V Primary, 24V Secondary)
Transformer and Relay Combination for Easy Installation on a 4”x 4”Junction Box
- Line voltage connections pre-wired
- Energy limiting Class II transformer design
- Color coded pre-stripped leads
- Low voltage connections on terminal board
SPECIFICATIONS
| Primary Voltage: |
120 Vac, 60 Hz |
| Connectors: | Color coded leads, pre-stripped |
| Connectors: | Terminal board with 5 screw terminals |
| Relay: | SPDT |
| Contact Rating: | 13.8 FLA, 82.8 LRA at 120 Vac, 6.9 FLA, 41.4 LRA at 240 Vac |
| Approvals: | U.L. file fan center E73641 |
