White-Rodgers 50F06-843 Furnace Electronic Fan Timer Control Board, Universal Replacement

Save 56%
Original price $259.17
Current price $113.39
SKU 50F06-843
Currently 22 in stock.

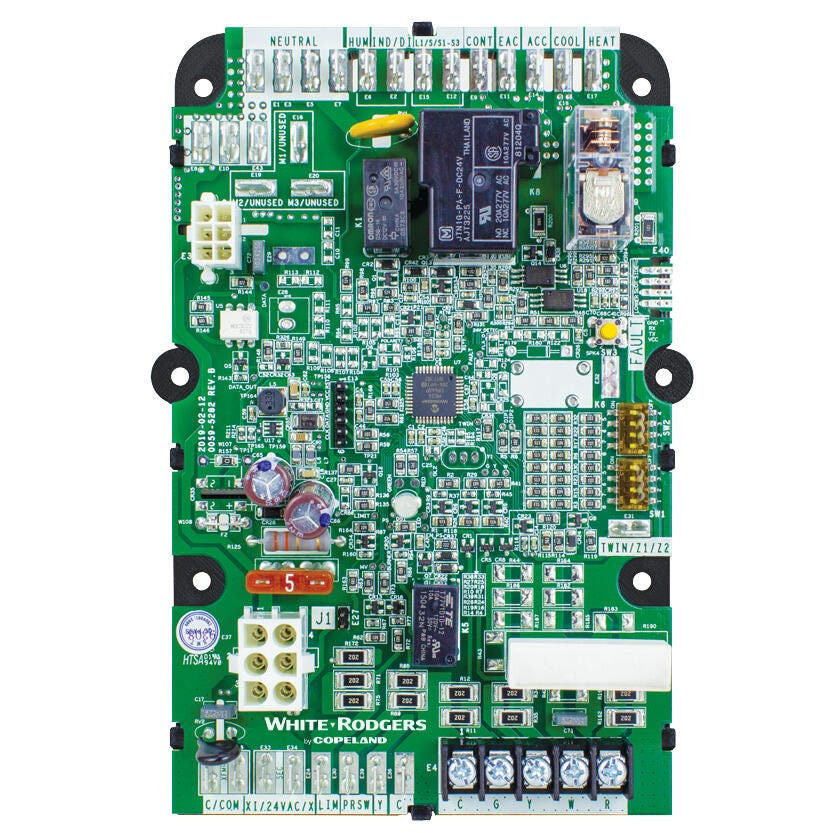

White-Rodgers 50F06-843 Furnace Electronic Fan Timer Control Board, Universal Replacement

Universal Electronic Fan Timer for non-integrated single stage furnaces

  • Universal Furnace Electronic Fan Timer control for single stage furnaces with PSC inducer and blower motors
  • Works with non-integrated furnace controls or intelligent gas valves
  • Six mounting hole options

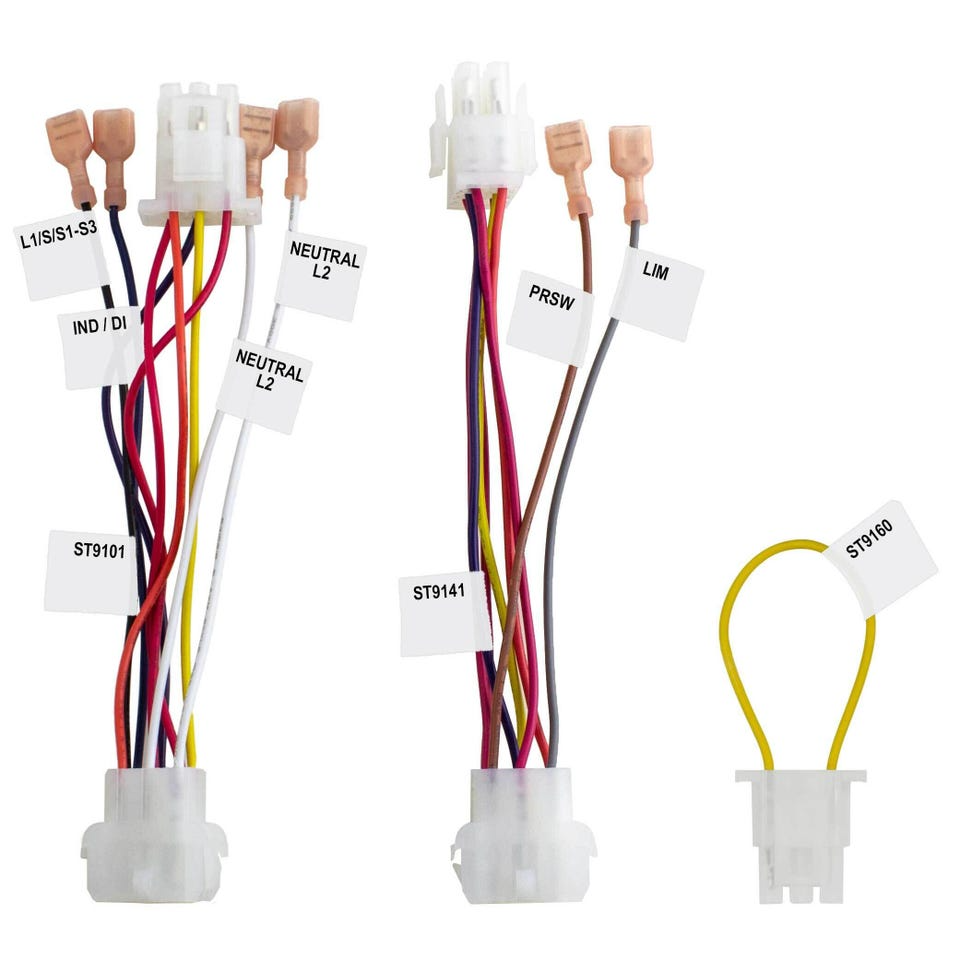

  • Harnesses with terminal flags for easy wiring
  • Terminals are labeled to match multiple existing boards
  • Transformer connections offer 1/4” and 3/16” terminals
  • Tri-Color LED displays status and fault codes
  • Exclusive fault recall button



Data Sheet

Installation Instructions



Specifications

Input Low Voltage: 25 VAC 60 Hz
Input Line Voltage: 115/230 VAC 60 Hz
Max Input Current: 800mA @ 25 VAC
Operating Temperature Range: -40 to 175°F (-40 to 80°C)
Dimensions: 5.0"W x 7.0"L x 1.50"D





Cross Reference

Honeywell:
ST9101A1006, ST9101A1014, ST9101A1022, ST9120A1006, ST9120A2004, ST9120B1005, ST9120C1012, ST9120C1020, ST9120C2002, ST9120C2010, ST9120C2028, ST9120C3000, ST9120C3018, ST9120C4008, ST9120C4016, ST9120C4040, ST9120C4057, ST9120C5005, ST9120C5013, ST9120D3009, ST9120G2008, ST9120G2016, ST9120G2024, ST9120G2032, ST9120G4004, ST9120G4012, ST9120G4038, ST9120U1003, ST9120U1011, ST9141A1002, ST9141A1028, ST9141B1001, ST9150A1003, ST9150B2000, ST9150B2018, ST9150B2026, ST9150B2034, ST9160A1002, ST9160B1001, ST9160B1019, ST9160B1027, ST9160B1035, ST9160B1043, ST9160B1050, ST9160B1068, ST9160B1076, ST9160B1084, ST9160C1000, ST9160C1018
Carrier / Bryant: CAR20054502
Consolidated Ind.: 406650
Goodman / Amana / Janitrol:
B180911, B18099-11, B1809911S, CARB1809911, CARL38267
ICM: ICM270, AC1015
Lennox / Armstrong / Ducane / Excel: 45392-001, 20054501, 20054502, 2043081, 20430801, 40403001, 40403-001, 40403002, 40403-002, 40403003, 40403-003, 45392001, 45692001, 384938001, 1138-100, 1138-83-1002A, 28M901, 28M99, 28M9901, 384938-001, 400B0091, 45692-001, 87H88, 87H8801, R40403001, R40403-001, R40403002, R40403-002, R40403003, R40403-003, R45392001, R45392-001, R45692001, R45692-001, X8609, X860901
Rheem / RUUD Brands: 47-22693-01, 47-22693-02, 47-22827-01, 47-22827-02, 47-22827-03, 47-22827-81, 47-22827-82, 47-22827-83, 47-22828-01, 47-22828-02, 47-22830-01, 47-22830-02
Robertshaw: 695-003
ICP / Arcoaire / Comfortmaker / Heil / Tempstar: 1008773, 1008786, 1009836, 1009837, 1009838, 1010031, 1011179, 1011543, 1011927, 1012106, 1012358, 1014460, 1084197, 1150489, 1160192, 1170063, 1138-83-200A, 1138-200, HQ1008773HW, HQ1008786HW, HQ1009836HW, HQ1009837HW, HQ1009838HW, HQ1010031HW, HQ1011179HW, HQ1011543HW, HQ1011927HW, HQ1012106HW, HQ1012358HW, HQ1084197HW, HQ1170063HW
JCI / York / Coleman / Evcon: 2702-300, 2702-300P, 3101237000, 3102959000, 33101237000, 025-32816-000, 026-32254-000, 026-34030-000, 031-01237-000, 031-02959-000, 1138-103, 2895-3001, 331-01237-000, S1-02532816000, S1-0263403000, S1-03101237000, S1-031-01237-000, S1-03102959000, S1-031-02959-000, S12702-300P, S1-33101237000, S1-331-01237-000
Weil-McLain: 4116000
