White-Rodgers 50E47U-843 Universal Hot Surface Ignition Module

Save 56%
$402.40
$176.05
SKU 50E47U-843
Currently 10 in stock.

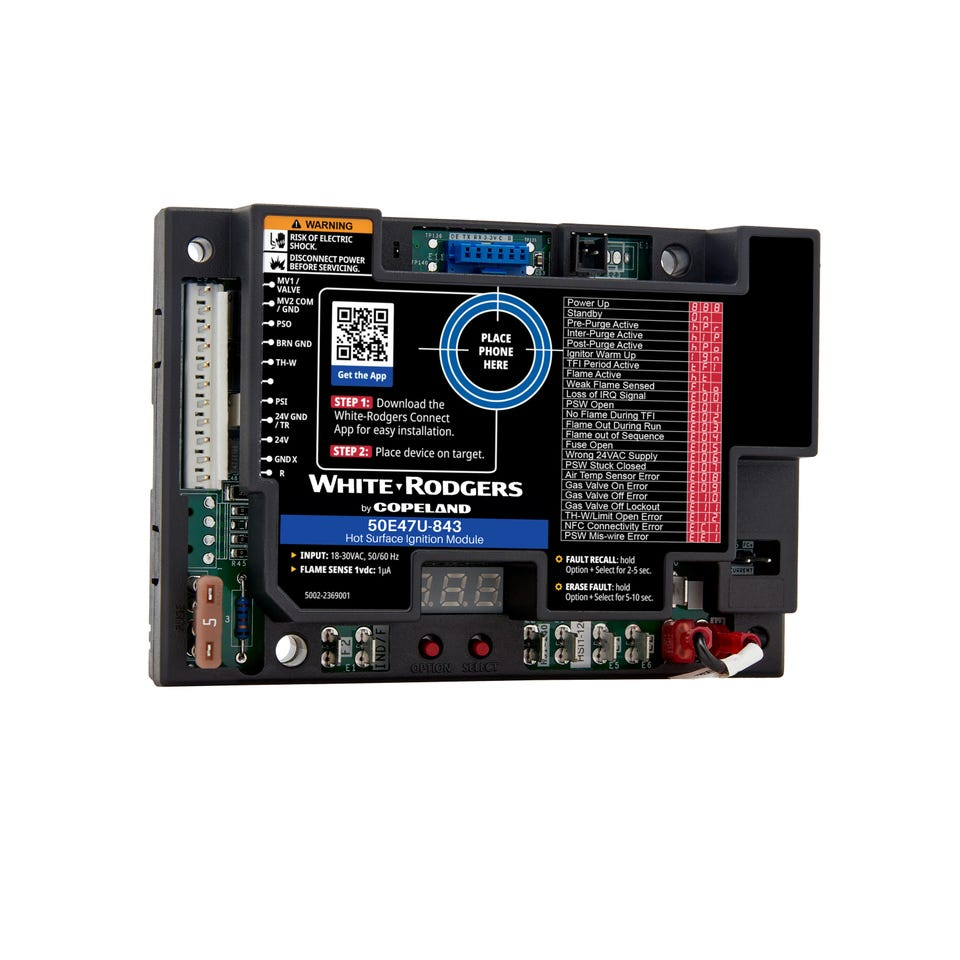

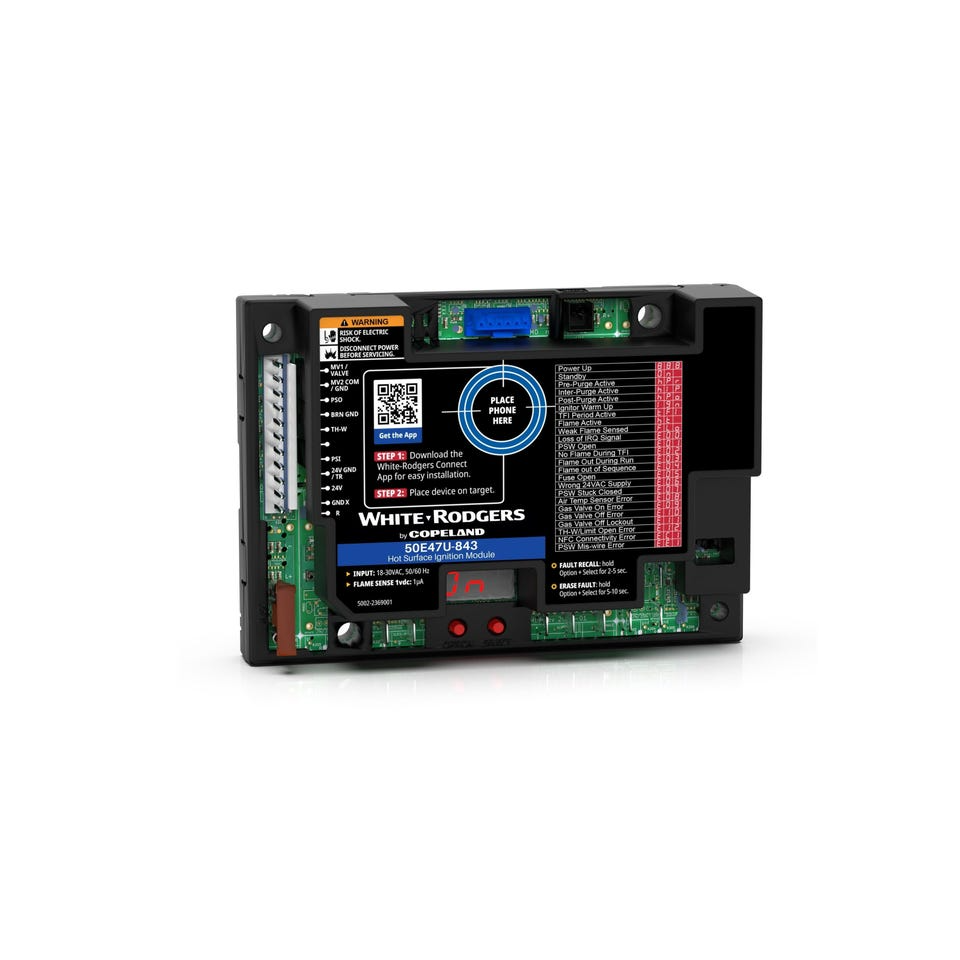

White-Rodgers 50E47U-843 Universal Hot Surface Ignition Module

Universal hot surface ignition module. Designed to replace 24V, 120V or 240V non-integrated Hot Surface Ignition (HSI) modules in a wide variety of heating applications. Replaces hundreds of part numbers including Fenwall, Honeywell, UTEC, ICM and Robertshaw.

  • Compatible with 24V, 120V and 240V ignitors
  • Universal replacement for Fenwal, Honeywell, UTEC, ICM, White-Rodgers, and Robertshaw
  • Energizes an inducer motor and monitors a pressure switch
  • Use with the White-Rodgers Connect app to simplify configuration without power, prior to install
  • See operation status, diagnostics and real time flame current with the on-board digital display which also provides alternate configuration,

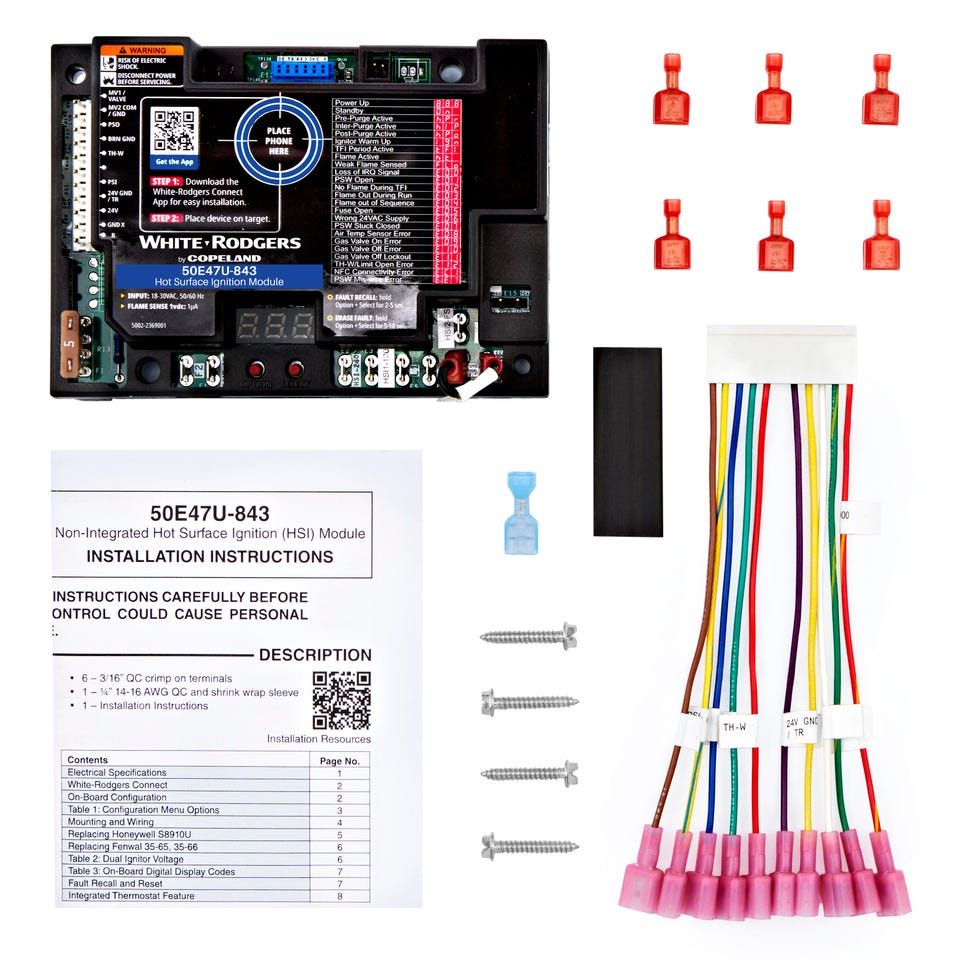

  • Easy-install harness converts old board wiring
  • Use F67-8535 (sold separately) to maintain temperature without an external thermostat in infrared and tube heaters



Data Sheet

Installation Instructions



Specifications

Voltage:  18-30 Vac 50/60 Hz
Voltage (Line): 24*, 120 or 240* Vac (*24Vac or 240Vac input only applicable when replacing Fenwal modules)
Temperature Range Ambient Operating: -40 degrees to 176 degrees F (-40 degrees to 78 degrees C)
Humidity Range: 5% to 95% relative humidity (non-condensing)
Certifications: CSA (Canada & US)



Cross Reference

Baso:
 Series: BGH
Blodgett:
 30851, R5925, 41802
Carrier: 1001346, 1380694
Cleveland: KE53469-5, KE53469-7
Fenwal: Series: 35-65, 35-66
Goodman: C6411102, B1370726
Groen: 162283, 155489
Honeywell/Redideo:

Series: S890C, D, G, H

Series: S8910U

Series: S89C, D, G, H, J
ICM: ICM283
LBC Bakery: 80300-18, 80300-20
Polaris: 100093697, 100093696, 6907309
Robertshaw:

Series: 780-780, -784, -785, -786, -787, -788, -789, -790

Series: 832-000, -005

Series: HS780-17NL, -17NR, -17PL, -17PR, -34NL, -34NR, -34PL, -34PR
Southland Range: 1175723, 9024-2
Trane: CNT1316, 1690, 1691, X13130193-04, 437-01, 437-03, X13130437010, 0720, 7030, 7040, 7060, 7080
UTEC: 1018-525, 1018-504, 624-421-B, 1018-524, 1018-500, 1018-501, 120-09298C
Whirlpool: 99796380, 99905232
White-Rodgers: Series: 50E47, 50D47, 50G47
York: 025-25436-000, 025-25436-700, S1-1474-0061/A, S1-1474-0041
