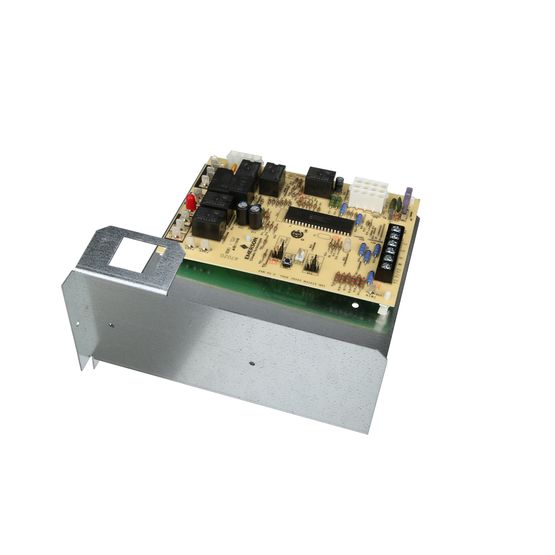

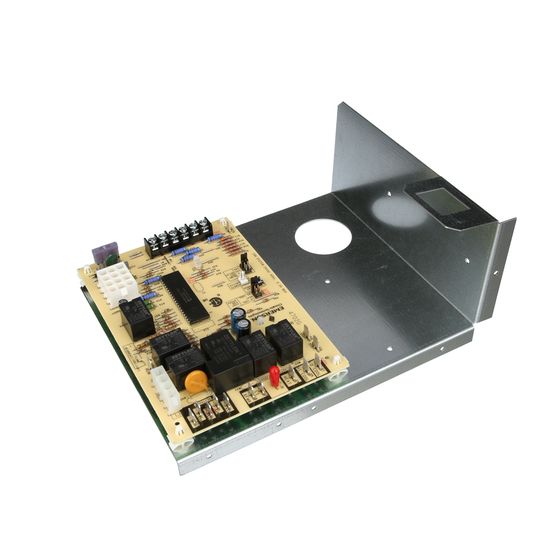

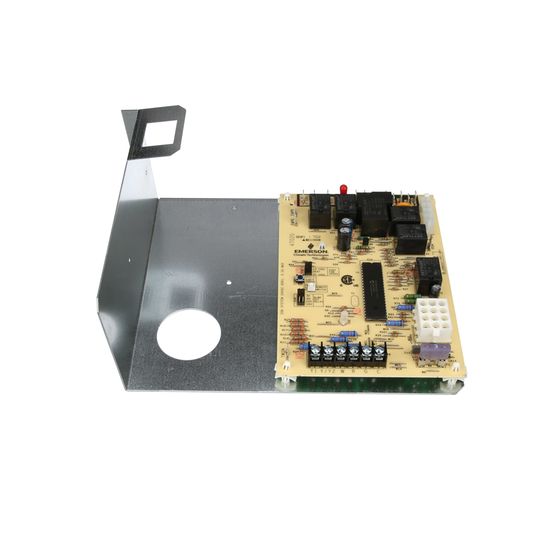

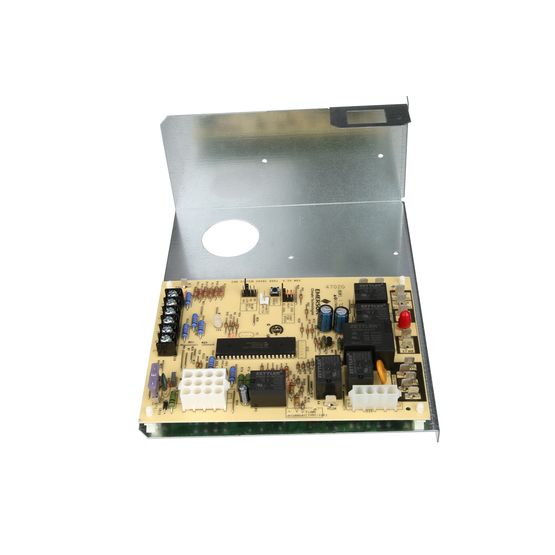

White-Rodgers 50A56-956 Integrated Furnace Control Board, Replacement for York
Save 56%
Original price
$219.01
Current price
$95.82
SKU 50A56-956
White-Rodgers 50A56-956 Integrated Furnace Control Board, Replacement for York
50A56-956 simplifies installation and ensures peak system performance.
Easy-Install Kit includes everything you need for quick and accurate replacement:
- Ignition Control Module
- Installation Instructions and OEM Cross-Reference
- Replacement Control Box
Features:
- Selectable Continuous Fan Speed
- System Diagnostics LED with Fault Recall
- Twin
- Third Fan Speed
- Two-Stage Cooling Y2 Input
- 120 VAC Ignitor Output
- 120 VAC Humidifier Output
- 120 VAC Electronic Air Cleaner Output
- Fuse Protection - 5 Amp
- Heat Fan OFF Delay (Dipswitch Selectable)
- Y, Y2, W, R, G, C, TWIN Terminals
Specifications
|
Family Brands of Equipment |
York |
| Stages | Single Stage |
| Ignition Type | 14.5 FLA - 25.0 LRA @ 120 Vac |
| Ignitor Voltage | 120 VAC |
| Inducer Motor/Blower Motor | PSC/PSC |
| Blower Motor | Speed Taps: Heat, Lo Cool, Hi Cool |
| Thermostat Inputs | R, C, W, Y1, Y/Y2, G |
| Twinning | Yes |
| Communicating System | No |
| Mounting Options | Standoff or steel mounting bracket (supplied) |
Cross Reference
| York: | 265901, 265902, 539617, S1-03100662000, S1-03101250000, S1-03101266000, S1-03101267000, S1-03101267001, S1-03101284000, S1-03101933000, S1-03101972000, S1-03101973000, S1-03109167000, S1-33102956000, S1-33103010000 |
| ICM: | ICM2808 |
| White-Rodgers: | 50A56-242, 50A56-243, 50A56-956 |
