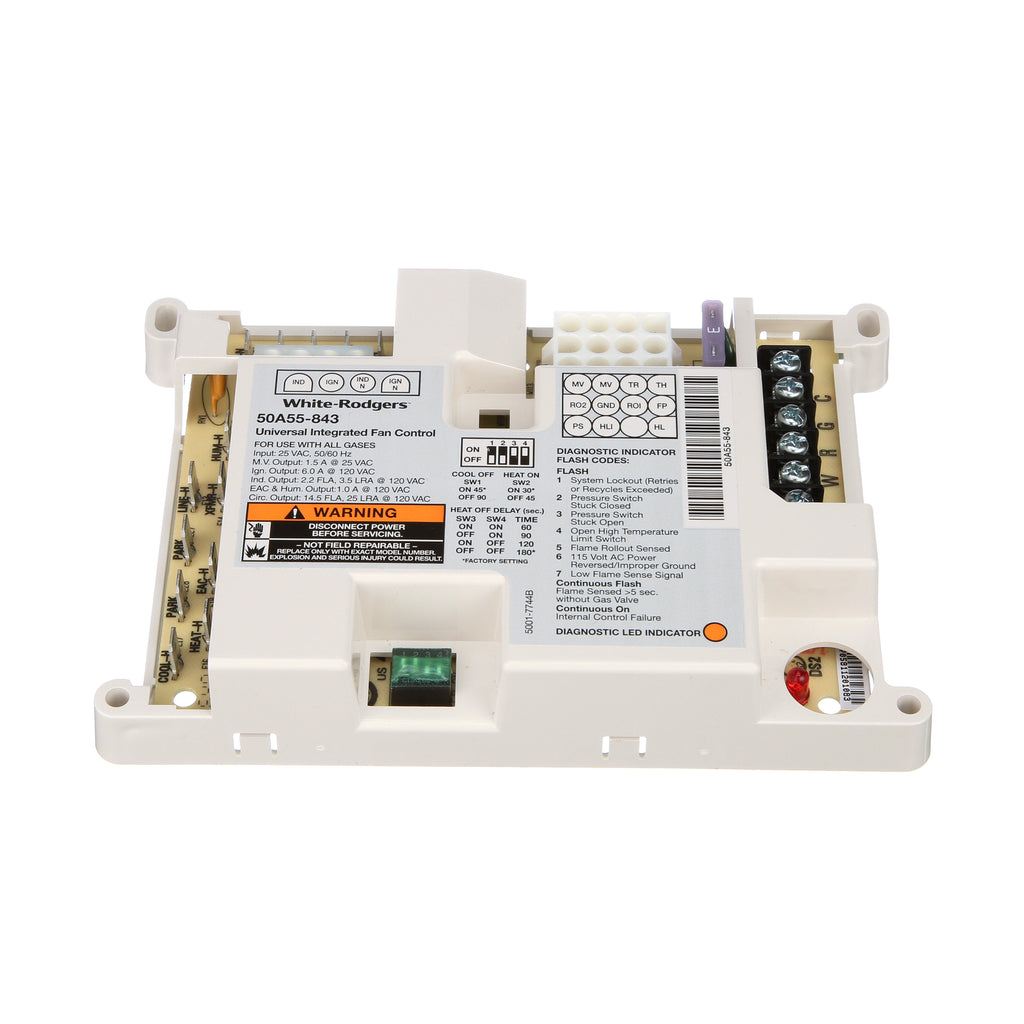

Copeland White-Rodgers 50A55-843 Integrated Furnace Control Board, Universal Replacement
Save 56%
Original price
$351.97
Current price
$153.99
SKU 50A55-843
Copeland White-Rodgers 50A55-843 Integrated Furnace Control Board, Universal Replacement
Features
- Reduces inventory by providing maximum control replacement coverage
- Diagnostic LED indicators streamline installation and system troubleshooting
- 120V air cleaner output and 120V humidifier output up to 1 Amp max
- Factory standard safety timings and adjustable fan delay options
- Replaceable automotive style fuse
- Additional jumpers to extend the length of the connections
Specifications
| Ambient Operating Humidity | 5 to 93% RH |
|---|---|
| Brand/Part Number Replaced | Carrier, Goodman, Lennox, Trane, York |
| California Prop 65 Cancer or Reproductive Harm | Yes |
| Certifications | c-CSA-us |
| Compatibility | Twinning |
| Connection | Thermostat Inputs R,C,W,Y,G |
| Electrical Rating | (Line Voltage Circuit) 120 Vac, 50/60Hz |
| (Low Voltage Circuit) 24 Vac, 50/60Hz | |
| Electrical Rating, Current [A] | (Circulator Relay) Full Load Amps (FLA) @ 120 Vac:(Circulator Relay) 14.5A |
| (Circulator Relay) Locked Rotor Amps (LRA) @ 120 Vac: 25.0A | |
| Ignition Type | HSI |
| Ignitor Voltage | 120 Vac |
| Inducer Motor/Blower Motor | PSC/PSC |
| Model Number | 50A55-843 |
| Mounting | Flush Mount |
| Operating Temperature Range [°F] | -40 to 175 |
| Replacement Type | Universal Replacement |
| Stages | Single Stage |
50A55-843 Installation Instructions
Cross Reference
| Climate Corp.: | 117284 |
|
Dayton/WW Grainger: |
3XA75, 4DG53, 4DG54, 4DG55, 4DG56 |
| Fedders: | 194300330001, 30757 |
| Goodman: | 102077-14, 10207719 |
| Goodman/Amana: | PCBBF117, 102077-02, 102077-03, 10207704, 102077-04, 10207706, 102077-06, 102077-09, 10207710, 102077-10, 10207714 |
| GW Berkheimer: | 75671, 75672 |
| HD Supply: | 78712, 83388 |
| Hughes Supply: | 084141 |
| ICP/Carrier: | 1010806, 1380686, 1380698, 1380699 |
| Johnstone Supply: | L38-798, L38-799, L38-800, L38-801 |
|
Lennox: |
12L4201, 56L8501, X4459, X445901 |
| Metropac: | 14028, 14029, 14030, 14031 |
| Thermo Products: | 350486 |
| Trane: | CNT02789, CNT02891, CNT03799, D341235P01, 50A55-3797, 50A55-474, 50A55-571 |
| Trane/American Standard: | CNT1684, CNT1686, CNT1687, D330927P01, D330930P01, D330934P01, D340035P01, D340774P01, D341235P02, X13120666010, X13130436-01, X13130436010, X13130436-02, X13130436-04, X13130436040, X13640678040, X13650597010, D341122P01, D341235P03, 50A55-476 |
|
Whirlpool: |
8068142, 8068561, 8068563, 99958174, 99958175 |
| White-Rodgers: | 50A50-110, 50A50-111, 50A50-112, 50A50-113, 50A50-130, 50A50-131, 50A50-142, 50A50-143, 50A50-205, 50A50-206, 50A50-207, 50A50-208, 50A50-209, 50A50-210, 50A50-215, 50A50-216, 50A50-229, 50A50-230, 50A50-240, 50A50-241, 50A50-245, 50A50-285, 50A50-286, 50A50-288, 50A50-295, 50A50-296, 50A50-298, 50A50-405, 50A50-406, 50A50-408, 50A50-438, 50A50-471, 50A50-472, 50A50-473, 50A50-474, 50A50-475, 50A50-571, 50A55-143, 50A55-241, 50A55-245, 50A55-250, 50A55-285, 50A55-286, 50A55-288, 50A55-438, 50A55-843 |
| York: | 013101250000, 031-00662-000, 031-00662-700, 031-01250-000, 031-01250-700, 031-01266-000, 031-01266-700, 031-01284-000, 52537074000, 52537077000 |
