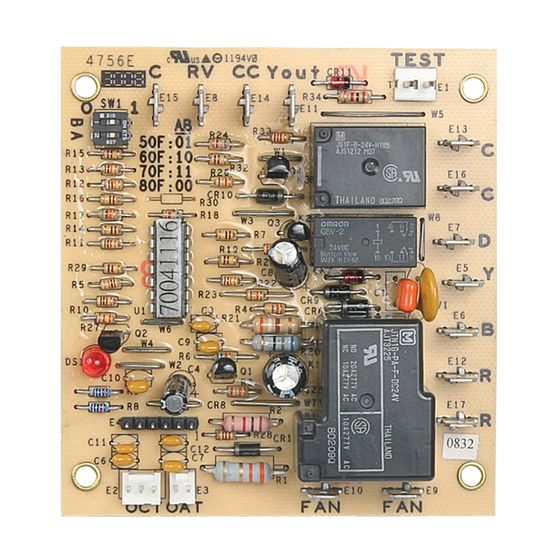

White-Rodgers 47D40-801 Heat Pump Defrost Demand Control Board, Replacement for Rheem
Save 56%
Original price
$91.39
Current price
$39.98
SKU 47D40-801
White-Rodgers 47D40-801 Heat Pump Defrost Demand Control Board, Replacement for Rheem
The 47D40-801 control is a microprocessor-based demand defrost controller intended for Rheem heat pump systems. This controller uses basic differential temperature means to detect degradation of system performance due to ice build-up on the outdoor coil. The controller uses “self-calibrating” principles to calibrate to the heat pump system. The defrosting is performed by reversing the refrigerant direction of flow.
- Direct OEM replacement
- Heat pump demand defrost algorithm
- Uses "self-calibrating" principles to calibrate itself
- Replaces over 20 different Rheem applications
- Includes Air and Coil Sensors
Installation Instructions
Specifications
|
Family Brands of Equipment: |
Rheem |
| Stages: | Single |
| Voltage: | Input 24 Vac, 60 Hz |
| Line Voltage: | 208/240 Vac |
| Inducer Motor/Blower Motor: | PSC |
| Mounting Options: | Metal Standoff |
| Ambient Operating Temperature: | -40 to 150°F (-40 to 65°C) |
| Operating Humidity: | 5% to 95% relative humidity (non-condensing) |
| Overall Dimensions: | 1.24”H X 3.38”W X 3.63”D |
Cross Reference
| Rheem: | 47-102684-01, 47-102684-03, 47-102684-83, 47-102685-01, 47-102685-03, 47-21517-11, 47-21517-13, 47-21517-14, 47-21517-16, 47-21517-17, 47-21517-18, 47-21517-23, 47-21517-24, 47-21517-82, 47-21517-88, DDL-013002-0RH, DDL-013002-1RH, DDL-013102-1RH, DDL-017002-2RH, DDL-017102-1RH, DDL-017702-1RH, DDL117702-3RH |
| White-Rodgers: | 47D40-801 |
