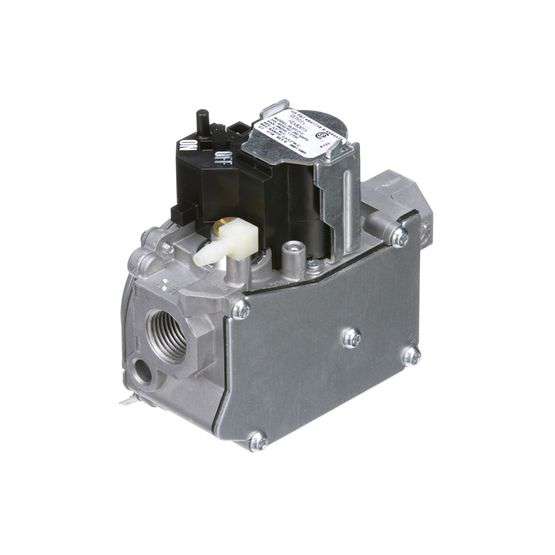

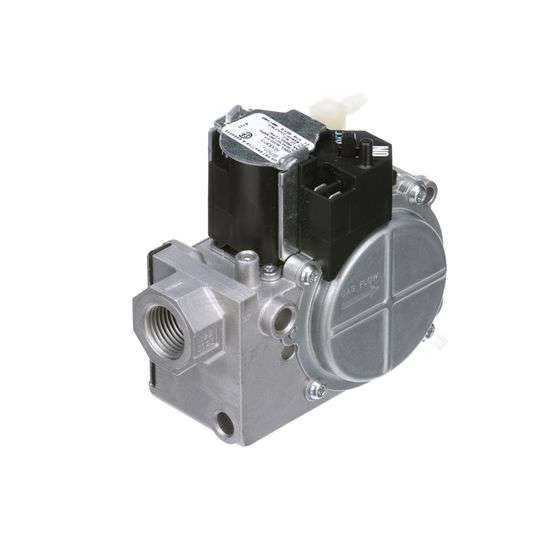

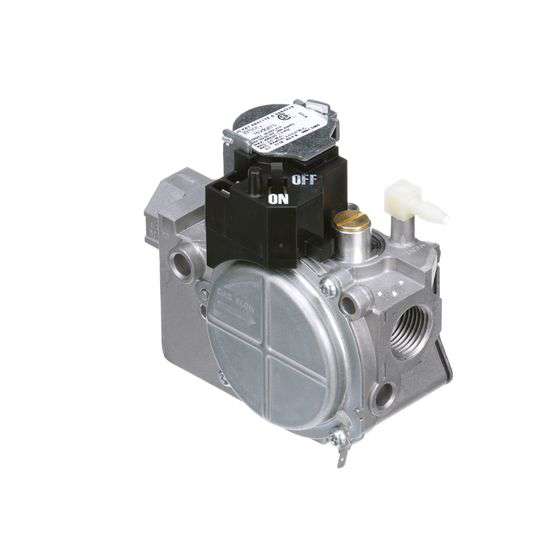

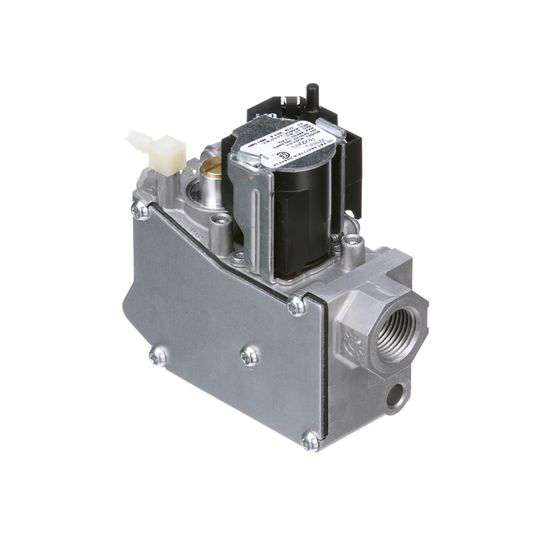

White-Rodgers 36J22-214 Single Stage, Fast Opening, HSI Gas Valve

Save 56%
Original price $191.68
Current price $83.87
SKU 36J22-214

White-Rodgers 36J22-214 Single Stage, Fast Opening, HSI Gas Valve

The 36J is a Combination Gas Control Valve Designed for Use with Non-Piloted Intermittent Ignition Systems. The Control is Designed to Meet Today’s Maximum Capacity, Smaller Size and High Efficiency Gas Systems



    Installation Instructions



    Specifications

    Voltage: 24 Vac 50/60Hz
    Opening Style: 1 - Stage Fast Opening
    Pipe Size: 1/2" x 1/2"
    Regulator Setting: 3.5"
    Regulator Adjustment Range: 2.5”-5.0”, Nat. Gas
    Regulator Adjustment Range: 7.0”-12.0”, LP Gas
    LP Conversion Kit Included: Yes
    Reducer Bushing Kit: Yes
    Flow Direction: Straight Through
    Side Taps: No
    Inlet/Outlet Pressure Tap: Yes/Yes
    Standing Pilot with Line Interrupter: No
    HSI/DSI: Yes
    Intermittent/Proven Pilot: No





    36J22-214 Replaces the Following Models:

    025-38979-000, 11J2806892-001, 120-09319, 12908, 20466803, 3004-1301, 36E01-204, 36E16-204, 36E22-210, 36E22-214, 36E22-220, 36E32-201, 36E36-216, 36E36-244, 36E36-284, 36F22-202, 36F22-213, 36G22-208, 36G22-214, 36G22Y-202, 36J22-208, 36J22-223, 36J22-257, 5H0797510000, C341950P01, D673493P01, EF32CW031, EF32CW035, X13120655010, X13120672010
