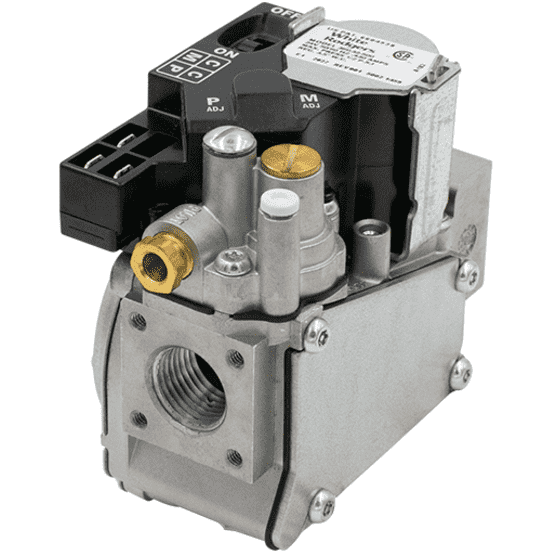

White-Rodgers 36G33-500 Single Stage, Slow Opening, Intermittent Pilot Gas Valve

Save 56%
Original price $228.67
Current price $100.04
SKU 36G33-500
Currently 5 in stock.

White-Rodgers 36G33-500 Single Stage, Slow Opening, Intermittent Pilot Gas Valve



Reduction of Inventory

  • One universal design services intermittent/proven pilot, HSI and DSI applications

Versatile

  • Small footprint
  • Flange mount, side NPT and tower pressure taps in one valve

Ease of Service

  • Co-located NPT taps for easy access
  • Lettering tailored for intermittent pilot applications

     Reliable

    • Recessed switch for better protection and operation



    36G32 & 36G33 Spec Sheet

    36G32 & 36G33 Installation Instructions

    36G Field Conversion Instructions


    Specifications

    Voltage: 24 Vac 50/60Hz
    Opening Style: 1 - Stage Slow Opening
    Pipe Size: 1/2" x 1/2"
    Regulator Setting: 3.5"
    Regulator Adjustment Range: 2.5”-5.0”, Nat. Gas
    Regulator Adjustment Range: 7.0”-12.0”, LP Gas
    LP Conversion Kit Included: Yes
    Flow Direction: Straight Through
    Inlet/Outlet Pressure Tap: Yes/Yes
    Standing Pilot with Line Interrupter: No
    HSI/DSI: Yes
    Intermittent/Proven Pilot: Yes
    Flange Mount Capable: Yes





    Cross Reference

    Honeywell: VR8204H1006, VR8204H1014, VR8204H1022, VR8204H1055, VR8204K2729
    Reznor: VR8204H1907, 176681
    Lennox / Armstrong: 41K35 / 41K3501, 41K37 / 41K3701, 41K38 / 41K3801, 58K73 / 58K7301, 74H27 / 74H2701, 97H27 / 97H2701, R39514B001, R39514B001, R39514B003, VR8204H1048, VR8204H8019, VR8204H1097, VR8204H2814, VR8204H2301
    Pitco: PP11140, VR8204H3440
    Rheem / Ruud: 60-22526-01, VR8204H1006
    White-Rodgers: 36G33-905
