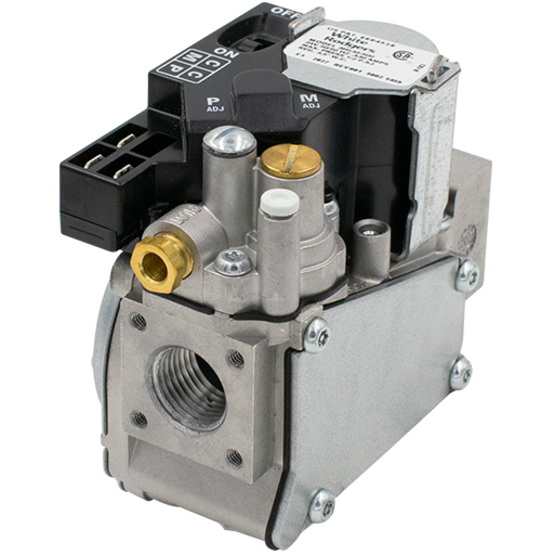

White-Rodgers 36G32-500 Single Stage, Fast Opening, Intermittent Pilot Gas Valve
Save 56%
Original price
$255.97
Current price
$111.99
SKU 36G32-500
White-Rodgers 36G32-500 Single Stage, Fast Opening, Intermittent Pilot Gas Valve
Reduction of Inventory
- One universal design services intermittent/proven pilot, HSI and DSI applications
Versatile
- Small footprint
- Flange mount, side NPT and tower pressure taps in one valve
Ease of Service
- Co-located NPT taps for easy access
- Lettering tailored for intermittent pilot applications
Reliable
- Recessed switch for better protection and operation
36G32 & 36G33 Installation Instructions
36G Field Conversion Instructions
Specifications
| Voltage: |
24 Vac 50/60Hz |
| Opening Style: | 1 - Stage Fast Opening |
| Pipe Size: | 1/2" x 1/2" |
| Regulator Setting: | 3.5" |
| Regulator Adjustment Range: | 2.5”-5.0”, Nat. Gas |
| Regulator Adjustment Range: | 7.0”-12.0”, LP Gas |
| LP Conversion Kit Included: | Yes |
| Flow Direction: | Straight Through |
| Inlet/Outlet Pressure Tap: | Yes/Yes |
| Standing Pilot with Line Interrupter: | No |
| HSI/DSI: | Yes |
| Intermittent/Proven Pilot: | Yes |
| Flange Mount Capable: | Yes |
Cross Reference
| Honeywell: | VR8204A1201, VR8204A1219, VR8204A2001, VR8204A2035, VR8204A2076, VR8204A2105, VR8204A2175, VR8204A2258, VR8204A2266, VR8204A2803, VR8204A2837, VR8204A2852, VR8204M1026, VR8204M1075, VR8204M1091, VR8204M1232, VR8204M8005, VR8245M2530 |
| Reznor: | VR8204M1901, 176680, VR8204M1000, 96307, VR8204M1018, 96310 |
| Bloddett: | 30005, 30006, 41108, 36G32-520, 36G32-521, VR8204A2803, VR8204A2837 |
| Pitco: | 60113501, 60113502, 60113503, VR8204A8826, VR8204A8834, VR8204A8842 |
| Enerco: | 00036, 00037, VR8204M1216, VR8204M1224 |
| Heil / Tempstar / Comfortmaker: | 1005597, VR8204M1075, 1162036, VR8204M1232 |
| Rheem / Ruud: | 60-25076-02, 60-105663-01, 60-22525-05, 60-22745-01 |
| Southbend Range: | 5450-1, 5450-2, 1182167 |
| Vulcan: | 420828-1, 857027, 857028 |
| Robertshaw: | 722-051 (2000DERHC), 722-079 (2000IPERHC), 7222DER |
| Weil-McLain: | 511-044-381, 511-044-354 |
| JCI / York: | VR8204M1026, 7839 |
| Frymaster: | 8100786, 8100787, VR8204A8800, VR8204A8818 |
