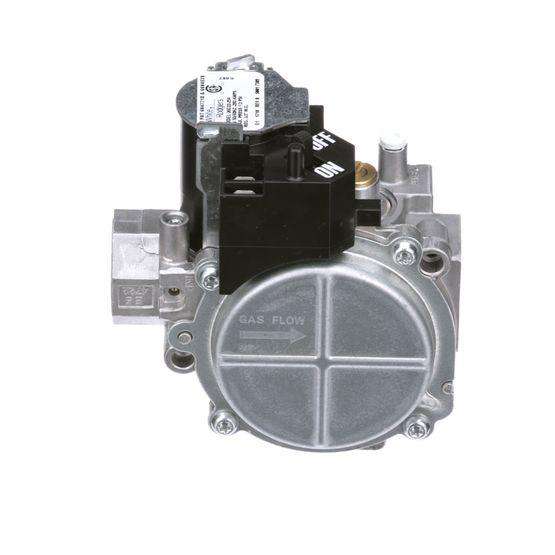

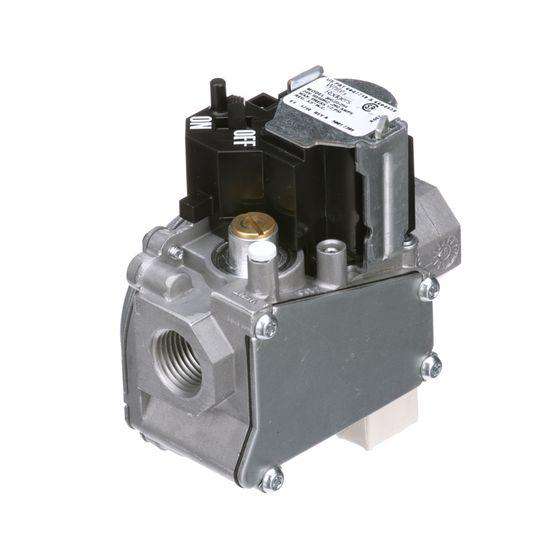

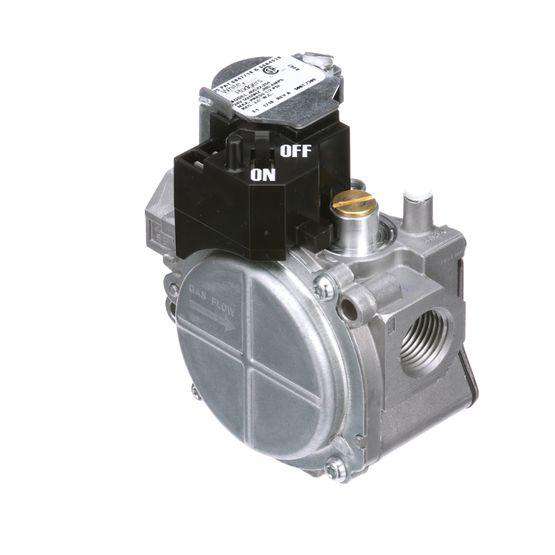

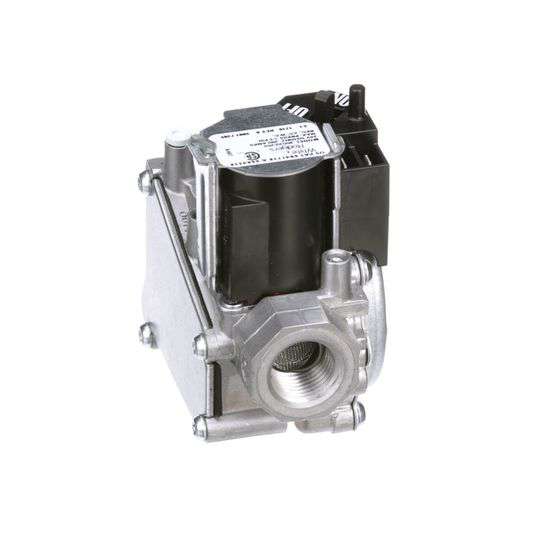

White-Rodgers 36G22-254 Single Stage, Fast Opening, HSI Gas Valve, Replacement for Goodman
Save 56%
Original price
$124.13
Current price
$54.31
SKU 36G22-254
White-Rodgers 36G22-254 Single Stage, Fast Opening, HSI Gas Valve, Replacement for Goodman
Electronic Ignition Gas Valve. The Versatile 36G Combination Gas Valve covers a wide range of applications. Designed for use with common ignition systems (HSI/DSI).
Installation Instructions
Specifications
|
Family Brands of Equipment: |
Goodman |
| Voltage: |
24 Vac 50/60Hz |
| Opening Style: | 1 - Stage Fast Opening |
| Pipe Size: | 1/2" x 1/2" |
| Regulator Setting: | 3.5" |
| Regulator Adjustment Range: | 2.5”-5.0”, Nat. Gas |
| Regulator Adjustment Range: | 7.0”-12.0”, LP Gas |
| LP Conversion Kit Included: | No |
| Reducer Bushing Kit: | No |
| Flow Direction: | Straight Through |
| Side Taps: | No |
| Inlet/Outlet Pressure Tap: | Yes/Yes |
| Standing Pilot with Line Interrupter: | No |
| HSI/DSI: | Yes |
| Intermittent/Proven Pilot: | No |
Cross Reference
| Goodman: | 0151M00013, B1282628S, B12826-28, B1282614, B12826-14 |
| White-Rodgers: | 36G22Y-202 |
| Honeywell: | VR8215S1214 |
