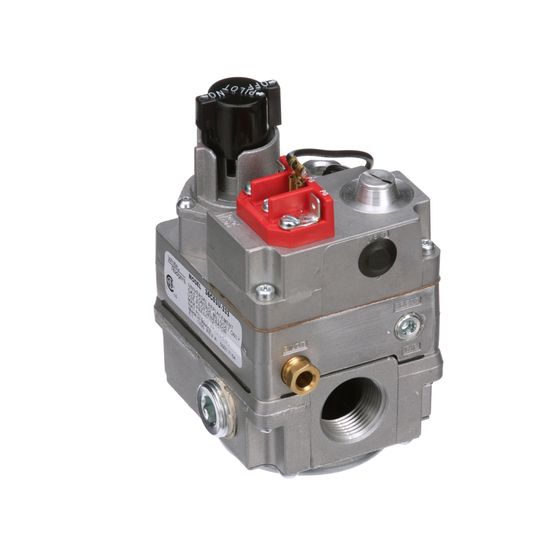

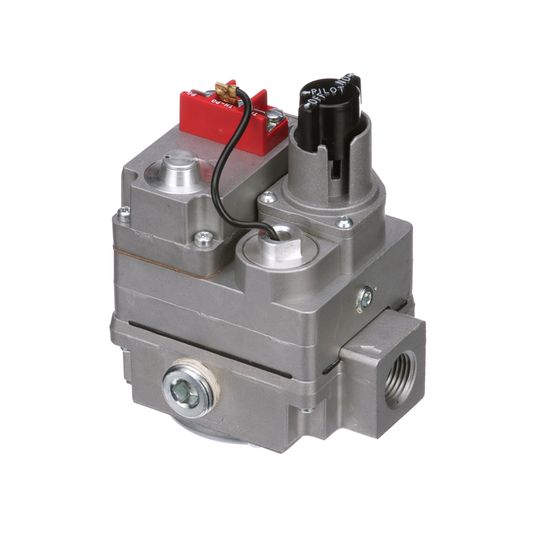

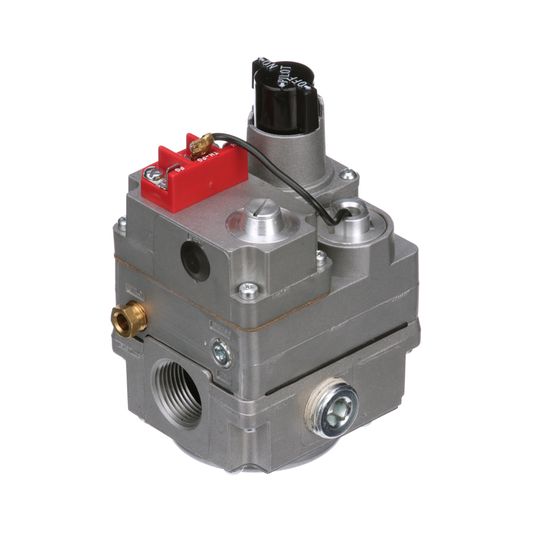

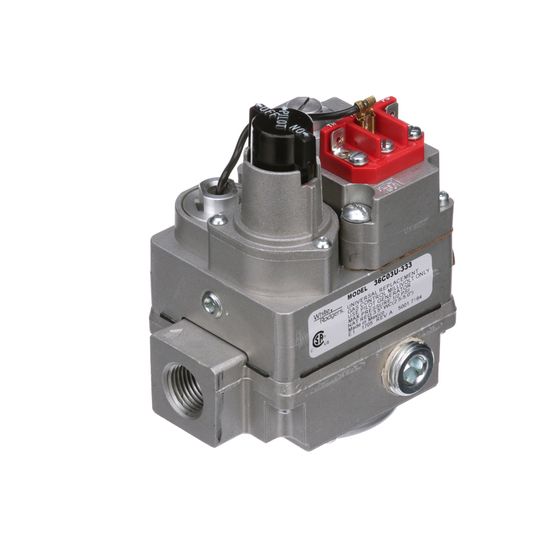

White-Rodgers 36C03U-333 Single Stage, Fast Opening, 1/2" x 3/4" Standing Pilot Gas Valve, 750 mV, Natural/LP

Ideal general purpose replacements for Standing Pilot systems.



Data Sheet

Installation Instructions



Specifications

Voltage:	750 mV
Opening Style:	1 - Stage Fast Opening
Pipe Size:	1/2" x 3/4"
Regulator Setting:	3.5"
Regulator Adjustment Range:	2.5”-5.0”, Nat. Gas
Regulator Adjustment Range:	7.5”-12.0”, LP Gas
LP Conversion Kit Included:	Yes
Reducer Bushing Kit:	Yes
Flow Direction:	Straight Through
Side Taps:	Yes
Inlet/Outlet Pressure Tap:	Yes/Yes
Standing Pilot with Line Interrupter:	Yes
HSI/DSI:	No
Intermittent/Proven Pilot:	No





Replaces the following models:

120032, 3644U-228, 3661U-228, 3661U-102, 36C03U-115, 36C03U-285, 36C03U-300, 36C10U-100, 36C10U-276, 36C13U-103, 36C13U-200, 36C13U-350, 700-501, 700-509, 99796135, MR57AB22, VH700-501, VH700-514, VS8133A1009, VS8138A1008, VS8167D1004, VS8178C1002, VS8179A1002, VS820Q1026, VS821B1002, VS8233E1003, VS8238A1022, VS8279A1000, VS8295A1006, X13130431030
