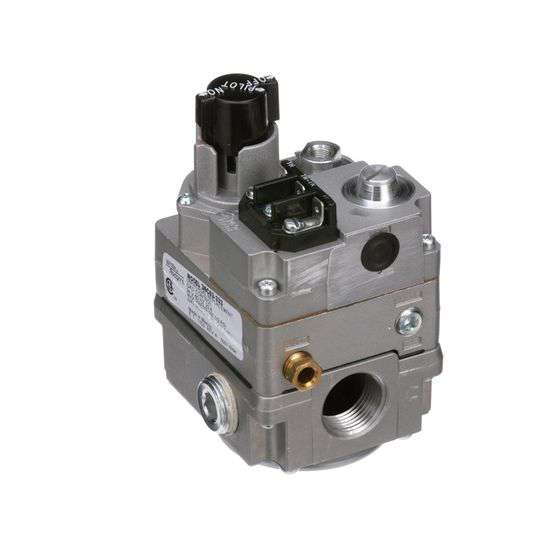

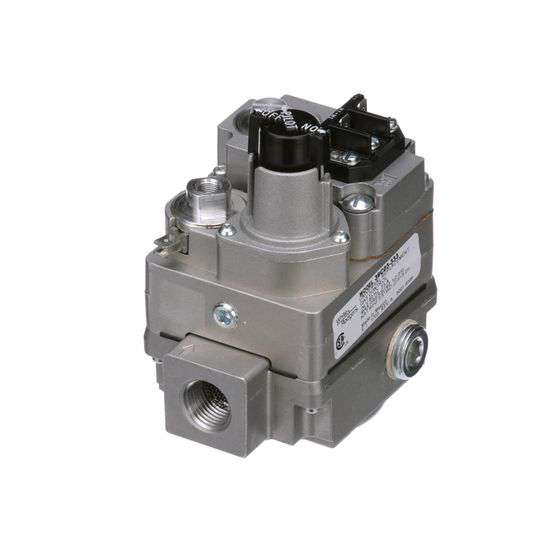

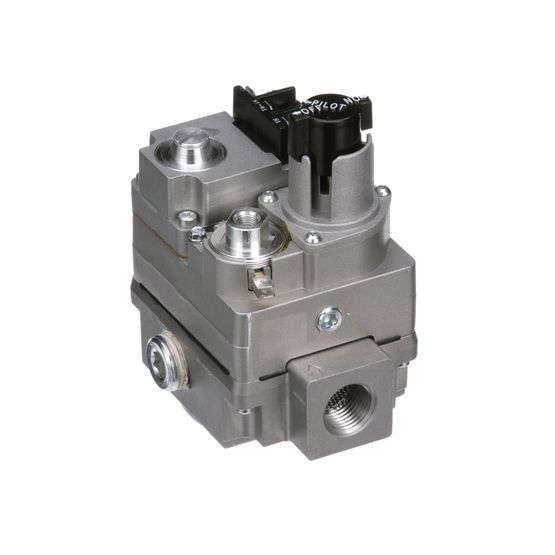

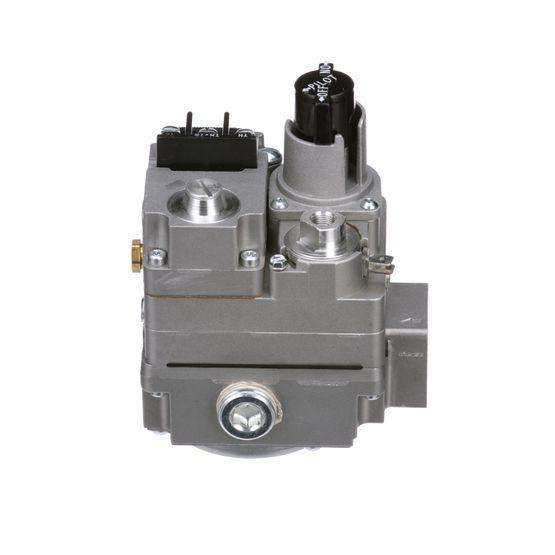

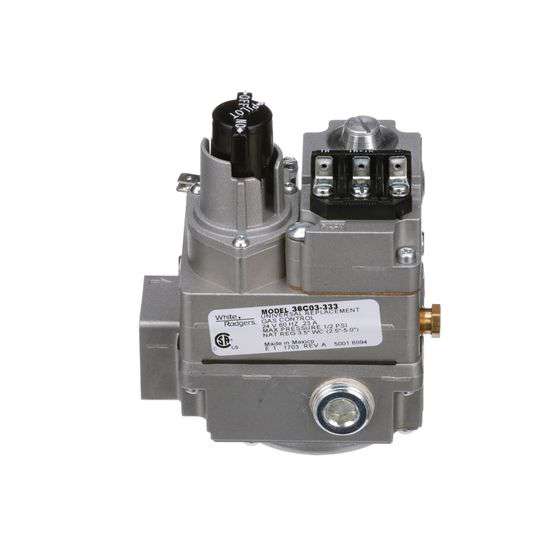

White-Rodgers 36C03-333 Single Stage, Fast Opening, Standing Pilot Gas Valve, Replacement for Honeywell
Save 56%
Original price
$337.89
Current price
$147.83
SKU 36C03-333
White-Rodgers 36C03-333 Single Stage, Fast Opening, Standing Pilot Gas Valve, Replacement for Honeywell
Ideal general purpose replacements for Standing Pilot systems.
Installation Instructions
Specifications
| Voltage: |
24 Vac 60Hz |
| Opening Style: | 1 - Stage Fast Opening |
| Pipe Size: | 1/2" x 3/4" |
| Regulator Setting: | 3.5" |
| Regulator Adjustment Range: | 2.5”-5.0”, Nat. Gas |
| Regulator Adjustment Range: | 7.0”-12.0”, LP Gas |
| LP Conversion Kit Included: | Yes |
| Reducer Bushing Kit: | Yes |
| Flow Direction: | Straight Through |
| Side Taps: | Yes |
| Inlet/Outlet Pressure Tap: | Yes/Yes |
| Standing Pilot with Line Interrupter: | Yes |
| HSI/DSI: | No |
| Intermittent/Proven Pilot: | No |
Replaces the following models:
| 10P5001, 1149781, 2E725, 2E726, 3601-124, 3601-128, 3601-188, 3601-208, 3601-228, 3601-486, 3602-224, 3602-228, 3602-584, 3603-208, 3603-228, 3604-118, 3604-228, 3604-404, 3604-408, 3604-428, 3604-484, 3604-518, 3604-528, 3605-925, 3606-128, 3606-188, 3606-228, 3606-486, 3661-28, 3661-288, 3661-428, 3661-488, 3661-505, 3661-506, 3661-583, 3661-584, 3661-588, 3661-628, 3661-688, 3661-83, 3661-86, 3662-584, 3666-404, 3666-428, 3666-488, 3666-506, 3666-584, 3666-588, 3666-83, 3666-86, 36C02-200, 36C02-201, 36C02-202, 36C02-203, 36C02-278, 36C02-279, 36C03-210, 36C03-216, 36C03-219, 36C03-221, 36C03-228, 36C03-233, 36C03-234, 36C03-236, 36C03-252, 36C03-263, 36C03-267, 36C03-305, 36C03-309, 36C03-310, 36C03-311, 36C03-315, 36C03-316, 36C03-320, 36C03-324, 36C03-350, 36C10-200, 36C10-202, 36C10-205, 36C10-206, 36C10-208, 36C10-276, 36C10-277, 36C10-278, 36C10-300, 36C10-302, 36C10-304, 36C13-200, 36C13-214, 36C13-276, 36C13-300, 36C13-350, 36C13-400, 42-0290, 4E124, 4E400, 4E770, 52537065000, 6245350, 700-402, 700-408, 720-402, 7700-346, 7700A346, 7700A3461, 8631-326, 99796130, B57RB161, B57RB68, B59R02, G93AGB-1, P321764/65, SK50609, SV-5-0, V11-NG, V800A1070, V800A1484, VAL04922, VR8300A3500, X13130431010 |
