White-Rodgers 24A34-14 24V Electric Heat Sequencer, 2DPDT-SPST
Save 56%
Original price
$71.04
Current price
$31.08
SKU 24A34-14

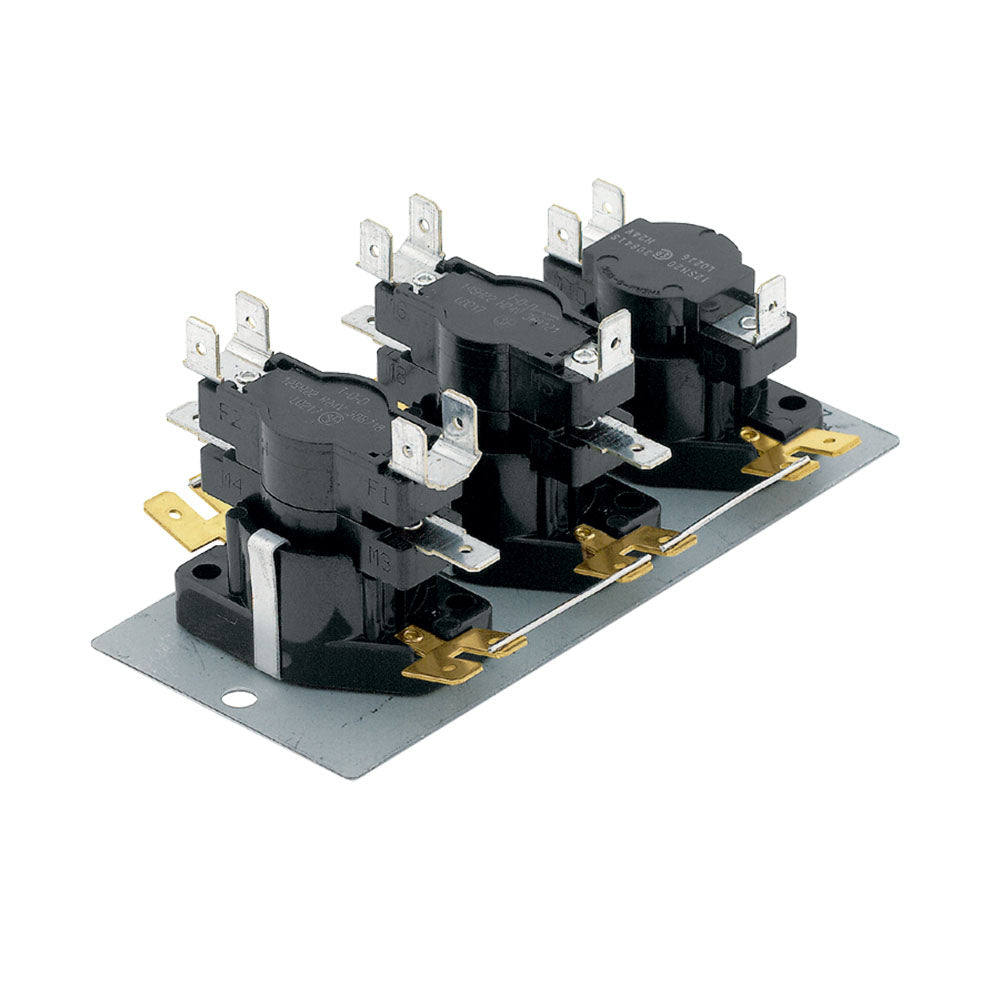

White-Rodgers 24A34-14 24V Electric Heat Sequencer, 2DPDT-SPST
Direct replacement for most fan/heat sequencing functions. Terminal markings are equivalent to competitive types.
- Replaces Honeywell, MARS, TOD, GEMLINE, Klixon (Texas Instruments)
- 24V input control
- Multi-poise mounting
- Any contacts (except M1 & M2) can be used as auxiliary contacts
- Double quick-connect terminals for combination loads
Installation Instructions
Specifications
| Timings | 4 (note: some switch pairs turn ON or OFF simultaneously, consult instruction sheet for more detail) |
| Switch Description | 5 |
| Timings-On In Seconds | 1 to 160, Switch M1-M2 |
| Timings-On In Seconds | 1 to 160, Switch M3-M4 |
| Timings-On In Seconds | 1 to 160, Switch M5-M6 |
| Timings-On In Seconds | 1 to 160, Switch M7-M8 |
| Timings-On In Seconds | 1 to 160, Switch M9-M10 |
| Timings-Off In Seconds | 1 to 160, Switch M1-M2 |
| Timings-Off In Seconds | 1 to 160, Switch M3-M4 |
| Timings-Off In Seconds | 1 to 160, Switch M5-M6 |
| Timings-Off In Seconds | 1 to 160, Switch M7-M8 |
| Timings-Off In Seconds | 1 to 160, Switch M9-M10 |
| Amperage | 14.0 FLA, 72.0 LRA, 25.0, 3000W Res at 120 Vac, 7.0 FLA, 42.0 LRA, 25.0, 6000W Res at 240 Vac, 12.5, 6000 Res at 480 Vac |
| VA Output | 120-240 Vac 125 VA, 480 Vac 480 VA |
| Ambient Operating Temperature Range | From -50 to +165°F |
| Approvals | U.L. component recognized |
| Inductive (Motor) Full Load 120 Vac | 14.0A |
| Inductive (Motor) Full Load 240 Vac | 7.0A |
| Inductive (Motor) Locked Rotor 120 Vac | 72.0A |
| Inductive (Motor) Locked Rotor 240 Vac | 42.0A |
| Inductive (Motor) Locked Rotor 480 Vac | 25.0A, 3000W |
| Inductive (Motor) Locked Rotor 480 Vac | 25.0A, 6000W |
| Inductive (Motor) Locked Rotor 480 Vac | 12.5A, 6000W |
| Pilot Duty | 120-240 Vac 125 VA, 480 Vac 480 VA |
