Weiss Instruments LF441-030-4L 4" Liquid Filled Pressure Gauge, 0-30 psi, 1/4" NPT

Features

• Stainless Steel Case
• Glycerine Fill
• ±1% Accuracy

Specifications

• CASE:  4” Type 304 stainless steel thin line case
• FILL FLUID:  Glycerine
• RING:  Crimped, polished stainless steel
• WINDOW:  Clear Acrylic
• TUBE:  Phosphor bronze
• SOCKET:  Brass with threaded restrictor

• DIAL:  White aluminum with black and red
  markings (psi & kPa scale standard)
• MOVEMENT:  Brass rotary type with bushings
• POINTER:  Black anodized aluminum
• ACCURACY:  ±1.0% Full Scale, ASME B40.100
  Grade 1A
• CONNECTION:  1/4 NPT Lower

• OPERATING TEMPERATURE:
  • PROCESS:  -40-140°F (-40-60°C)
  • AMBIENT:  -40-140°F (–40-60°C)

Markets

• General Service
• Compressors and Pumps

• Hydraulic Equipment
• Plumbing & Heating
• Outdoor Applications

Submittals

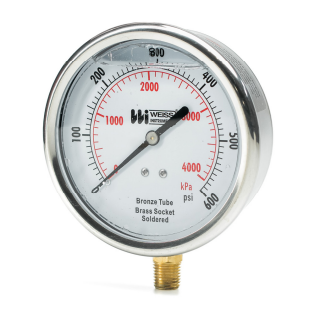

**The image shown is for illustration purposes only and may not be an exact representation of the product.**
