Weiss Instruments TL40-100-4L 4" Trade Line Pressure Gauge, 0-100 psi, 1/4" NPT

$16.50
SKU TL40-100-4L
Currently 4 in stock.

Weiss Instruments TL40-100-4L 4" Trade Line Pressure Gauge, 0-100 psi, 1/4" NPT

Features

  • 4" Dial
  • Steel Case
  • ±3-2-3% Accuracy

Specifications

  • CASE:  Drawn steel, black finished
  • WINDOW:  Polycarbonate, push-in
  • TUBE:  Bronze
  • SOCKET:  Brass, soft soldered connection
  • RESTRICTOR:  Push-in type
  • DIAL:  White coated metal lithographed with black & red graduations lines and numerals, dual scale PSI & kPa
  • MOVEMENT:  All brass construction, precision gear and pinion
  • POINTER:  Balanced design, aluminum with black finish
  • ACCURACY:  ±3-2-3% ASME B40.100 Grade B
  • CONNECTION:  1/4 NPT, Lower
  • OPERATING TEMPERATURE:
    • PROCESS:  -40-140°F (-40-60°C)
    • AMBIENT:  -40-140°F (–40-60°C)

Markets

  • General Service
  • Compressors and Pumps
  • Filtration
  • Hydraulic, Pneumatic & Fluid Power
  • Light-Duty Equipment
  • Light-Duty HVAC Equipment


Submittals

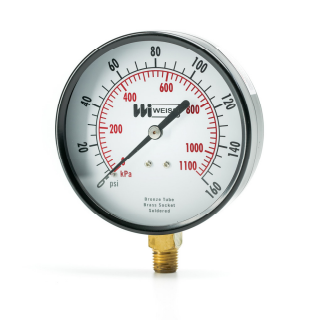

**The image shown is for illustration purposes only and may not be an exact representation of the product.**
