Description

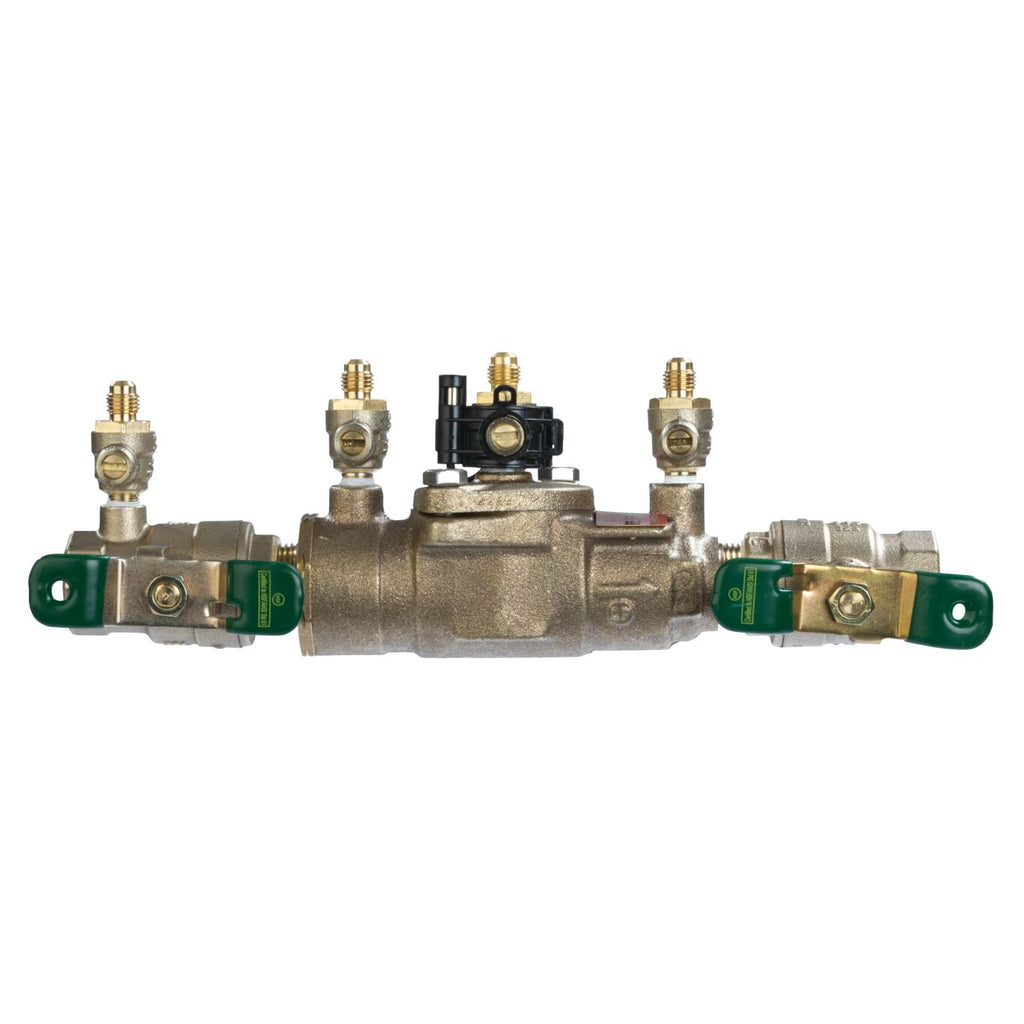

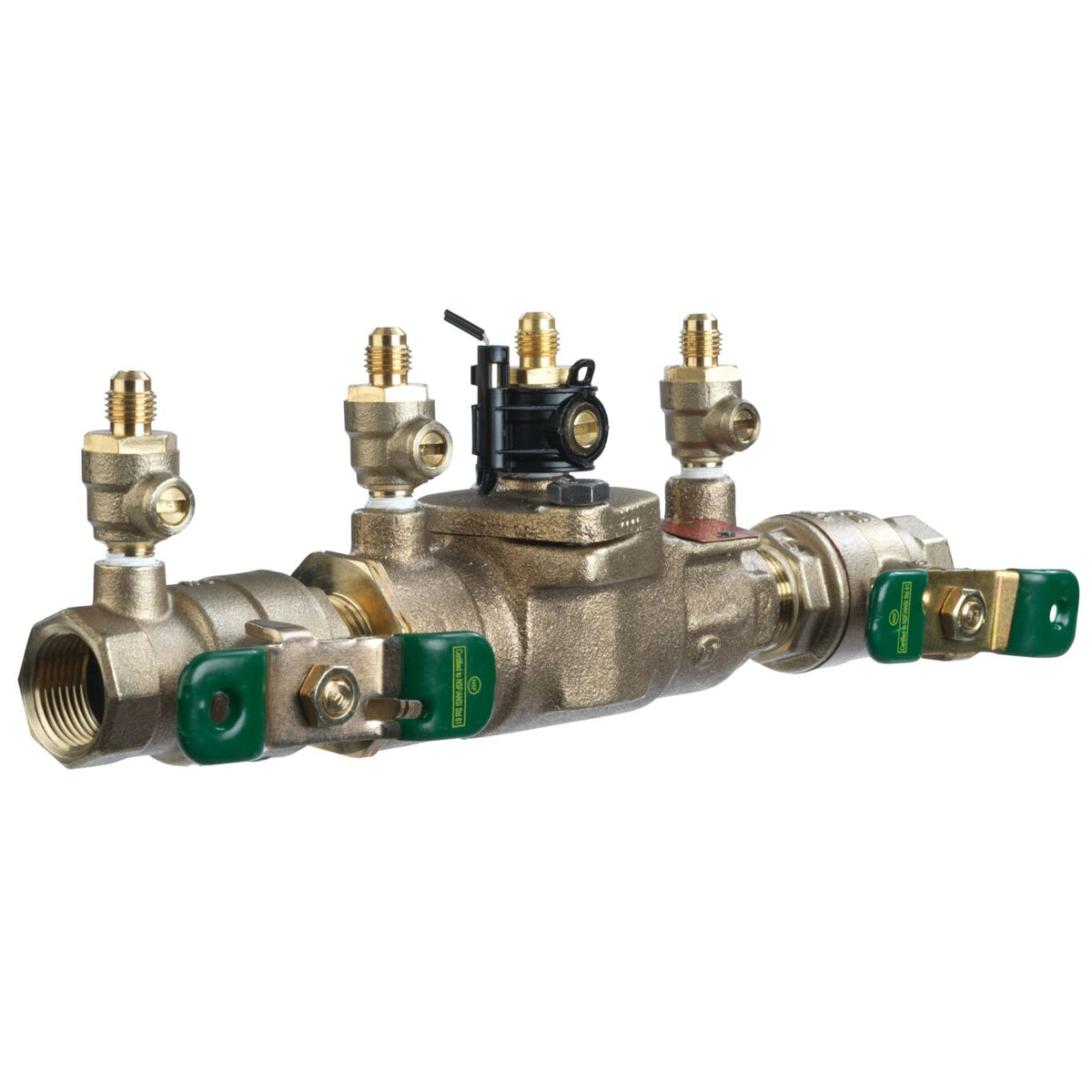

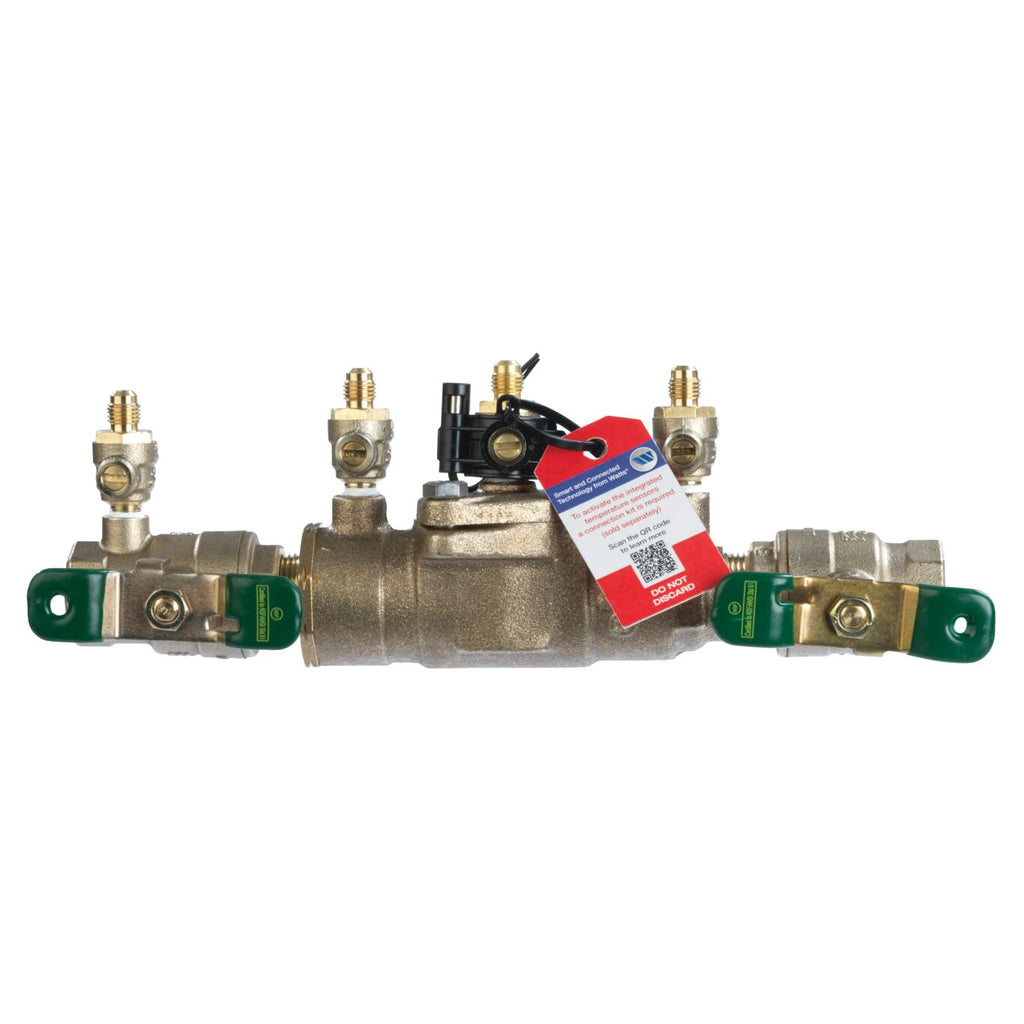

Watts T063231 LF007M3-QT-FZ 3/4, 3/4" FPT Double Check Valve Backflow Preventer Assembly, Lead Free
This 3/4 inch lead free double check valve backflow preventer assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly consists of a lead free cast copper silicon alloy body construction, NPT end connections, quarter turn ball valve shutoffs, top mounted test cocks, two in-line independent positive seating check modules, captured springs, and replaceable check discs and seats. The double check valve includes a freeze sensor for use with SentryPlus Alert® technology to signal facility personnel when temperature nears and reaches the freezing point. Freeze alerts feature available with add-on connection kit for Wi-Fi networks, building management systems (BMS), irrigation management systems (IMS).
Features
- Includes a freeze sensor for use with SentryPlus Alert technology to signal facility personnel when temperature nears and reaches the freezing point
- Available freeze sensor connection kit to activate a monitoring system that trigger alerts for low and freezing temperatures
- Lead free construction
- Modular compact design
- Freeze alerts feature available with add-on connection kit for Wi-Fi networks, building management systems (BMS), and irrigation management systems (IMS)
- Replaceable seats and seat discs
- Top entry
Specifications
| Backflow Preventer Type: | Double Check Valve Assembly |
| Body Material: | Lead Free Copper Silicon Alloy |
| Body Pattern: | Inline |
| Disc Material: | Rubber |
| Buy American Act Compliant: | YES |
| Inlet Connection Size: | 3/4" NPT |
| Inlet Connection Type: | Female Threaded |
| Inlet Shutoff Valve Type: | Quarter Turn Ball Valve |
| Outlet Connection Size: | 3/4" NPT |
| Outlet Connection Type: | Female Threaded |
| Outlet Shutoff Valve Type: | Quarter Turn Ball Valve |
| Pressure Operation: | Continuous |
| Protection Type: | Backpressure and Backsiphonage |
| Lead Free: | Yes |
| Maximum Temperature: | 180°F |
| Maximum Working Pressure: | 175 psi |
| Minimum Temperature: | 33°F |
| Strainer: | No |
| Technologies: | Freeze Detection |
