Watts 0204158 LFUSG-CS Guardian® 3/8" Under-Sink Thermostatic Mixing Valve with Cross Sense™

SKU: 0204158

Price:
Sale price$235.31
Stock:
In stock (48 units), ready to be shipped

Description

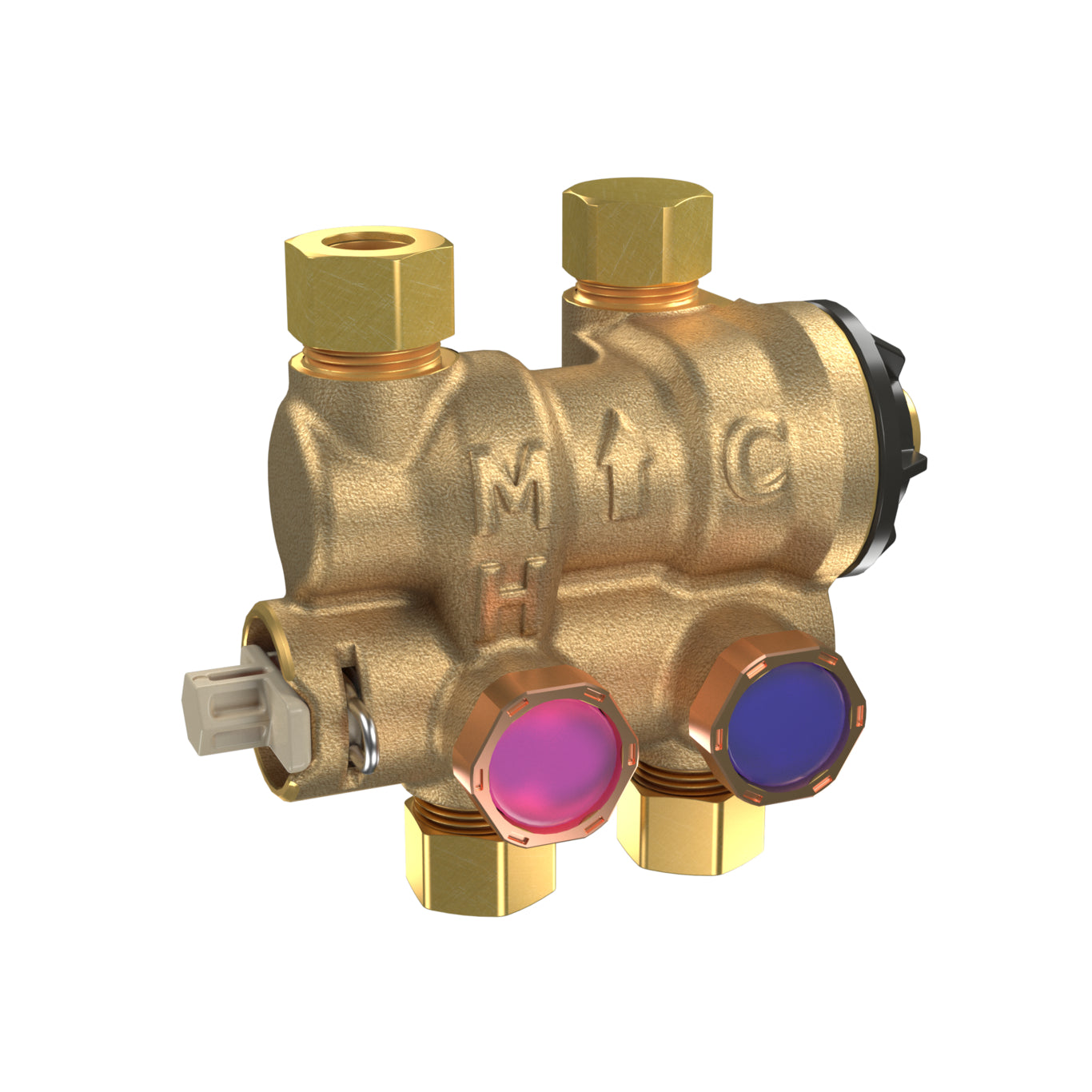

Watts 0204158 LFUSG-CS Guardian® 3/8" Under-Sink Thermostatic Mixing Valve with Cross Sense™

This Under Sink Guardian® mixing valve with Cross Sense, is built to maintain a steady and safe water temperature at the fixture making it an ideal solution for facilities that prioritize user protection, such as hospitals, schools, businesses, and elder care homes. Designed for installation beneath sinks or counters, it helps prevent accidental scalding from overheated water. With its enhanced flow dynamics, the Under Sink Guardian ensures precise temperature regulation with minimal pressure loss. Internally, dual check valves prevent reverse flow between hot and cold supplies, while integrated strainers trap particles. Both housed within a removable, serviceable cartridge that promotes long-term maintenance and sustainability. The Cross Sense feature uses temperature-sensitive indicators to provide a clear visual of any cross-connection at the inlets.

Features

  • Accurate temperature control with low pressure drop

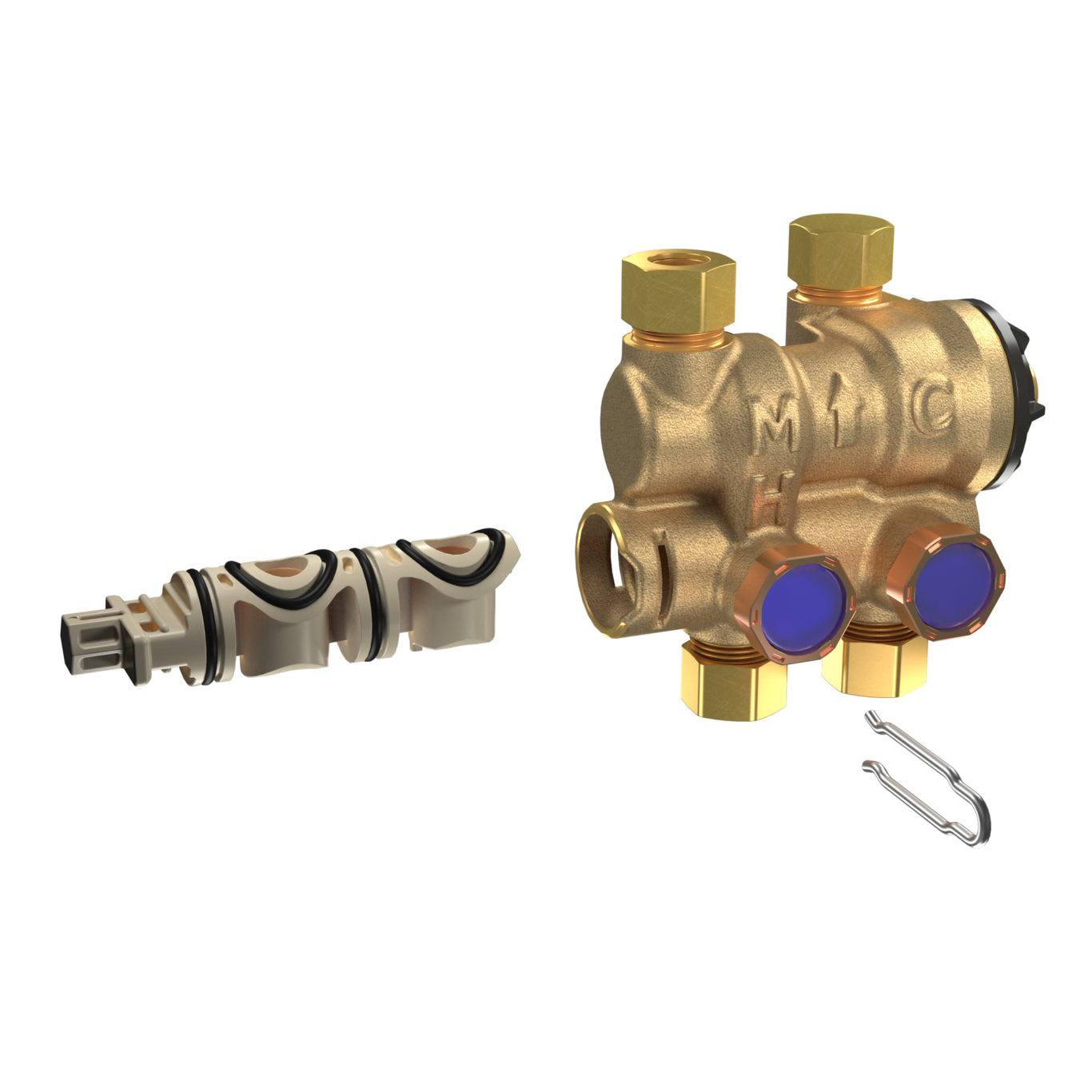

  • Quick change cartridge with integrated check valves and screens
  • Cross Sense feature uses color changing visual indicators to detect cross-connection at hot and cold inlets
  • ASSE 1070 listed and CSA certified
  • Meets the reduced Q test statistic criteria of 0.5 ppb for lead per Section 9.5.1.1 of NSF/ANSI/CAN 61

Specifications

Body Material:
Lead Free Brass
Buy American Act Complaint: YES
Cold Inlet Temperature Range: 39 to 80 degrees F
Cold Water Bypass: Yes
Cold Water Inlet Connection Size: 3/8"
Cold Water Inlet Connection Type: Compression
Factory Set Temperature-Fahrenheit: 105
Hot Inlet Temperature Range: 120 to 180 degrees F
Hot Water Inlet Connection Size: 3/8"
Hot Water Inlet Connection Type: Compression
Lead Free: YES
Maximum Pressure Differential: 20 Percent
Maximum Working Pressure-PSI: 150
Minimum Differential Temperature-Fahrenheit: 5
Minimum Static Pressure-PSI: 30
Outlet Connection Size: 3/8"
Outlet Connection Type: Compression
Outlet Temperature Accuracy: Plus/minus 3 degrees F
Temperature Adjustment Range: 80 to 120 degrees F
