Description

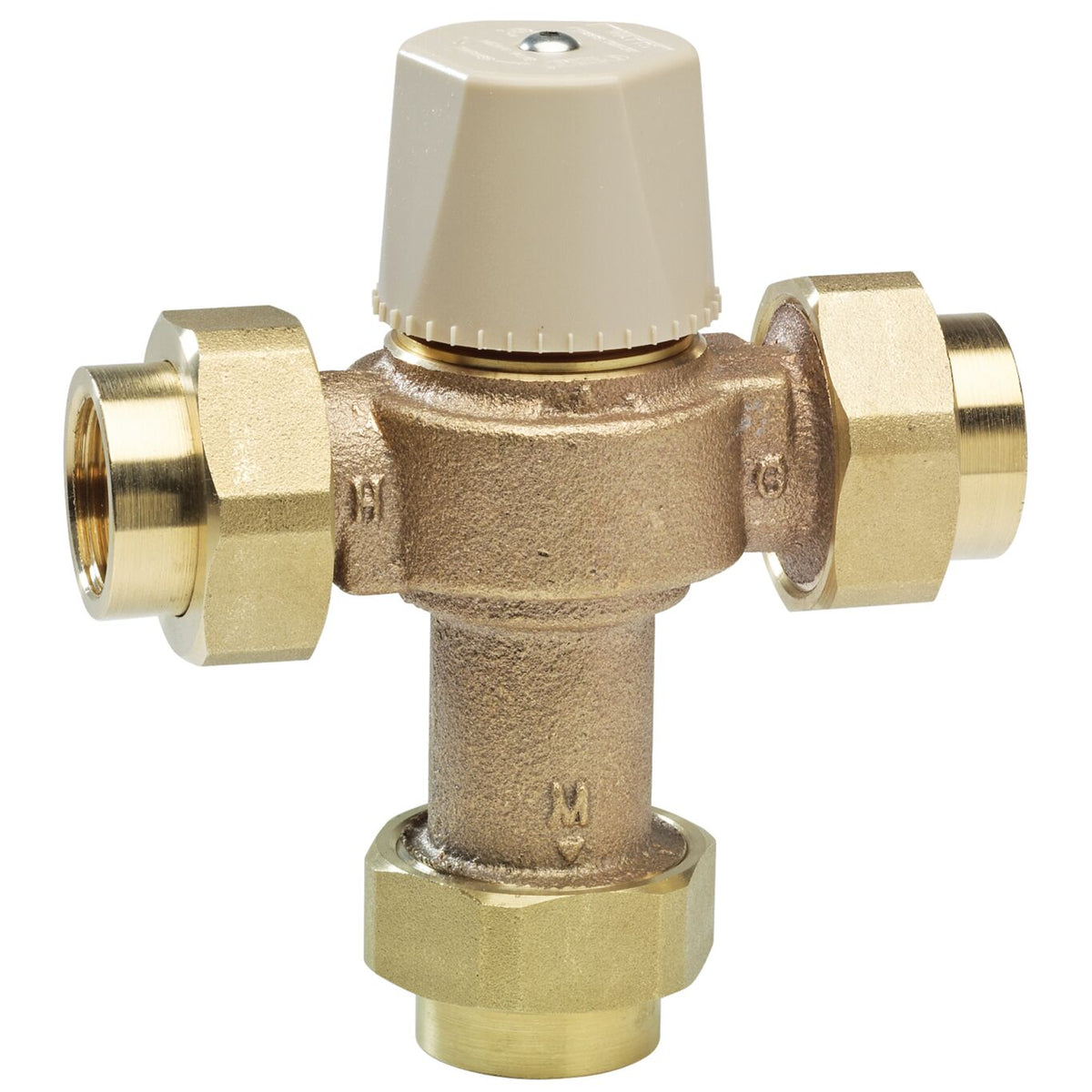

Watts 0559119 LFMMVM1-UT 3/4, 3/4" Thermostatic Mixing Valve, Threaded Union End Connection, Lead Free
This 3/4 inch lead free thermostatic mixing valve is designed for residential, commercial or institutional environments for supplying baths or lavatories with tempered water. The double throttling design controls both hot and cold water supply to the mixed outlet. It consists of a lead free copper silicon alloy body, threaded union connections, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting. The adjustable field range temperature at mixed outlet is 80 to 120 degrees F (27 to 49 degrees C). The maximum pressure rating is 150 psi (10.3 bar).
Features
- Lead free copper silicon alloy construction
- Thermal actuation technology for precise temperature control
- Locking mechanism secures temperature setting
- ASSE 1070, ASSE 1069, ASSE 1017 and UPC listed
Specifications
|
Body Material: |
Lead Free Copper Silicon Alloy |
| Buy American Act Complaint: | YES |
| Capacity: | 20 GPM at 125 PSI |
| Cold Inlet Temperature Range: | 39 to 85 degrees F |
| Cold Water Bypass: | No |
| Cold Water Inlet Connection Size: | 3/4" |
| Cold Water Inlet Connection Type: | FNPT |
| Factory Set Temperature-Fahrenheit: | 105 |
| Hot Inlet Temperature Range: | 120 to 180 degrees F |
| Hot Water Inlet Connection Size: | 3/4" |
| Hot Water Inlet Connection Type: | FNPT |
| Flow Rate: | 0.5 to 20 GPM |
| Lead Free: | YES |
| Maximum Pressure Differential: | 25 Percent |
| Maximum Working Pressure-PSI: | 150 |
| Minimum Differential Temperature-Fahrenheit: | 5 |
| Minimum Static Pressure-PSI: | 30 |
| Outlet Connection Size: | 3/4" |
| Outlet Connection Type: | FNPT |
| Outlet Temperature Accuracy: | Plus/minus 7 degrees F |
| Temperature Adjustment Range: | 80 to 120 degrees F |
