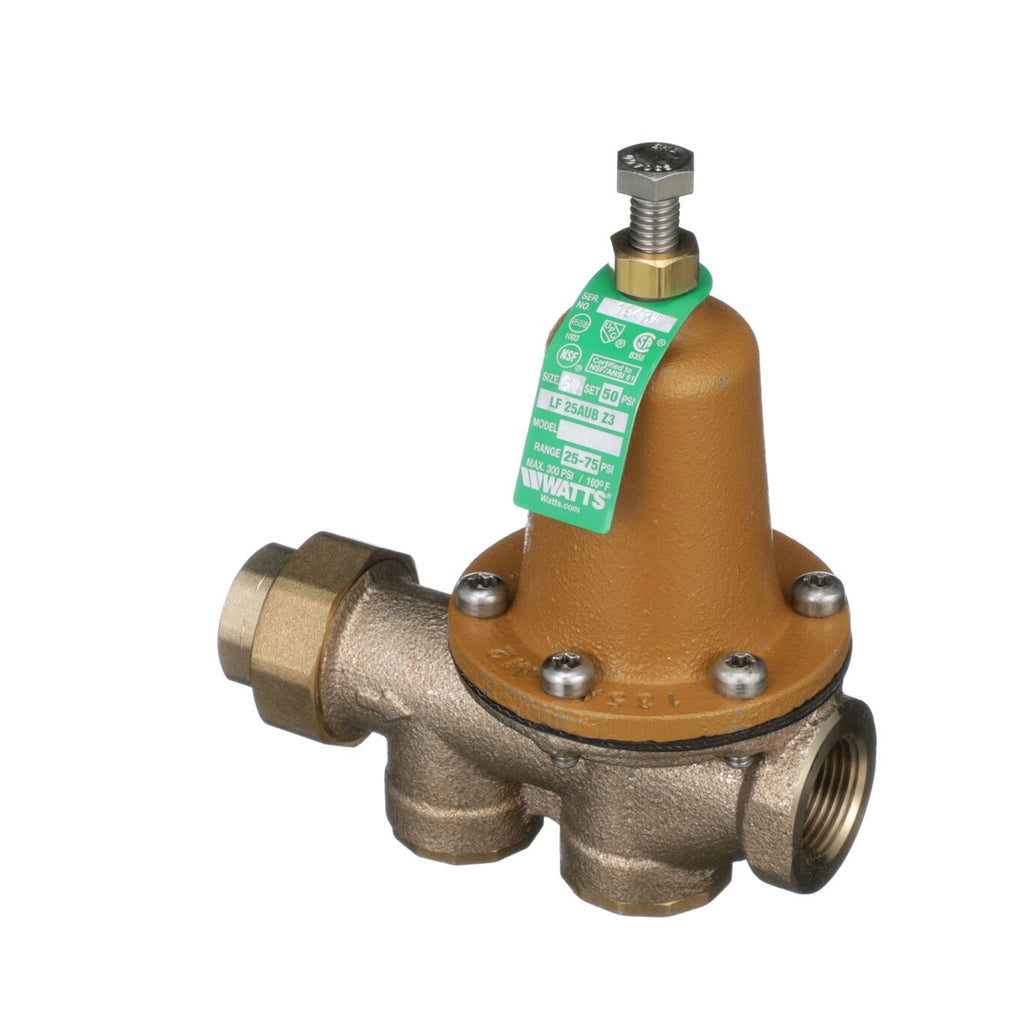

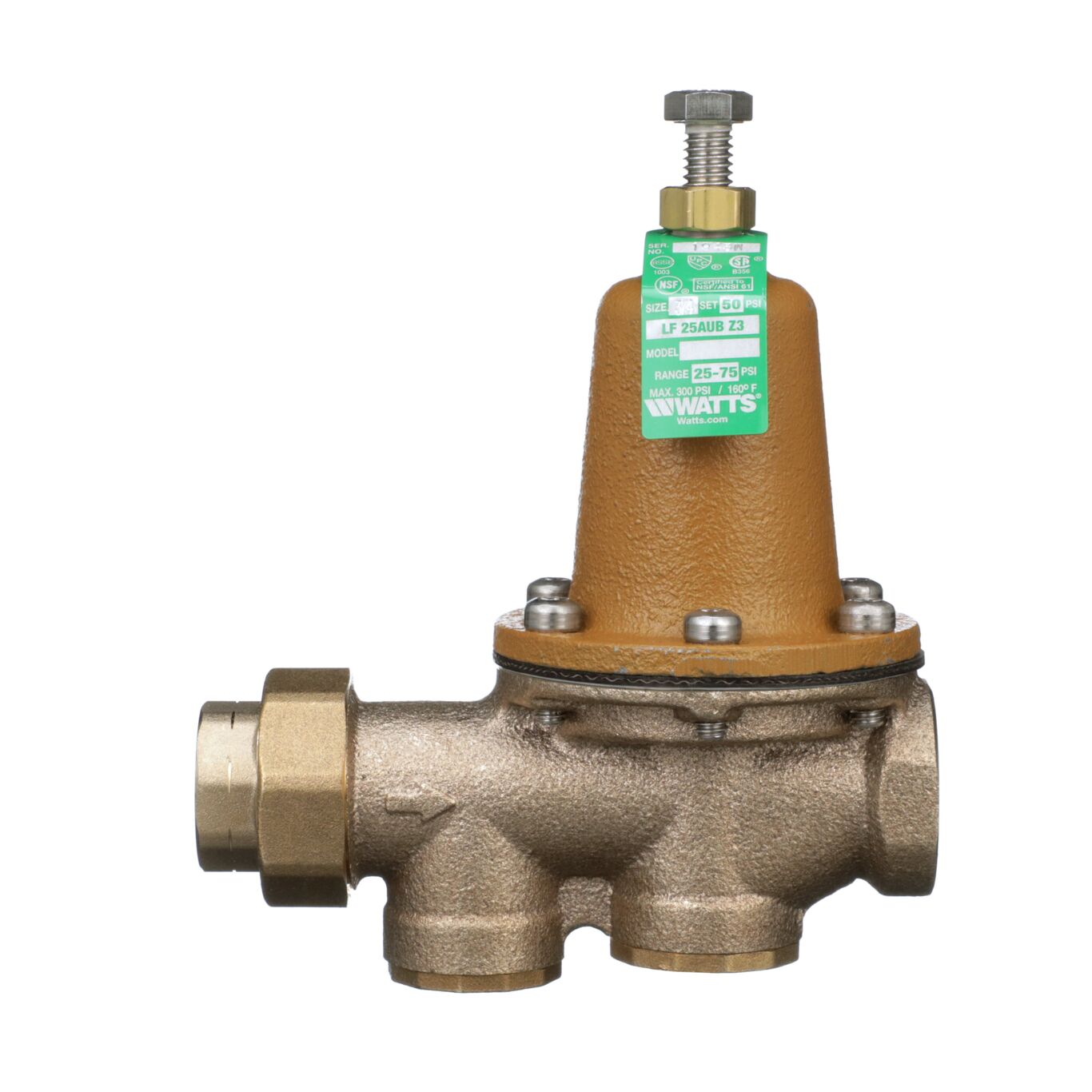

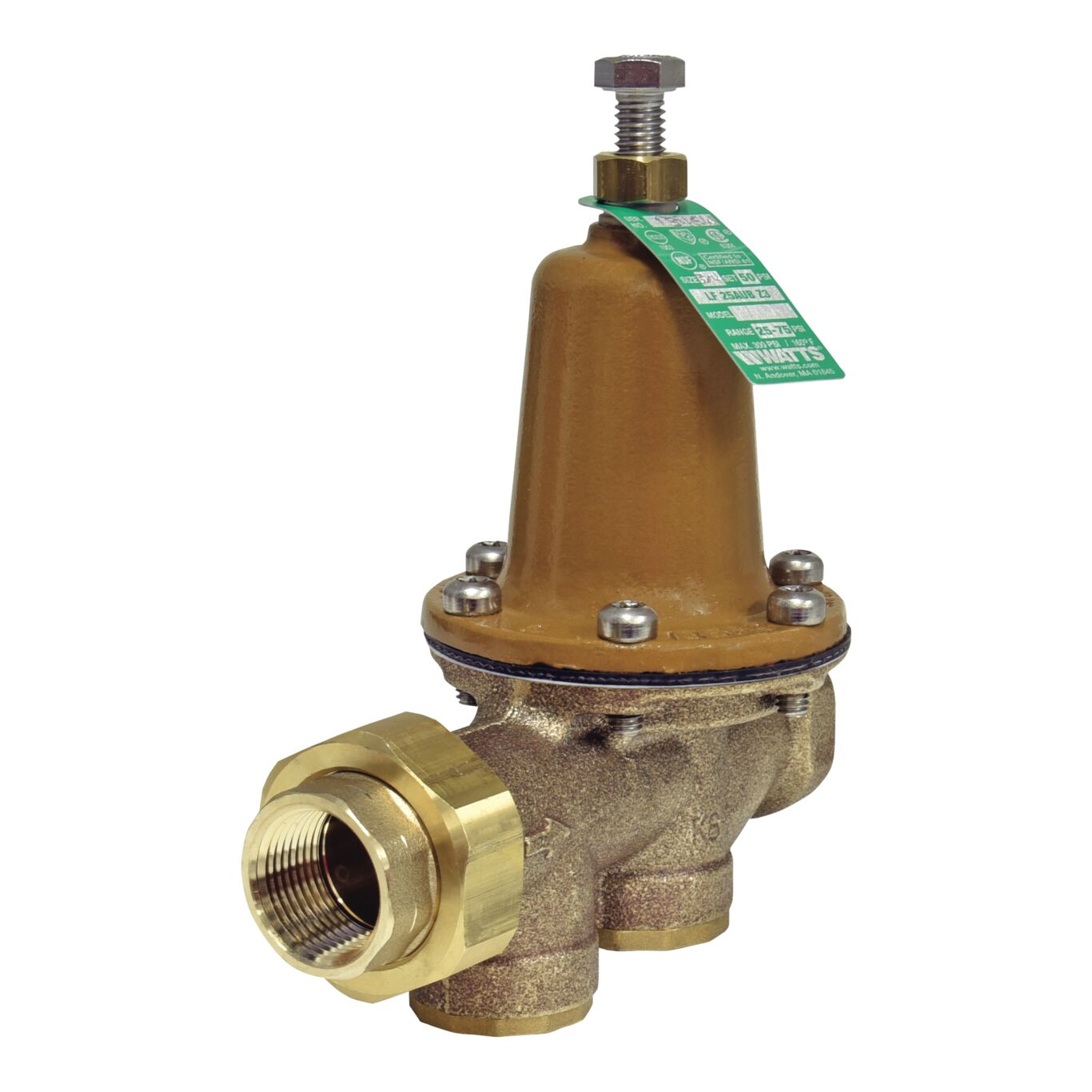

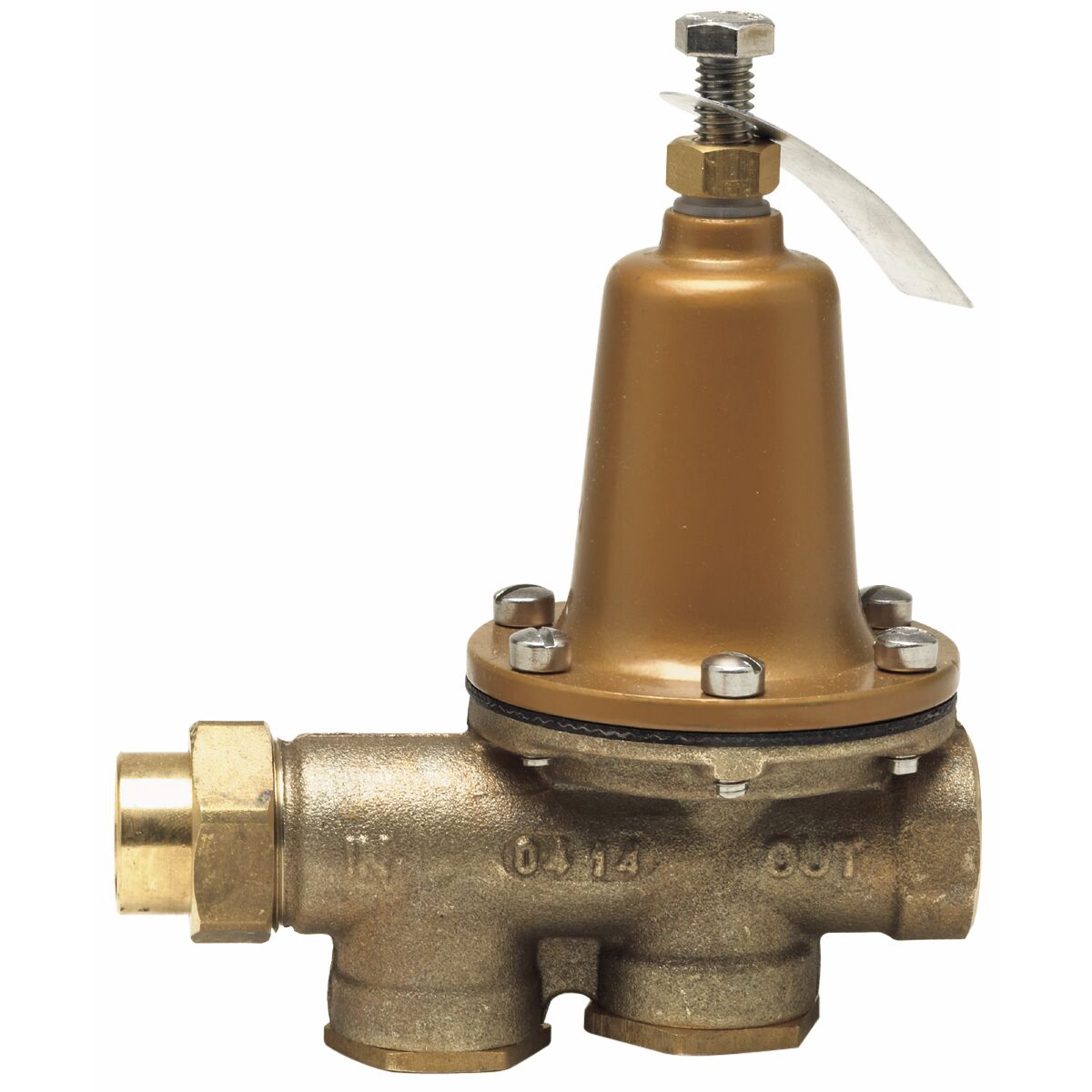

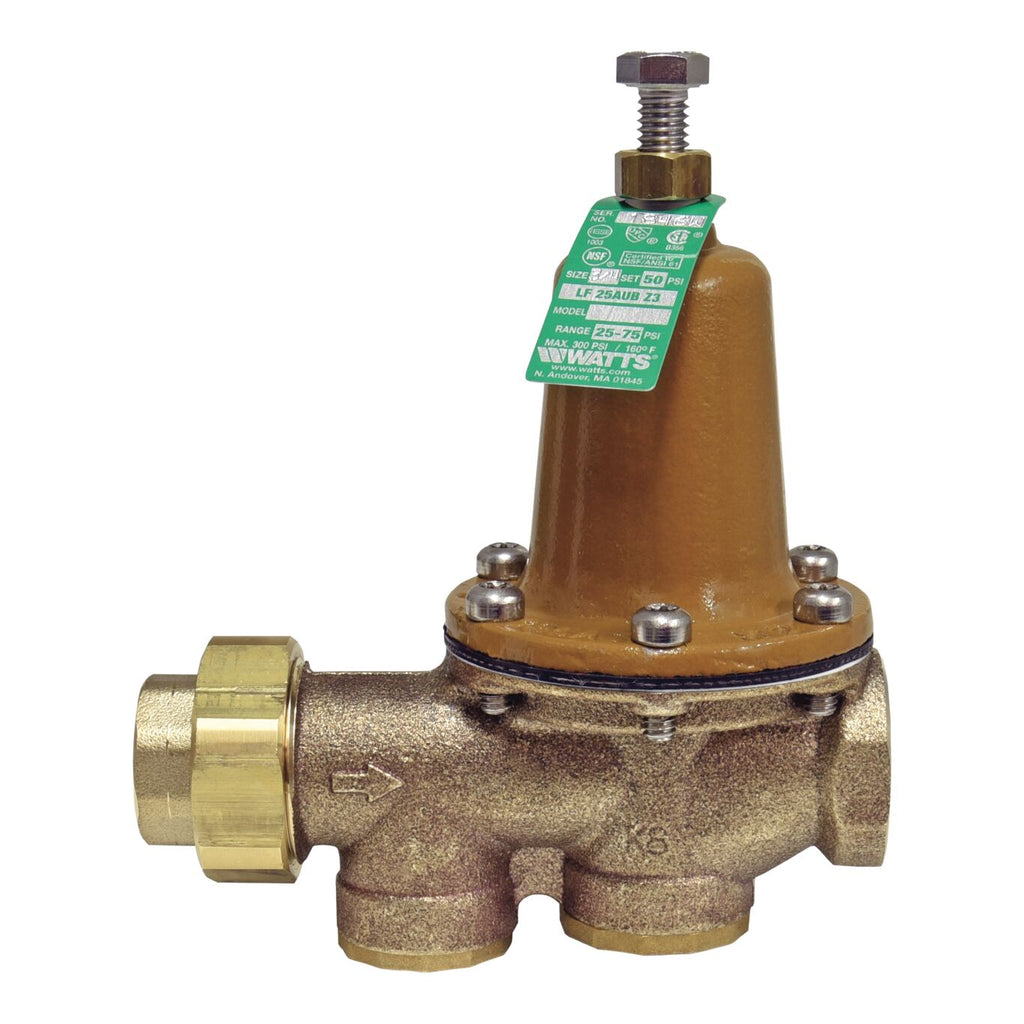

Watts 0009257 LF25AUB-Z3 3/4" Water Pressure Reducing Valve, NPT Union x FPT, 25-75 psi, Lead Free
This 3/4 inch lead free brass water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial, and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). The standard pressure setting is 50 psi (345 kPa) with maximum working pressure at 300 psi (20.7 bar).
Features
- Bypass feature controls thermal expansion pressure
- Sealed spring cage with stainless steel cage screws
- Integral stainless steel strainer removable for cleaning
- Replaceable seat module
Specifications
|
Adjustable Reduced Pressure Range: |
25 to 75 psi |
| Adjustable Reduced Pressure Range-BAR: | 1.7 to 5.2 |
| Body Material: | Lead Free Copper Silicon Alloy |
| Disc Material: | EPDM |
| Inlet Connection Size: | 3/4" NPT |
| Inlet Connection Type: | Union Female Threaded |
| Outlet Connection Size: | 3/4" NPT |
| Outlet Connection Type: | Female Threaded |
| Lead Free: | Yes |
| Maximum Operating Temperature: | 180°F |
| Maximum Working Pressure: | 300 psi |
| Minimum Temperature: | 33°F |
| Strainer: | Yes |
| Strainer Material: | Stainless Steel |
| Thermal Expansion Bypass: | Yes |
