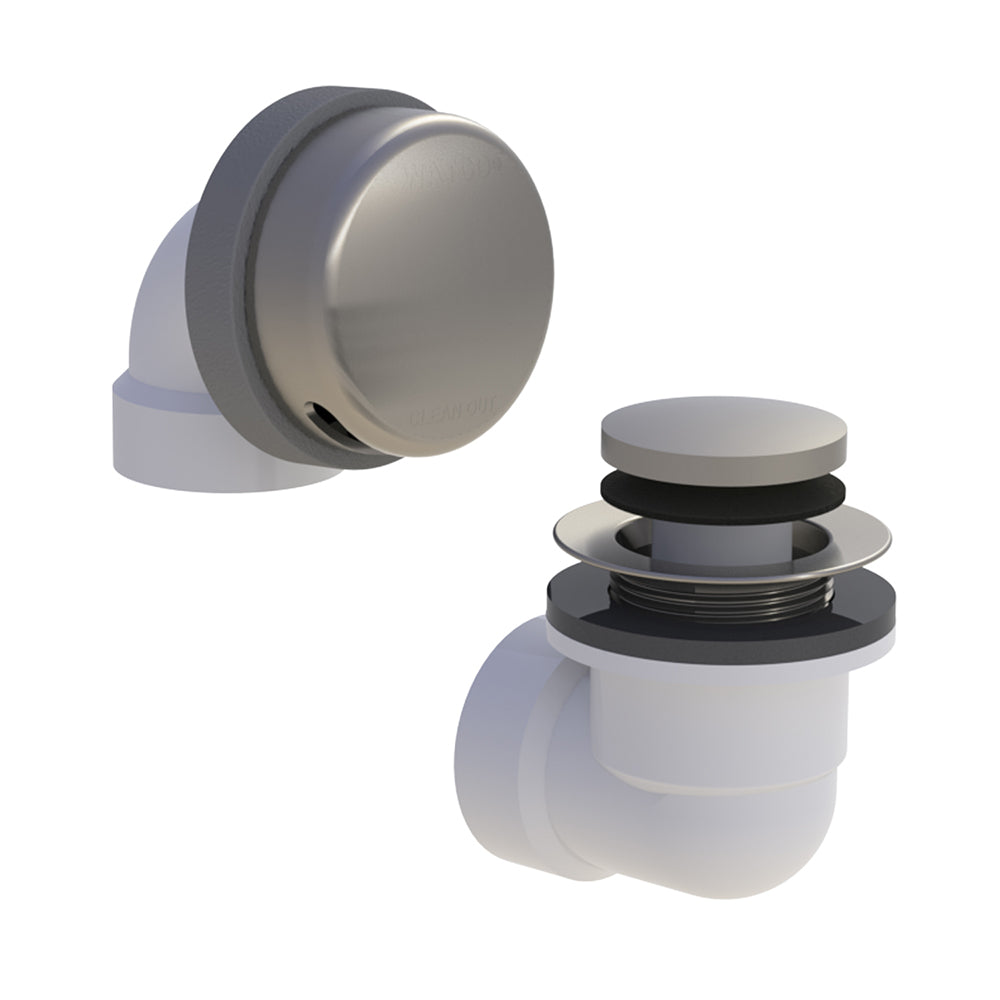

Watco 901-FA-PVC-BN Innovator 901 Series 1/2 Kit Schedule 40 (PVC) Bath Waste, Foot Actuated, Brushed Nickel

The Watco 901 Innovator Half kit is a sturdy 1.5 in. Schedule 40 PVC pipe with solvent-weld assembly. The half-kit includes the overflow and drain elbows, overflow plate assembly, test plug, membrane and stopper and drain. The 900 series eliminates all screws. The bath waste also eliminates leaks due to loose overflow attachments.

• Eliminates all screws
• Eliminates need for separate overflow test plug
• Eliminates leaks due to loose overflow attachment
• Eliminates dual inventory of one- and two-hole overflow plates
• Threads:
  • 1-1/2" Coarse Thread
  • 1.865" Major Diameter (outside thread diameter)
  • 11.5 threads per inch
