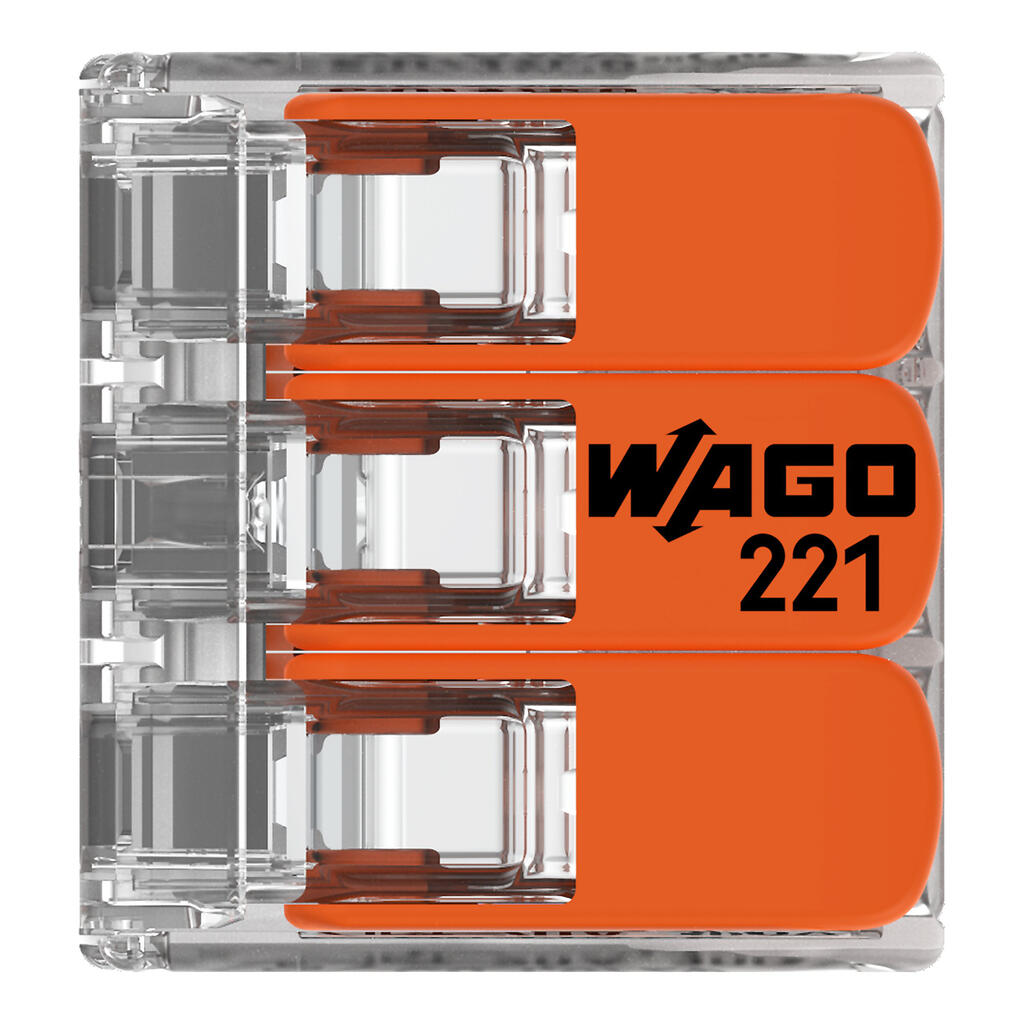

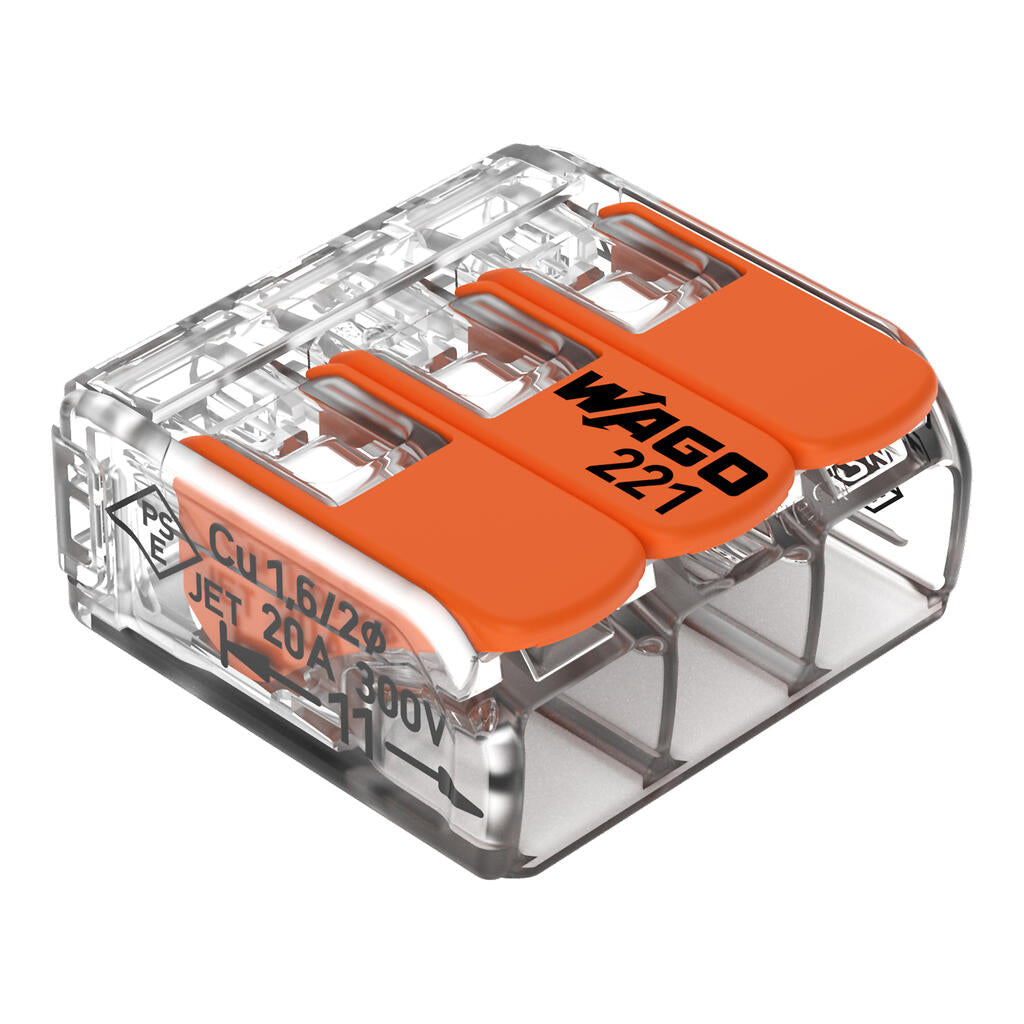

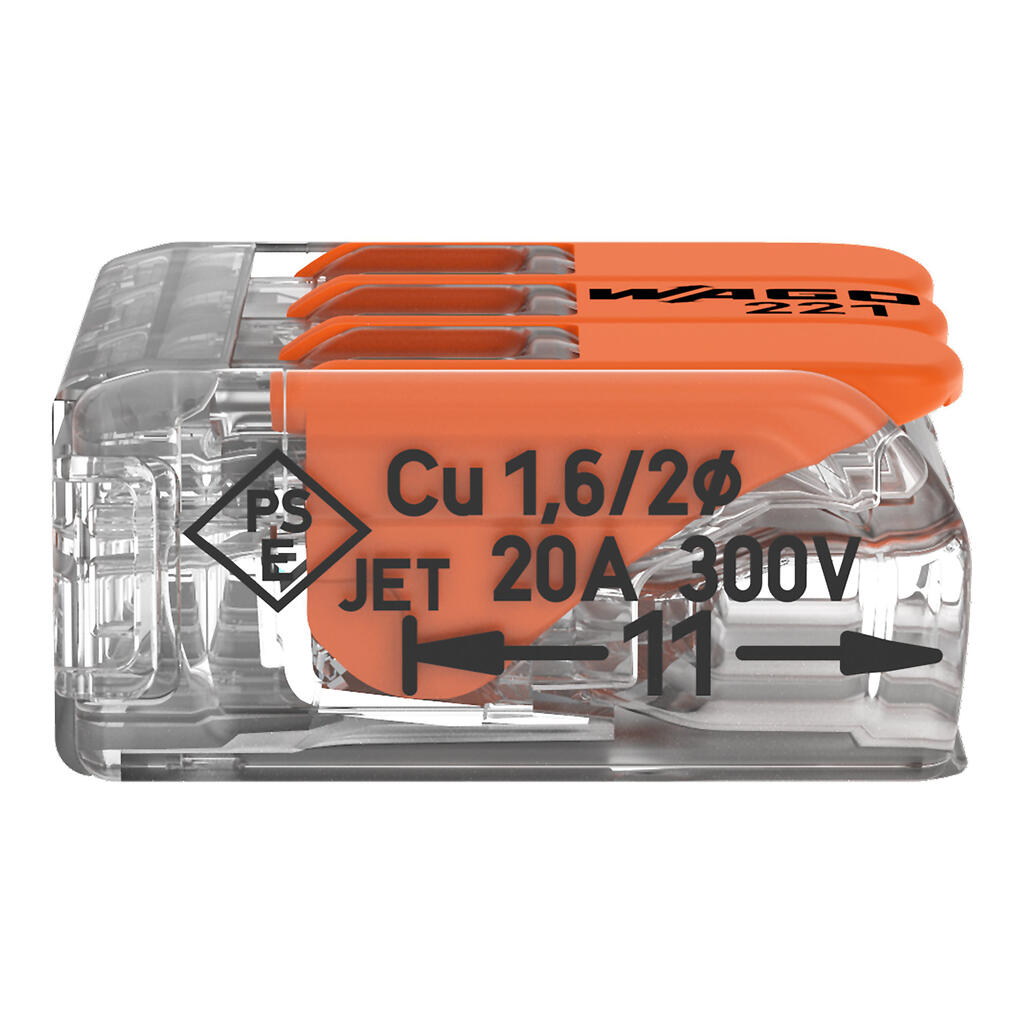

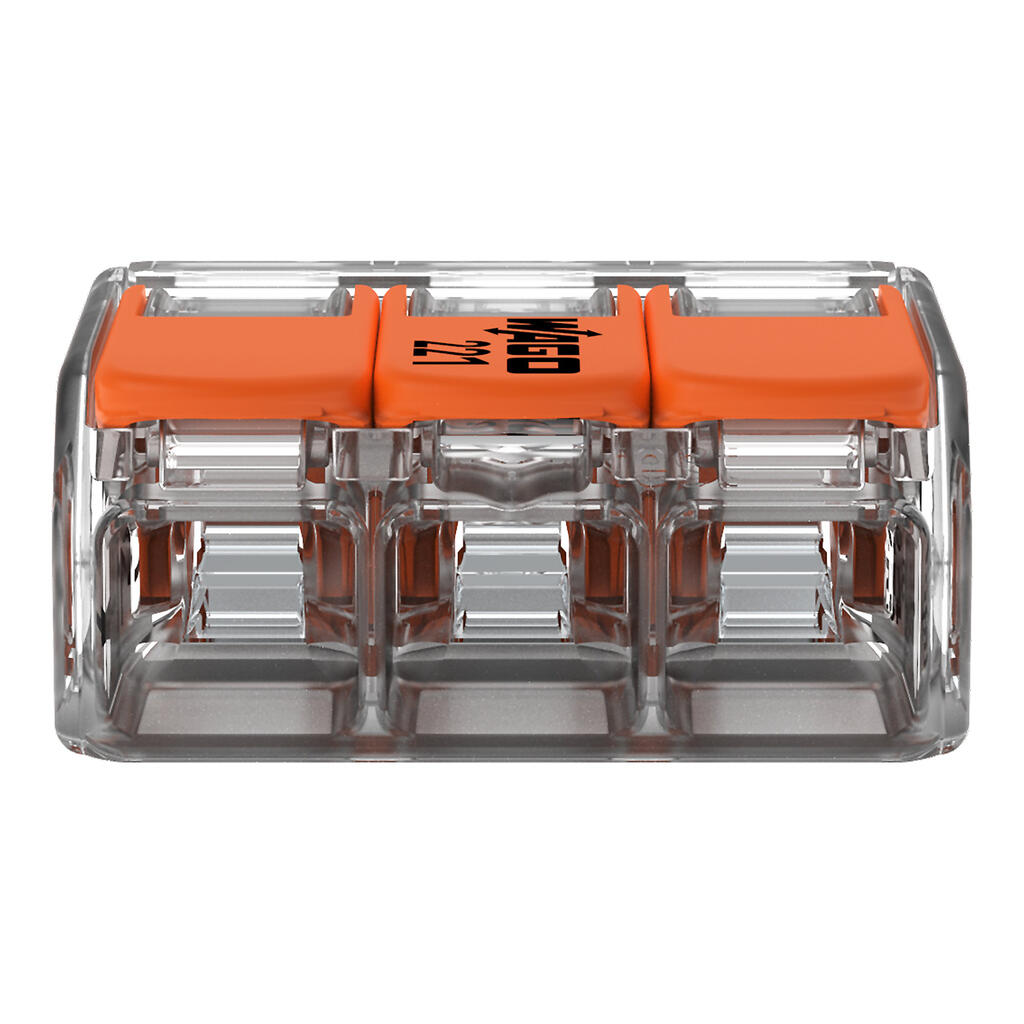

Wago 221-413 Compact Splicing Connector, 3-Conductor, with Operating Levers, 12 AWG, Transparent Housing

The WAGO 221-413 is a compact splicing connector designed to simplify the process of connecting three conductors. With its easy-to-use lever mechanism, installation is straightforward—just lift the lever, insert the conductor, and push it back down. This tool-free approach saves time and effort, especially in fast-paced installation environments.

The connector supports solid, stranded, and fine-stranded wires ranging from 24 to 12 AWG, making it a versatile choice for a wide range of applications. Its transparent housing allows for quick visual inspection, helping ensure proper conductor placement and secure connections. Thanks to its compact size, the 221-413 fits easily into tight spaces, such as junction boxes and control panels.

• Connection technology: CAGE CLAMP®
• IEC and UL approved
• Orange and transparent polycarbonate

BENEFITS:

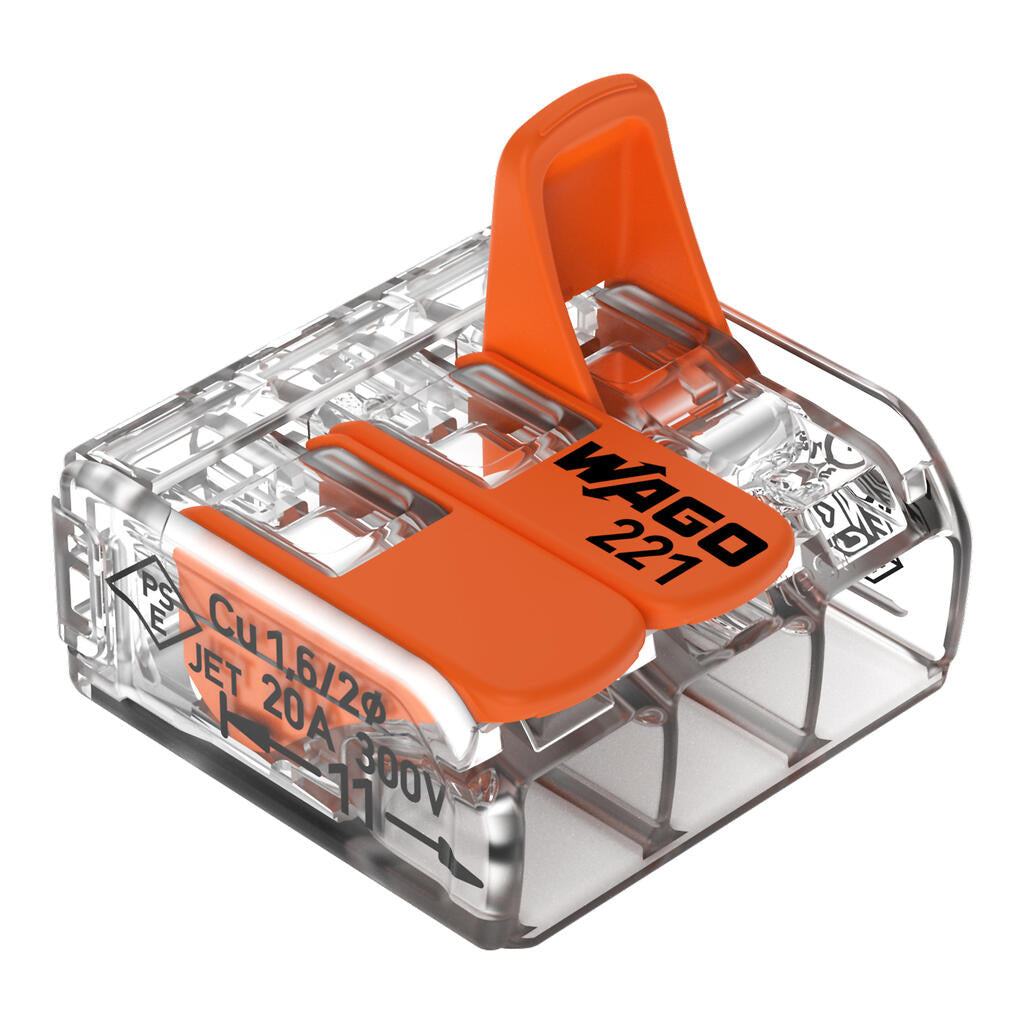

• Ease of use – pull the lever up, insert a conductor and push the lever back down

• Available as 2-, 3- and 5-wire connectors

• Easily terminate conductors from 24 to 12 AWG

• Connect solid, stranded and fine-stranded conductors

• Time savings for installers and device manufacturers

• Quickly install devices with higher levels of power consumption

• Safely install long cable runs with larger conductor cross sections

• Mounting carrier for installation conforms to standards

• Custom carriers are possible

SPECIFICATIONS:

• IEC overvoltage category:  II

• Nominal voltage:  450 V

• Rated surge voltage:  4 kV

• Rated current:  32 A

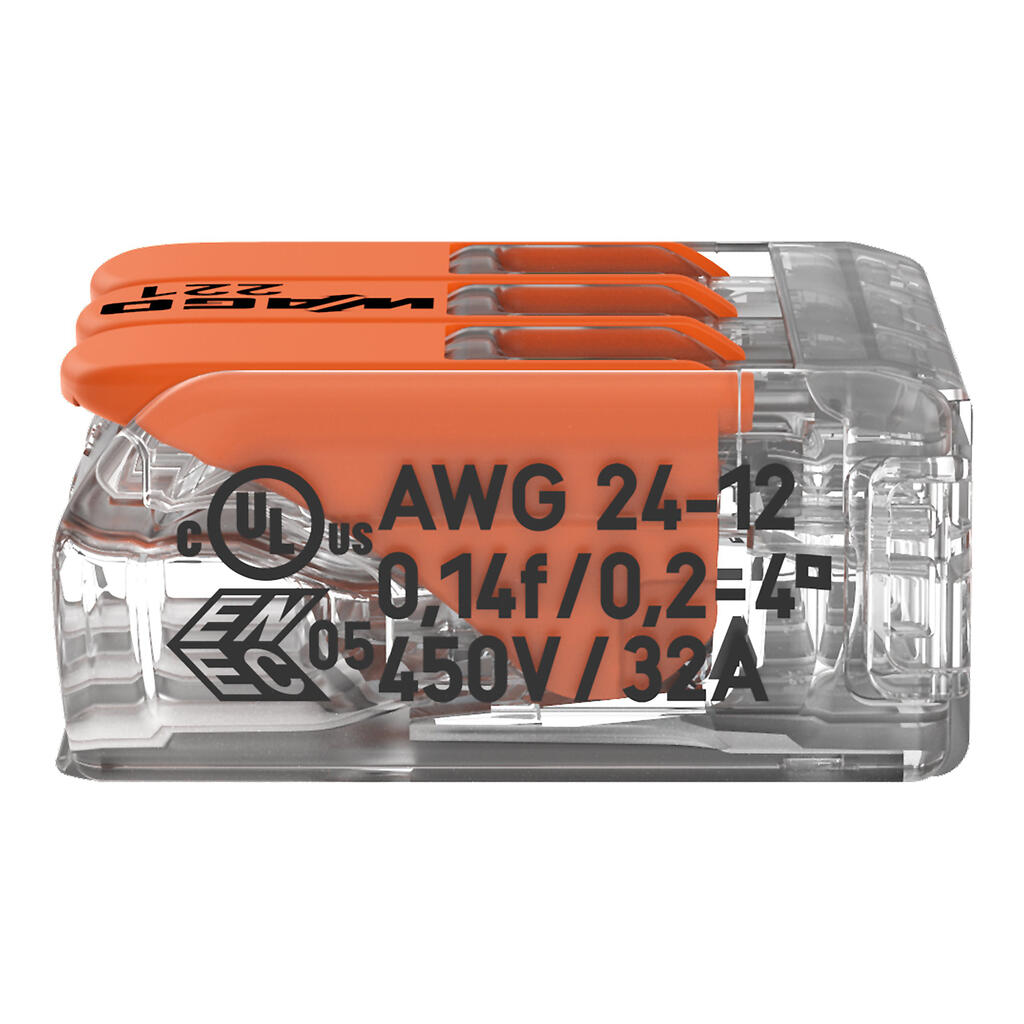

• Solid conductor, stranded conductor, and fine-stranded conductor:  0.2 … 4 mm² / 24 … 12 AWG; 0.2 … 4 mm² / 24 … 12 AWG; 0.14 … 4 mm² / 24 … 12 AWG

• Flammability class per UL94:  V2
