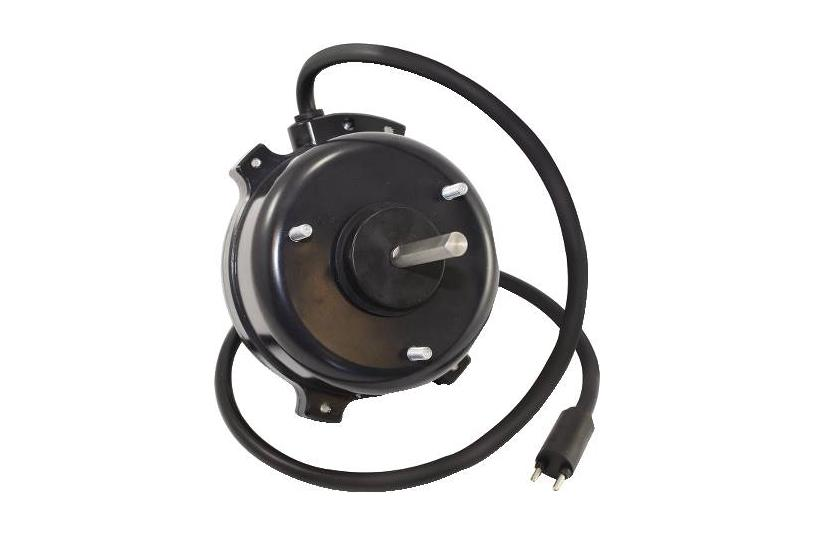

US Motors EC5407E RESCUE® ECM Walk-In Evaporator Motor, 115-230V, 1/25-1/15 HP, 1550-1625 RPM, 3-Stud
Save 13%
Original price
$160.00
Current price
$139.82
SKU EC5407E
US Motors EC5407E RESCUE® ECM Walk-In Evaporator Motor, 115-230V, 1/25-1/15 HP, 1550-1625 RPM, 3-Stud
High-Efficiency ECM Refrigeration Motor designed for Walk-In Coolers / Freezer Applications
- IP67 Dust Tight with All Angle Moisture Protection
- High Efficiency up to 70%
- UL/CUL Approved
- Operating Temperature Range -40°C to 55°C
- Dual Voltage: No Connection Change Required
- Rated 50/60 Hertz
- Body Style - Low Profile
- Stainless steel shaft with flat
- Standard 10-32 Thread Mounting Studs
- 18" cord Lyall/OEM Plug
- Electronically Protected
- Robust Ball Bearing System
- Meets ATEX Directive 94/9/EC
| SPECIFICATIONS | |
| Motor Enclosure: | IP67 |
| HP: | 1/15-1/25 (50W-30W) |
| Voltage: | 115-230 |
| Ambient: | -40C to 55C |
| RPM: | 1550-1625 |
| Hertz: | 50/60 |
| Bearings: | Ball |
| Amps: | 0.14-0.72 |
| Phase: | 1 |
| Rotation: | CCWOSE |
| Mounting: | 3 Studs 120 degrees apart |
Cross Reference
| Industry Numbers: | 25318001, 25317901, 25317901S, 25318001S |
