What is a Rescue® Motor?

• Universal Replacement Motor for Condenser Fan and Direct Drive Blower Applications
• Multi-Horsepower PSC Motors
• Flexible Mounting Options
• Permanent Replacement Motors – There is no need to go back
• Designed to Allow Contractors to Stock Fewer Motor Models On Their Truck While Increasing the Service Level to Their Customers

How Does Multi Horsepower Work?

• A PSC Motor’s output RPMs vary based upon the driven load.
• Increases in loading will reduce the RPMs
• Decreases in loading will increase the RPMs towards Synchronous
• Specifically Designed Motor Windings and Speed Taps to Match HP Requirements and Speed for Each Application.
• Each Motor has More Copper (Windings) and Iron (Rotor Core) to Prevent Overheating.
• This Makes RESCUE® Motors Stronger

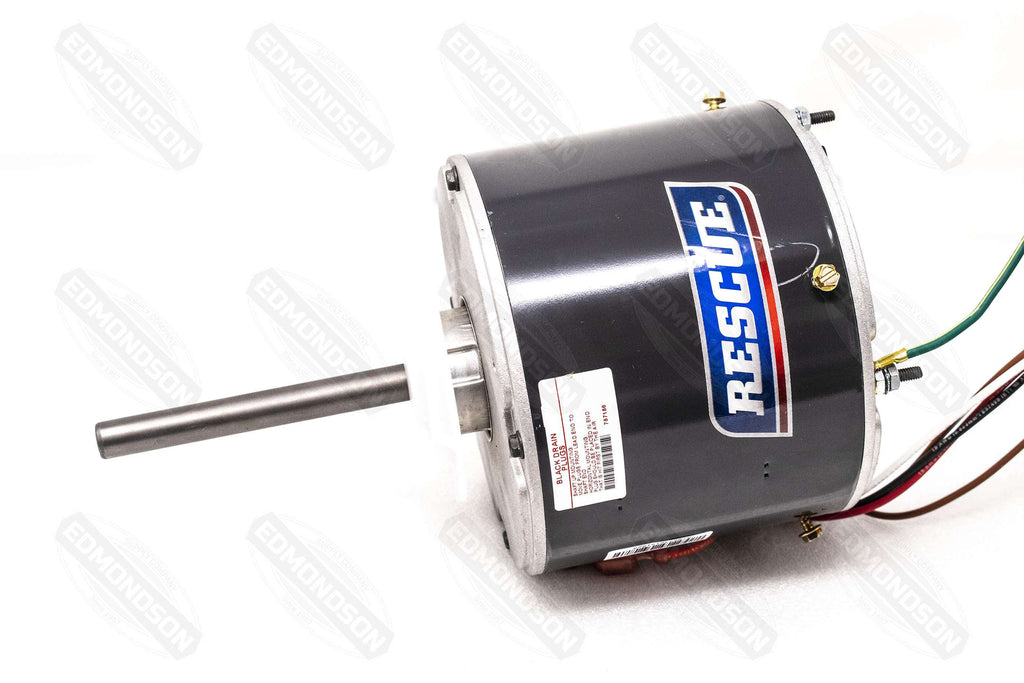

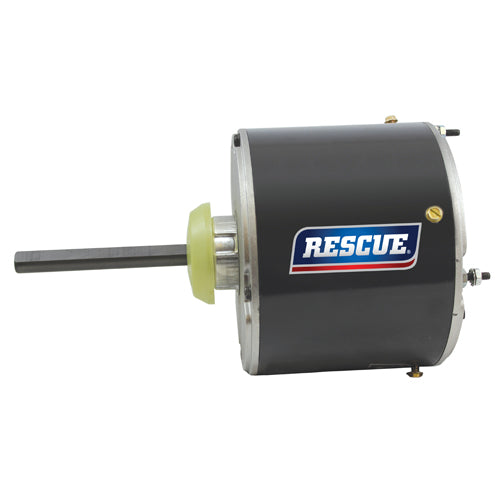

Condenser Fan Motor Features

• Permanent Split Capacitor (PSC) Design
• Totally Enclosed Air Over (TEAO)
• Automatic Thermal Protector
• Ball Bearings
• Reversible Rotation
• 48 Inch Leads
• All Angle Mounting

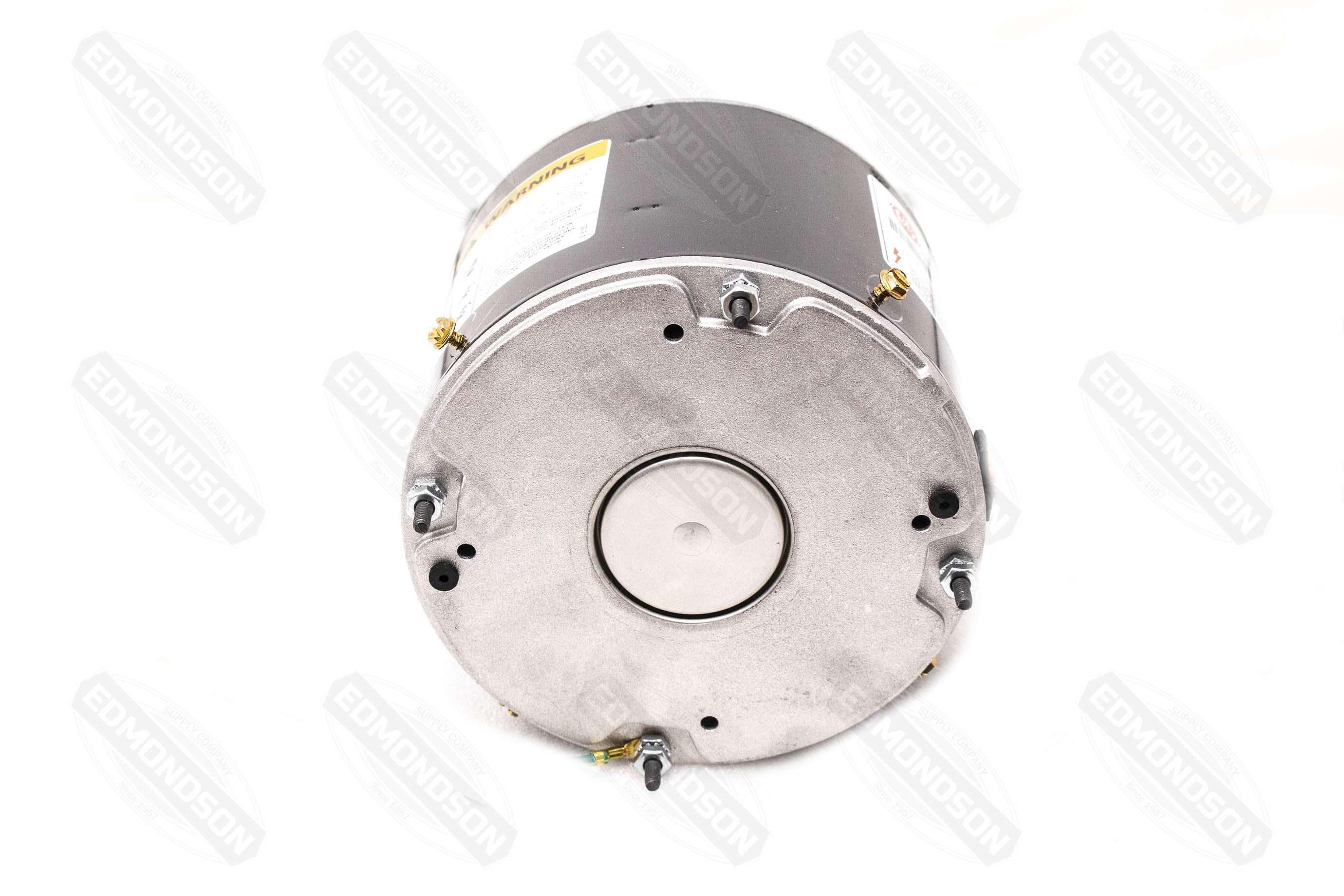

• Mounts by Thru-bolts, Belly Band (with Kit), Four Holes in the Shell or Four Blind Holes in the end shield. (New Screws Incl.)
• 60°C (140°F) Ambient Rated

Dimension Print
