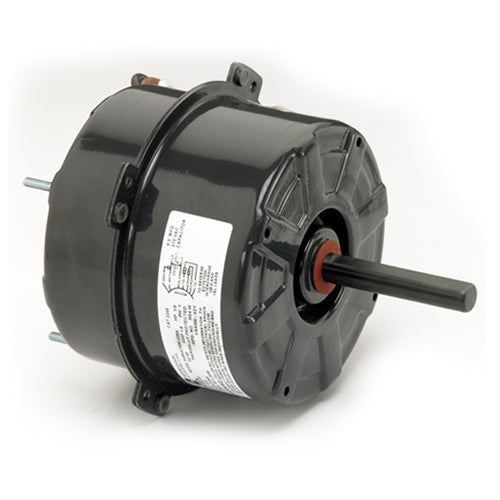

US Motors 2246 5" Condenser Fan Motor, 208-230V, 1/5 HP, 1075 RPM, PSC, TEAO

Save 19%
Original price $127.00
Current price $102.59
SKU 2246

US Motors 2246 5" "Clam-Shell" Condenser Fan Motor, 208-230V, 1/5 HP, 1075 RPM, PSC, TEAO

Residential condensing unit fan motor.



Condenser Fan Motor Features

  • 42" Leads
  • Shaft Down Mount
  • #8-32 Studs
  • Designed for use with 370V Capacitor
  • 1/2" Dia. Shaft with Flat
  • Reversible Rotation
  • Automatic Reset Thermal Overload Protector


SPECIFICATIONS
HP: 1/5
Voltage: 208-230
RPM: 1075
Bearings: Ball
Capacitor MFD: 5.0
Amps: 1.6
Phase: 1
Rotation: Reversible
