Description

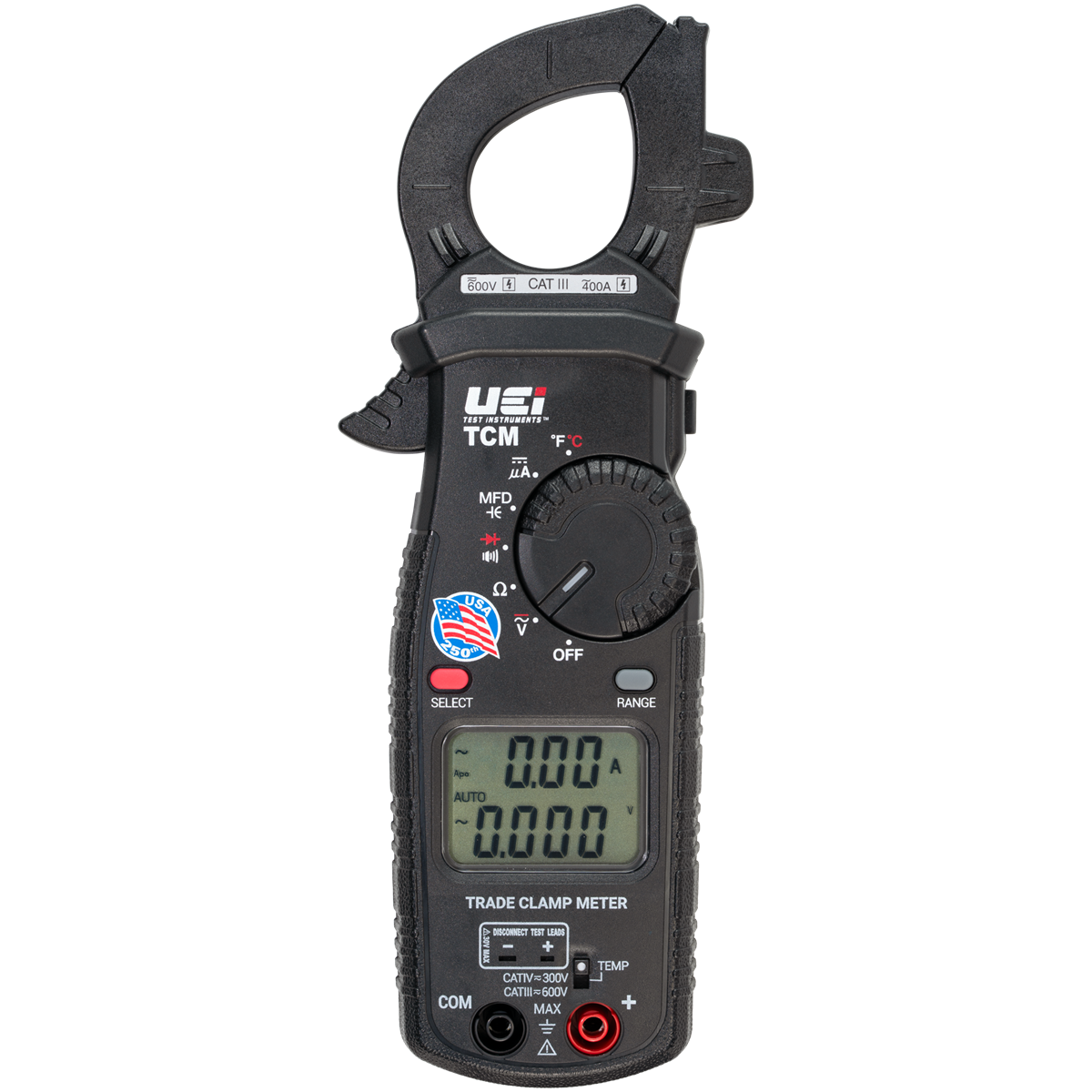

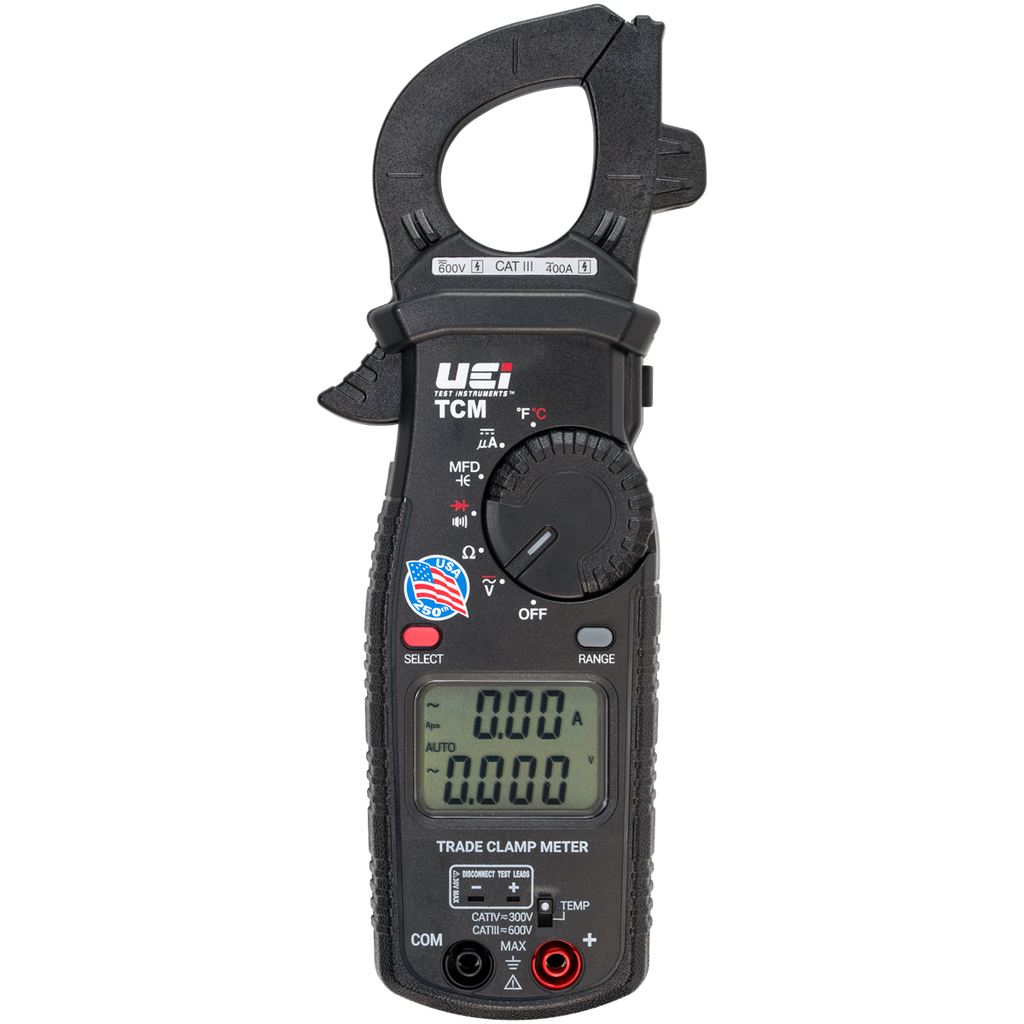

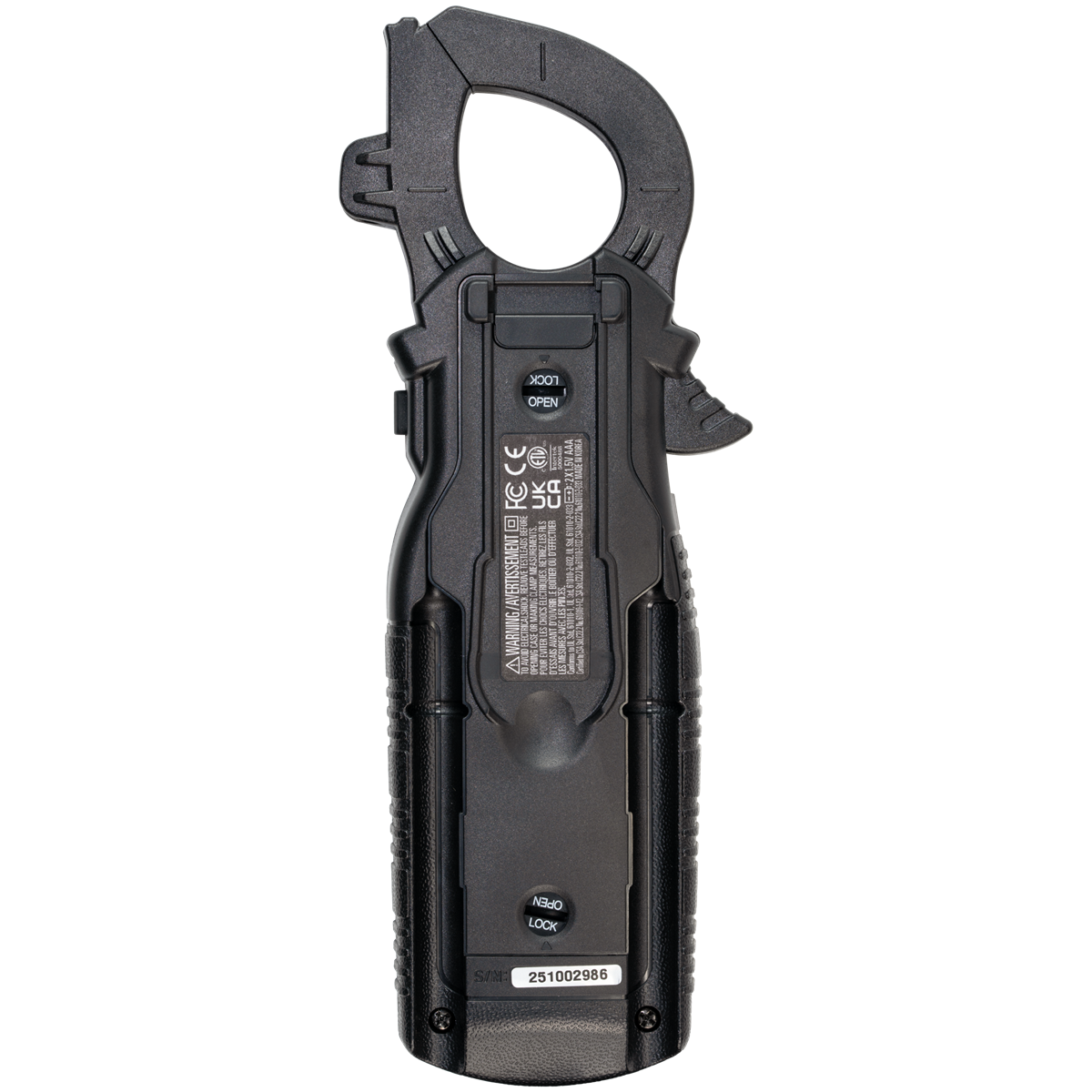

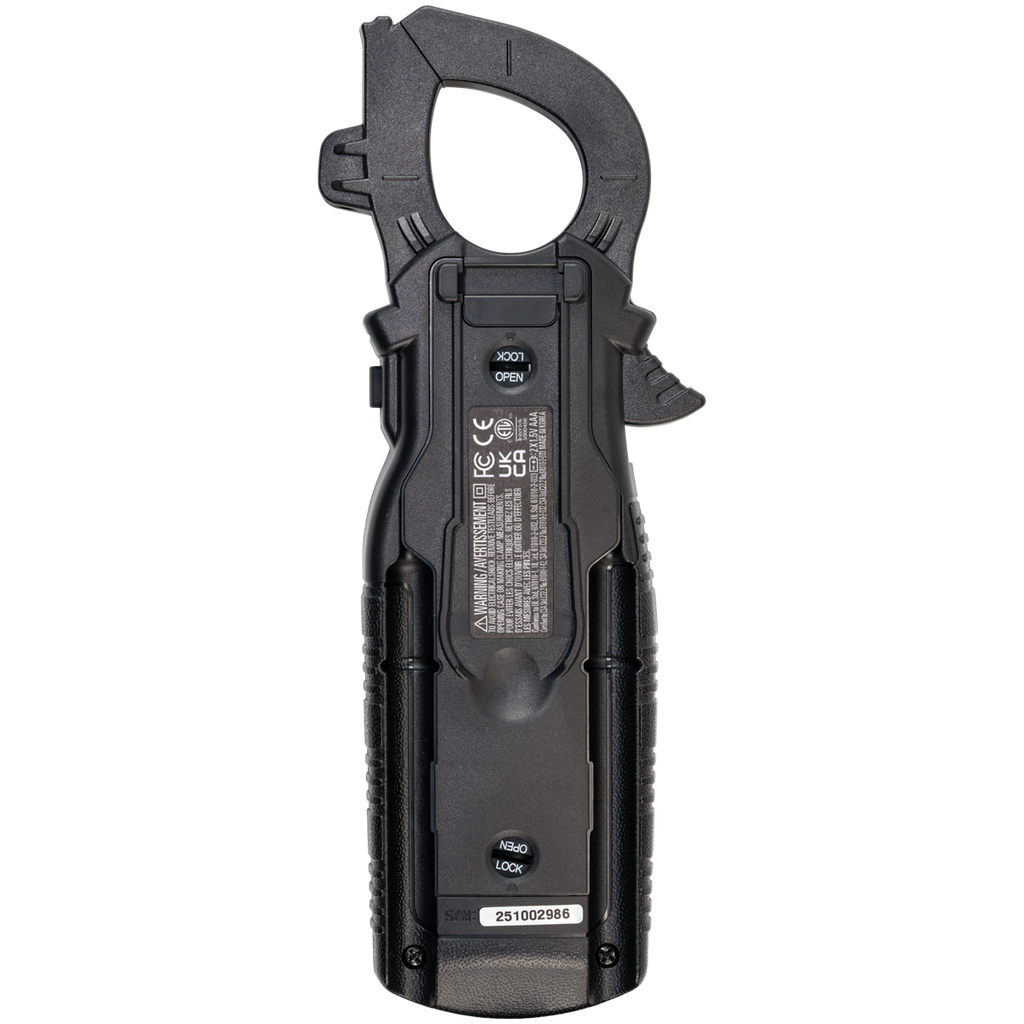

UEi TCM Commemorative Edition Trade Clamp Meter
Our UEi Trade Clamp Meter celebrates America’s 250th anniversary with this commemorative edition version 400A entry-level HVAC/R clamp meter offering standard testing functionality including resistance, capacitance, DC microamps, and temperature.

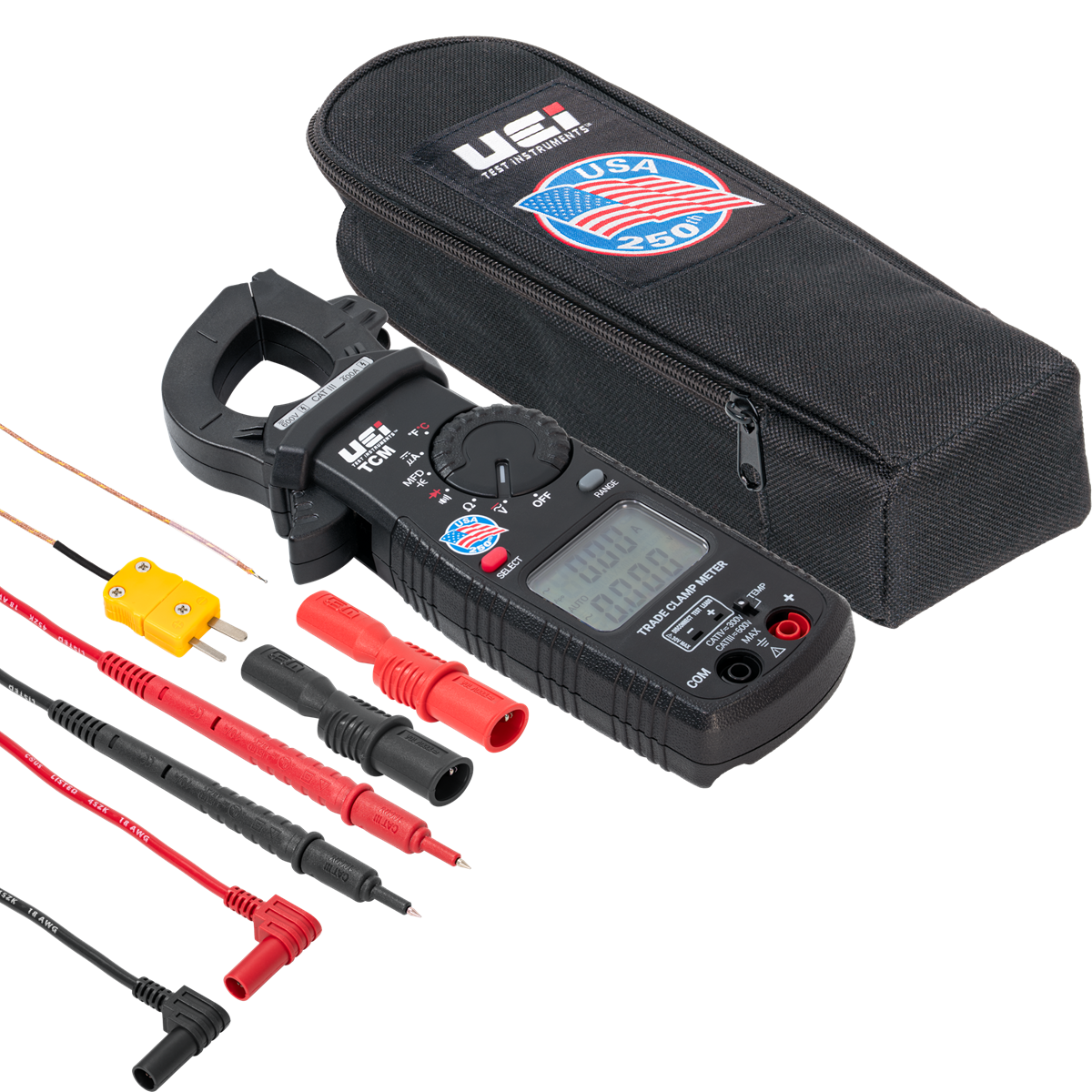

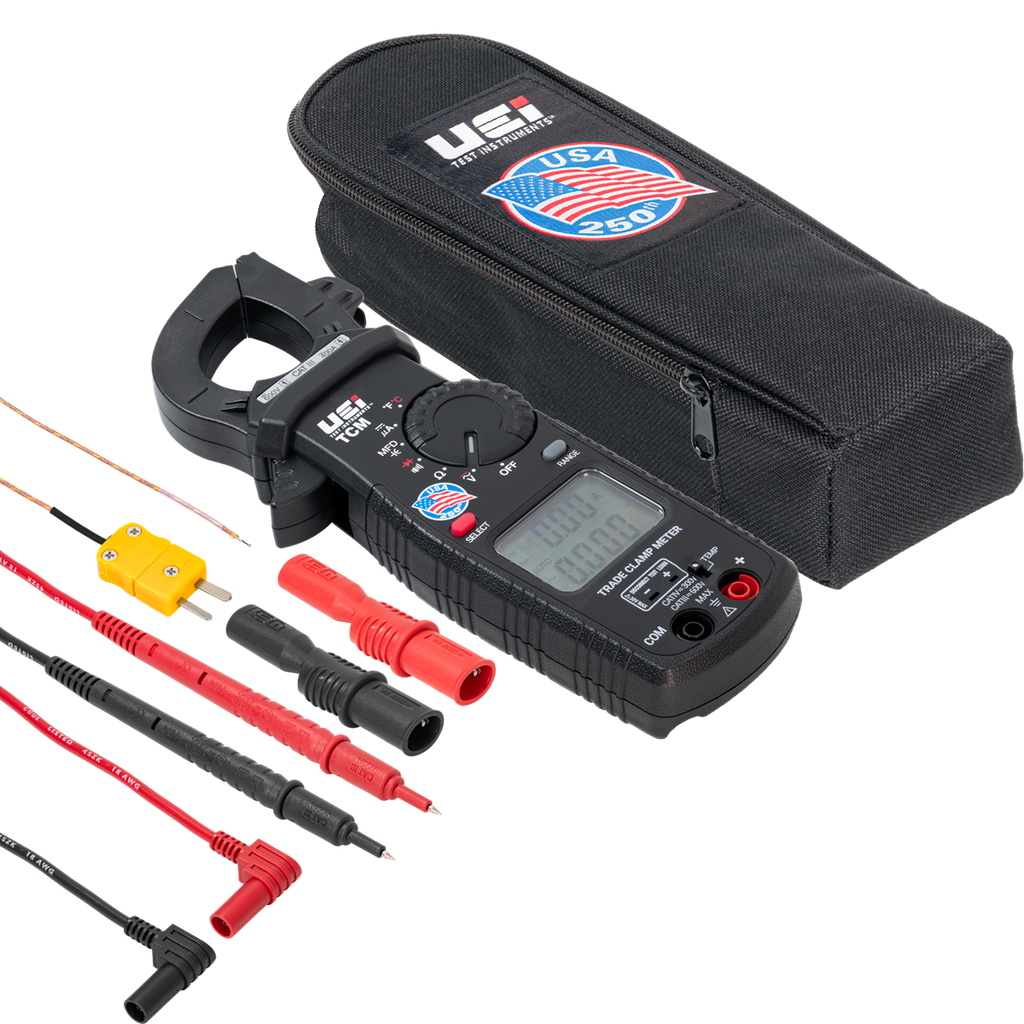

TCM includes a set of standard test leads, threaded alligator clips for hands-free testing, and a zippered carrying pouch.
The TCM is safety rated at CAT IV 300V / CAT III 600V and is certified by ETL to IEC 61010-1, 3rd edition.
Features:
| Dual Display: | Yes |
| Hold: | Yes |
| Ranging: | Auto/Manual |
| Auto Power Off: | Yes (30 min.) |
| Display Count: | 4,000 |
| Low Battery Warning: | Yes |
| Probe/Lead Storage: | Yes |
Functions:
| AC Current (Amps) - Jaw input: | 400AAC |
| DC Volts: | 1000VDC |
| AC Volts: | 750VAC |
| Resistance (Ohms): | 40MΩ |
| Diode: | Yes |
| Capacitance (Farads): | 4000µF |
| Continuity: | Yes |
| DC Micro Current (Amps) - Test lead input: | 2000µADC |
| Temperature: | -328°F to 2462 °F (-200°C to 1350°C) |
Standards:
| ETL Listed: | cETLus UL 61010-1:2012 |
| CAT Rating: | CATIV 300V/CATIII 600V |
| RoHS: | Yes |
| FCC/IC Compliant: | FCC |
Includes:
| Test Leads: | ATL55 |
| Alligator Clips: | AAC3 |
| Pouch/Case: | AC560 Commemorative Edition |
