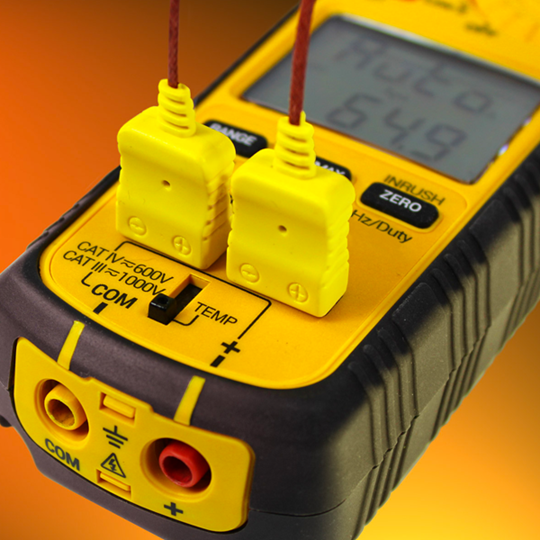

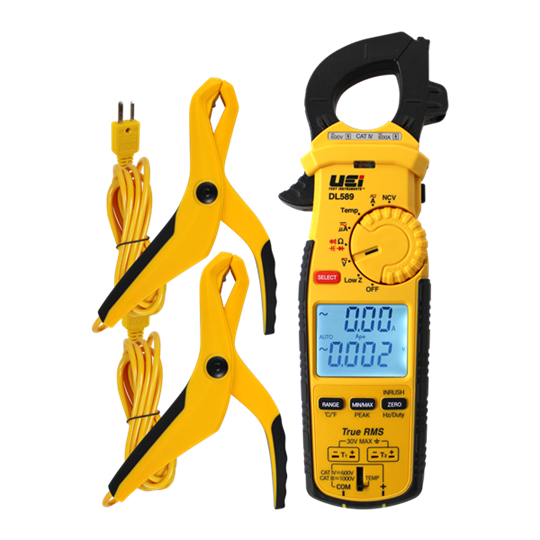

UEi DL589COMBO 600A TRMS Clamp Meter w/ DC Amps, Inrush, Magnet with ATTPC4 Pipe Clamps
Save 15%
Original price
$319.95
Current price
$271.96
SKU DL589COMBO
UEi DL589COMBO 600A TRMS Clamp Meter w/ DC Amps, Inrush, Magnet with ATTPC4 Pipe Clamps
True-RMS Dual Display 600A Clamp Meter w/ DC Amps & Differential
Features
| Min/Max | Yes |
| Hold | Yes |
| Ranging | Auto/Man |
| Auto power off | Yes |
| Display count | 6000 |
| Low battery warning | Yes |
| Backlight | Yes |
| Dual display | Yes |
| Work light | Yes |
| Temperature Inputs | K-Type |
| Temp differential | Yes |
| DC Zero | Yes |
| Protective boot or overmolding | Yes |
| Magnetic mount | Yes |
| Warranty | 2-year limited |
| Audible and visual alerts | Yes |
| K-type input | Yes |
| Digital | Yes |
Functions
| TRMS | Yes |
| AC Volts | 750V |
| DC Volts | 1000V |
| AC current (amps) | 600A |
| DC current (amps) | 600A |
| AC micro current (amps) | 2000µA |
| DC micro current (amps) | 2000µA |
| Resistance (Ohms) | 60MOhms |
| Capacitance (Farads) | 6000µF |
| Frequency (Hertz) | 99.99kHz |
| Duty cycle | 1.0 to 99.0% |
| Temperature | -328°F to 2462°F |
| Continuity | Yes |
| Diode | Yes |
| NCV Detection | Yes |
| Differential Temperature | Yes |
| Low Z |
Yes |
| LRA Inrush | Yes |
Standards
| UL Listed | UL 61010-1: 2012 |
| ETL listed | cETLus |
| CAT Rating | CATIV 600V |

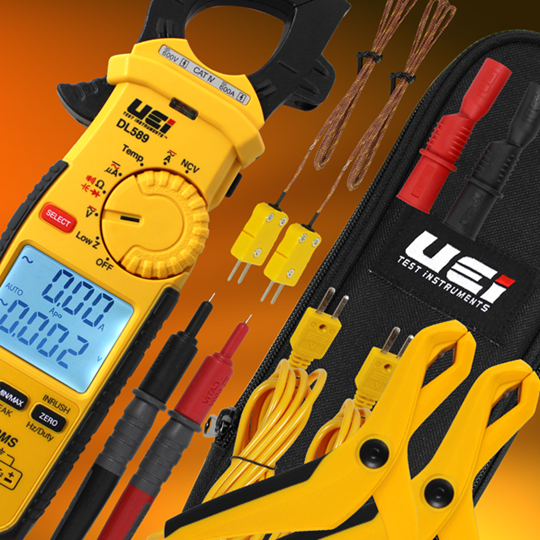

Includes
| Manual (Eng) | Yes |
| Test Leads | Silicone ATL58 |
| Alligator clips | AAC3 |
| Back probes | ABP3 (2) |
| Batteries | AAA (4) |
| Pouch/Cases | Zippered |
| Temp Probe | ATT29 (2) |
| Pipe Clamp Probe | ATTPC4 (2) |
| K-Type thermocouples | Yes |
