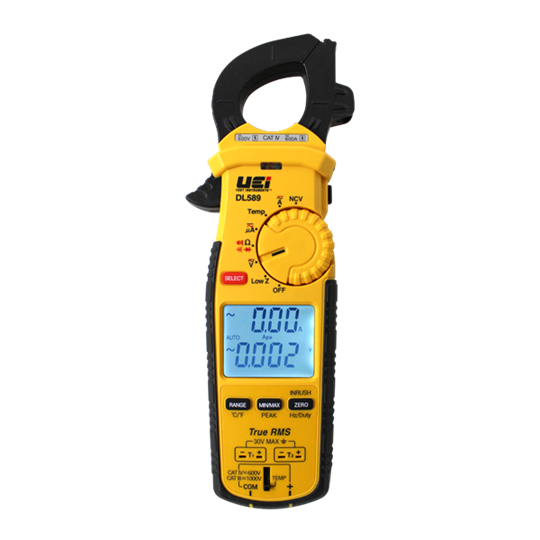

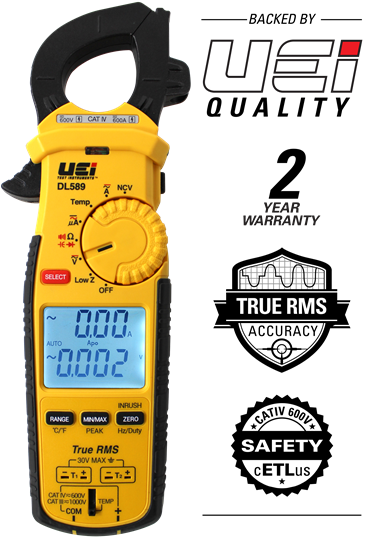

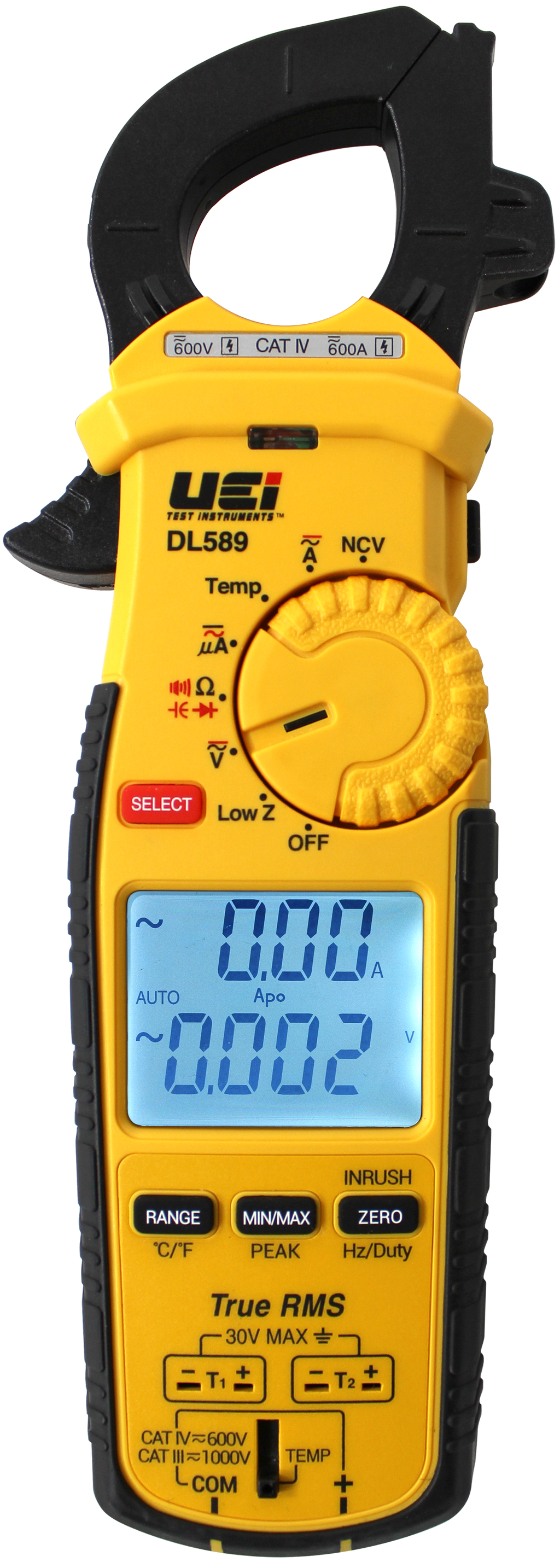

UEi DL589 600A TRMS Clamp Meter w/ DC Amps, Inrush, Magnet

Save 15%
Original price $239.95
Current price $203.96
Currently 1 in stock.

UEi DL589 600A TRMS Clamp Meter w/ DC Amps, Inrush, Magnet

True-RMS Dual Display 600A Clamp Meter w/ DC Amps & Differential


    Min/Max  Yes
    Hold  Yes
    Ranging  Auto/Man
    Auto power off  Yes
    Display count  6000
    Low battery warning  Yes
    Backlight  Yes
    Dual display  Yes
    Work light Yes

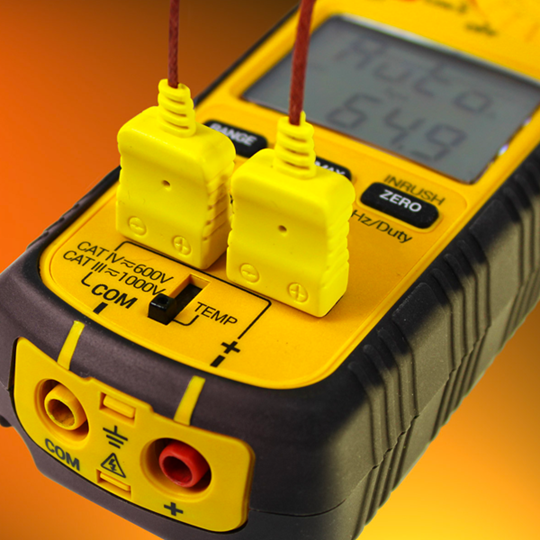

    Temperature Inputs  K-Type
    Temp differential Yes
    DC Zero Yes
    Protective boot or overmolding  Yes
    Magnetic mount  Yes
    Warranty  2-year limited
    Audible and visual alerts Yes
    K-type input  Yes
    Digital Yes


    TRMS  Yes
    AC Volts  750V
    DC Volts  1000V
    AC current (amps)  600A
    DC current (amps)  600A
    AC micro current (amps)  2000µA
    DC micro current (amps)  2000µA
    Resistance (Ohms)  60MOhms
    Capacitance (Farads)  6000µF
    Frequency (Hertz)  99.99kHz
    Duty cycle  1.0 to 99.0%
    Temperature  -328°F to 2462°F
    Continuity  Yes
    Diode  Yes
    NCV Detection  Yes
    Differential Temperature Yes
    Low Z
    LRA Inrush  Yes



    UL Listed UL 61010-1: 2012
    ETL listed  cETLus
    CAT Rating  CATIV 600V



    Manual (Eng)  Yes
    Manual (Spa)  Yes

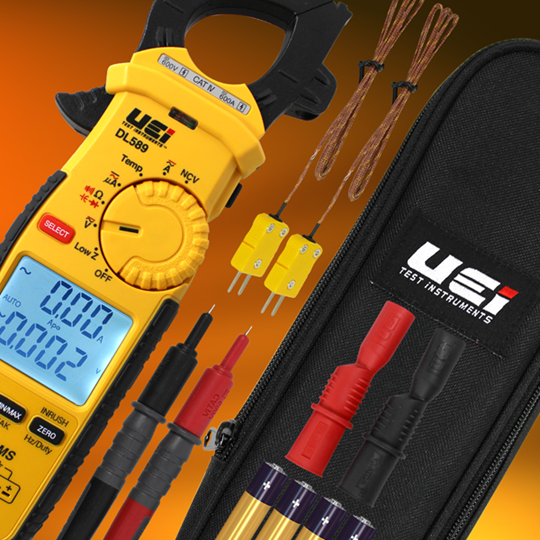

    Test Leads  Silicone ATL58
    Alligator clips  AAC3
    Back probes ABP3 (2)
    Batteries  AAA (4)
    Pouch/Cases Zippered
    Temp Probe  ATT29 (2)
    K-Type thermocouples Yes

    Data Sheet
