UEi HUB6 Smart Refrigerant Complete Kit

Save 20%
Original price $549.95
Current price $439.96
SKU HUB6

UEi HUB6 Smart Refrigerant Complete Kit

The HUB6 gives the ability to wirelessly get temperature and relative humidity via the WHP1 probes, get Vapor and Liquid pressures via the WPP1 probes and Vapor and Liquid temperatures via the WPC1 pipe clamps, all via the free UEi Hub App. Easy to use and a rugged design make the App and probes an excellent addition to any technician's toolbox.

    Wireless Hygrometer
    The WHP1 displays temperature split and psychrometric calculations on the "Air Side" screen in the App. The WHP1 features the thinnest probe at 1/4" diameter, which means smaller drill holes than current probes on the market. The magnetic mount holds the WHP1 onto the plenum placing the probe in optimum position for air stream measurements, no adjustments needed.

    Wireless Pressure Probe
    WPP1 has a pivoting hinge to allow access to connections in tight spaces. The Pass-through fitting allows users to connect directly to the probe without additional adapters for a more efficient work flow, saving money on refrigerant and only bringing out the hoses when they're needed.

    Temperature Pipe Clamp
    The WPC1 is a thermistor pipe clamp that plugs into the Pressure probe to send its data to the App. The narrow jaw allows users to get onto narrow pipe lengths, while the over-molded texture provides a secure grip. The unique spring design allows for easier opening and closing without compromising it's grasp of the pipe. The WPC1 is compliant to California's Title 24 standard.

    Solid Connection
    Setting up probes in the App is quick and easy. Once a probe is assigned to a part of the system, it will automatically reassign that probe each time the App is launched. The latest wireless technology allows up to 150 ft. connectivity range pending environmental conditions and if the connection drops, the probe will automatically reconnect to the App.

    UEi HUB App
    The UEi HUB App shows a system’s Liquid and Suction measurements and temperature split and psychrometric calculations in an intuitive easy-to-read display. Users can easily select from over 44 refrigerants as well as add or subtract favorites. Customize views to see basic "Air Side" measurements or all info at once. The user-friendly navigation bar allows users to quickly change units or make altitude compensation adjustments for more accurate air property readings at higher altitudes. The user-friendly navigation bar allows users to quickly change units, reassign probes or get support from the manual, web support or UEi's customer service.

    Product Functions:

    • In App temperature split and psychrometric calculations
    • In App system refrigerant charging calcukations
    • Pass through refrigerant ports for easily adding or recovering refrigerant from the system without disconnecting probes
    • 180˚ rotation for easy use in cramped spaces
    • Slimmest 1/4 inch hygrometer probe means smaller drill holes
    • Narrow pipe clamp jaw allows users to get into narrow pipe lengths
    • Wireless range: 150' (50m) pending environment
    • Requires FREE App "UEi HUB"
    • iOS® and Android™ compatible

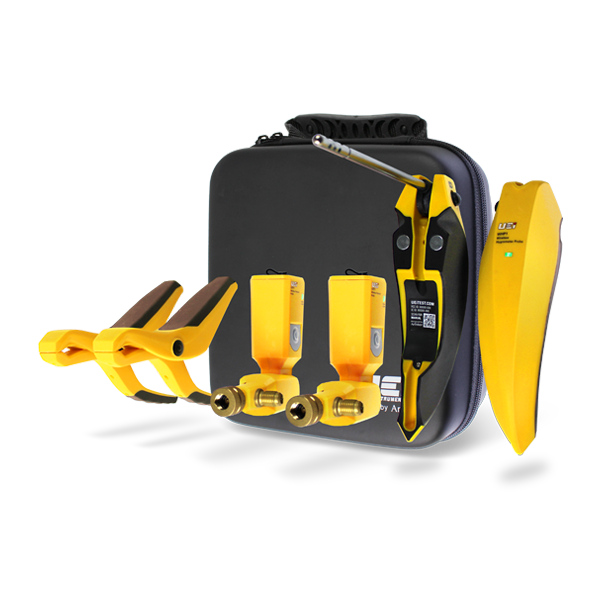

    Includes:

    • Pressure probes 2 (WPP1)
    • Pipe clamp probes (WPC1) (2)
    • Connector cables (2)
    • Carrying case
    • Batteries 2 (AA) and 2 (AAA)
