UEi C165+ Residential/Commercial Combustion Analyzer w/High ppm CO reading

Save 15%
Original price $1,899.95
Current price $1,614.96
SKU C165+
Currently 1 in stock.

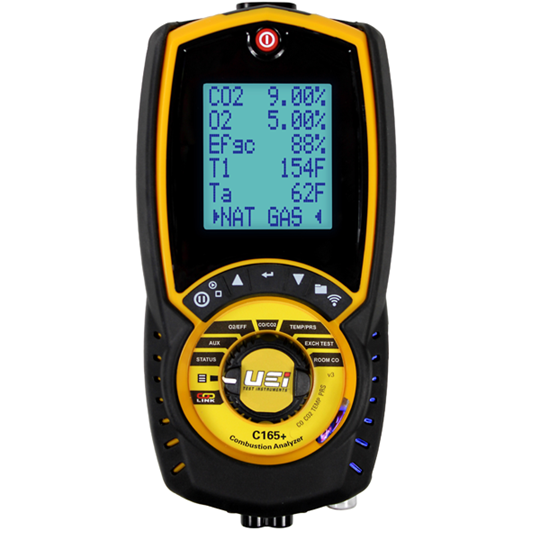

UEi C165+ Residential/Commercial Combustion Analyzer w/High ppm CO reading

Products usually ship within 1 business day.

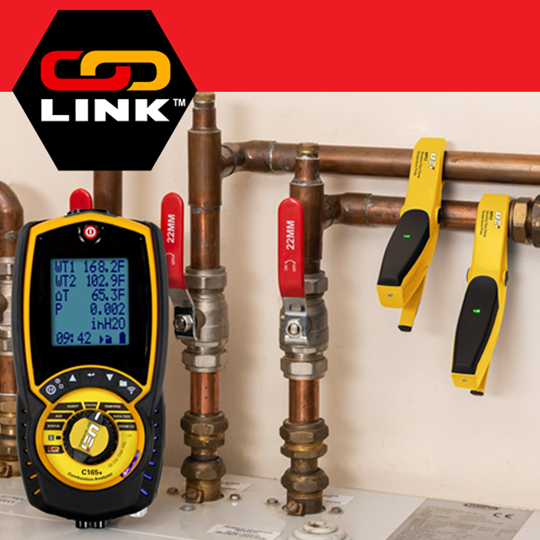

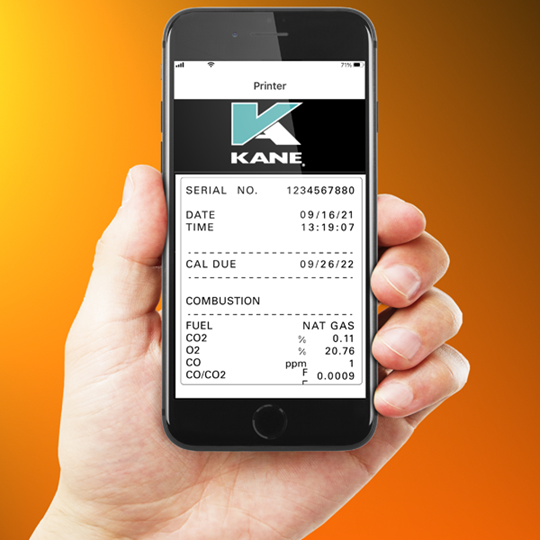

Backed by UEi Service+ to give up to 10 years’ warranty, next day recertification, and a reduced cost of ownership. The C165+ Residential/Commercial Combustion Analyzer is easy to use with a rugged design, multiple sensor protections, altitude compensation and differential pressure. Prints to optional printer and wireless App. The new LINK feature connects the included wireless pipe clamp temperature probes and other optional probes to the C165+. Essential information for installing and maintaining gas appliances.


CO:  10,000ppm (H2 compensated)
CO2:  20%
O2:  21%
Flue temperature:  32˚ to 1112˚F
Inlet temperature:  32˚ to 1112˚F
Heat exchanger test:  Yes
Pressure:  Yes
Differential Temperature:  Yes
K-type Temperature Range:  -40˚ to 950˚F (-40˚ to 510˚C)


Up to 10 Year warranty with annual recertification:  Yes
Eligible for UEi Service+:  Yes
3 Types of Sensor Protection:  Yes
NOx Filtered: Yes
Low Flow Detection:  Yes
Over Range Protection Pump:  Yes
Link to Wireless Probes:  Yes
Backlight:  Yes
Temperature Inputs:  K-Type
Temp differential:  Yes
Wireless output:  Yes
Protective boot or overmolding:  Yes
Dual Pressure Input:  Yes
Differential pressure:  Yes
Preprogrammed Fuels:  8
Start time:  30 second
High altitude compensation:  Yes
Memory Positions:  45
Magnetic mount:  Yes
Warranty:  10-Year limited
K-type input:  Yes
Digital:  Yes
Automatic fresh air purge:  Yes
Number of display parameters:  6 line
IR printer link: Yes
Protective Water Trap:  Yes



CE Conformity:  Yes
RoHS:  EC62321-2:2013, IEC62321-1:2013, IEC62321-3-1:2013, IEC62321-5:2013, IEC62321-4:2013, IEC62321-7-2:2017, IEC62321-7-1:2015, IEC62321-6:2015
REACH Compliant:  Yes
AHRI 1260 Standard:  Yes
Certification:  The C165+ is independently tested and certified to EN 50379, Parts 1-3 in accordance to 1st German Federal Emission Control Ordinance (BlmSchV)
EMC:  EN50270:2015
Safety:  EN61010-1:2010



Quick Start Guide:  Yes

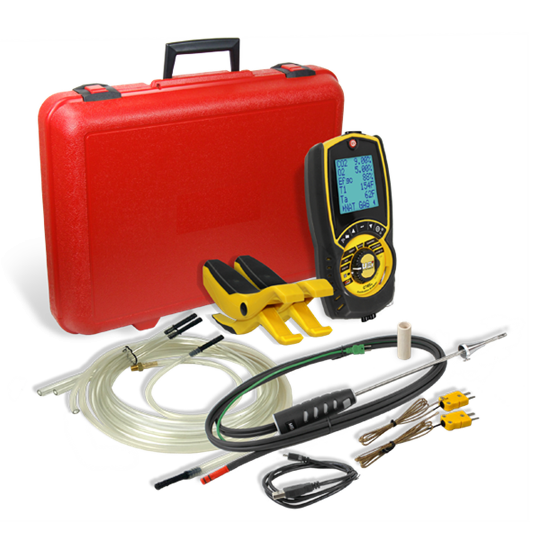

Batteries:  Rechargeable 3 (AA)
Pouch/Cases:  AC509
Flue probe:  CP2
USB cable:  AACA5
Particle filter:  17631
K-Type thermocouples:  ATT29 (2)
11000 Tubing:  Yes
Wireless Pipe Clamp Probes:  WPC2 (2)


Data Sheet
