Description

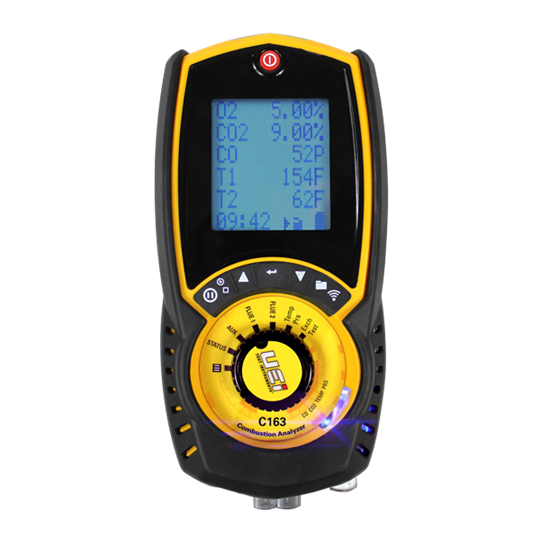

UEi C163 Residential/Commercial Combustion Analyzer w/ Pressure
Backed by UEi Service+ to give up to 10 years of warranty, SAME DAY GUARANTEED recertification, and a reduced cost of ownership.
The C163 Residential/Commercial Combustion Analyzer is easy to use and features differential pressure testing, purge pump protection for the CO sensor, wireless printing via the optional printer and free Kane Wireless Printer App, as well as our combustion line standard features.
This analyzer calculates essential information for installing and maintaining gas appliances.

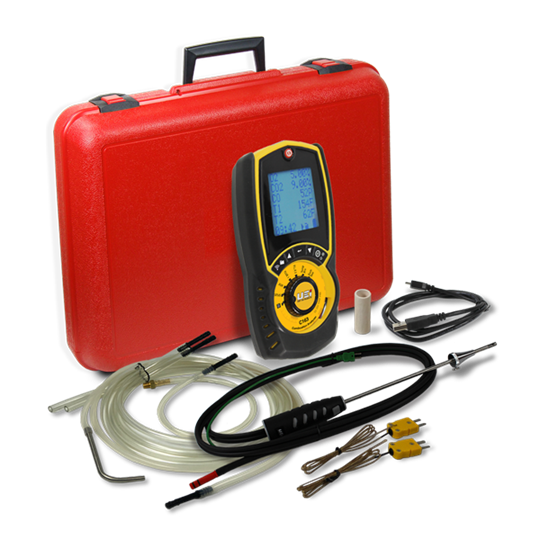

Includes: Analyzer, 2 Thermocouples, and Carrying Case
Functions:
| CO : | 2000 ppm |
| CO2: | 20% |
| O2: | 21% |
| Draft: | Yes |
| Flue temperature: | 32˚ to1112˚F (0˚ to 600˚C) |
| Inlet temperature: | 32˚ to1112˚F (0˚ to 600˚C) |
| Heat exchanger test: | Yes |
| Pressure: | Yes |
| Differential Temperature: | Yes |
| K-type Temperature Range: | -40˚ to 950˚F (-40˚ to 510˚C) |
Features:
| Backlight: | Yes |
| Worklight: | Yes |
| Temperature Inputs: | K-Type |
| Temp differential: | Yes |
| Wireless output: | Yes |
| Free App Available: | Yes |
| Protective boot or overmolding: | Yes |
| Sensor Technology: | EOS |
| Dual Presssure Input: | Yes |
| Differential pressure: | Yes |
| Preprogrammed Fuels: | 8 |
| Start time: | 60 second |
| High altitude compensation: | Yes |
| Memory Positions: | 30 |
| Selectable units: | Yes |
| Magnetic mount: | Yes |
| Warranty: | 1-Year limited |
| Recording/Data Logging: | Yes |
| Temperature probe: | K-Type |
| K-type input: | Yes |
| Real Time Clock: | Yes |
| Digital: | Yes |
| Automatic fresh air purge: | Yes |
| Number of display parameters: | 6 line |
| IR printer link: | Yes |
| NOx Filtered: | Yes |
Standards:
| CE Conformity: | Yes |
| RoHS: | Yes |
| REACH Compliant: | Yes |
| AHRI 1260 Standard: | Yes |
Includes:
| Quick Start Guide: | Yes |
| Batteries: | Rechargeable 3 (AA) |
| Pouch/Cases: | AC509 |
| Flue probe: | CP2 |
| USB cable: | Yes |
| Inlet tube/probe connector: | 11000 |
| Particle filter: | 17631 |
| Charger: | WIR00067 |
| K-Type thermocouples: | ATT29 (2) |
