Testo 0564 3002 82 - 300 Residential / Commercial Combustion Analyzer

Save 15%
Original price $1,650.00
Current price $1,402.50
SKU 0564 3002 82

Testo 0564 3002 82 - 300 Residential / Commercial Combustion Analyzer

Truly smart combustion analysis: that is what the testo 300 stands for. The compact combustion analyzer is fully operated via the large touch display - you can see all the measuring values without scrolling. The scratch-resistant screen in embedded in a robust housing which remains reliable even in tough day-to-day working conditions. Menus for the most important measurements are already stored in the testo 300 and reliably guide you through the relevant application.

The combustion analyzer is not familiar with waiting times or start-up phases, it is immediately ready to go at the touch of a button in standby mode. Documentation is dealt with just as quickly – with the testo 300, reports can be created and sent directly on site, with WiFi connection.

The testo 300 is available with a 2-year or 4-year warranty. There is also an optional NOx sensor available (with 2 year sensor warranty).

The O2 sensor, is extremely durable and in Longlife models, an optional automatic dilution up to a maximum of 30,000 ppm CO protects the CO sensor.

  • Large scratch-resistant 5" HD display with smart-touch operation and replaceable protective film
  • Stored, intuitive menus for all relevant measurements
  • 4 strong magnets with rubber coating for material friendly mounting
  • Ready to measure at the touch of a button in standby mode
  • Optional: extremely durable O2 sensor and automatic dilution up to 30,000 ppm CO
  • E-mailing of reports directly on site

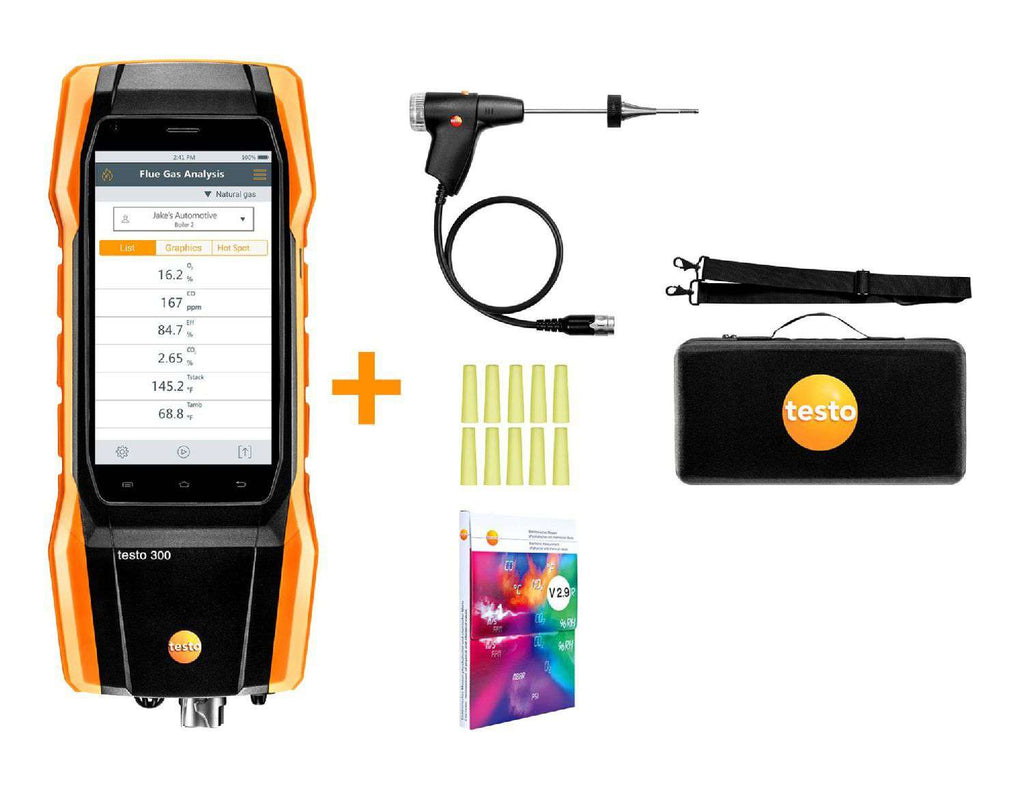

Includes

  • testo 300 combustion analyzer with O2 and CO sensor up to 4,000 ppm (0633 3002 70)
  • Power Adapter, includes USB Cable (0554 1105)
  • Compact basic flue gas probe, 12 inch, Ø 0.25 in., Tmax. 932°F; 5 foot hose; including dirt filters and cone for fixing (0600 9741)
  • Spare dirt filters, compact probe; 10 count (0554 0040)
  • EasyHeat PC software (0554 3332)
  • Soft transport case (0516 3001)



Technical Data

​
Temperature - Type K TC
Measuring range: -40° to 2192 °F / -40 to +1200 °C
Accuracy:

±0.9 °F (32.0° to 212.0 °F) / ±0.5 °C (0.0 to +100.0 °C)

±0.5 % of mv (Remaining Range)

Resolution:

0.1 °F (-40° to 1831.8 °F) / 0.1 °C (-40 to +999.9 °C)

±1 °F (Remaining Range) / 1 °C (Remaining Range)

Differential Pressure



Measuring Range: -40 to +80 InH₂O / -100 to +200 hPa
Accuracy:

±0.2 InH₂O (0 to +20.0 InH₂O) / ±0.5 hPa (0 to +50.0 hPa)

±1 % of mv (+20.0 to +40.0 InH₂O) / ±1 % of mv (+50.1 to +100.0 hPa)

±1.5 % of mv (+40.0 to +80 InH₂O) / ±1.5 % of mv (+100.1 to +200 hPa)

Resolution: 0.00 InH₂O / 0.01 hPa
Flue Gas O₂
Measuring Range: 0 to 21 Vol.%
Accuracy: ±0.2 Vol.%
Resolution: 0.1 Vol.%
Flue Gas Draft
Measuring Range: -4.00 to +16 InH₂O / -9.99 to +40 hPa
Accuracy:

±0.002 InH₂O (+0 to +0.0 InH₂O) / ±0.005 hPa (+0 to +0.1 hPa)

±0.01 InH₂O (+0.0 to +1.20 InH₂O) / ±0.02 hPa (+0.1 to +3.00 hPa)

±1.5 % of mv (1.20 to +16 InH₂O) / ±1.5 % of mv (3.01 to +40 hPa)

Resolution:

0.000 InH₂O (0 to 0.0 InH₂O) / 0.001 hPa (0 to 0.1 hPa)

0.00 InH₂O (Remaining Range) / 0.01 hPa (Remaining Range)

Efficiency (calculated)



Measuring Range: 0 to 120 %
Resolution: 0.1 %
Flue Gas Loss (calculated)
Measuring Range: 0 to 99.9 %
Resolution: 0.1 %
Flue Gas CO₂ calculation (calculated from O₂)
Measuring Range: Display range 0 to CO₂ max
Accuracy: ±0.2 Vol.%
Resolution: 0.1 Vol.%
Flue Gas CO (without H₂-compensation)
Measuring Range: 0 to 4000 ppm
Accuracy:

±20 ppm (0 to 400 ppm)

±5 % of mv (401 to 2000 ppm)

±10 % of mv (2001 to 4000 ppm)

Resolution:

1 ppm

Ambient CO



Measuring Range: 0 to 2000 ppm
Accuracy:

±10 ppm (0 to 100 ppm)

±10 % of mv (101 to 2000 ppm)

Resolution:

1 ppm

General Technical Data



Operating Humidity: 15 to 90 %rH non-condensing
Dimensions: 9.6 (including probe connection) x 3.9 x 2.3 LxWxH / 244 (including probe connection) x 98 x 59 LxWxH
Operating Temperature: 23° to 113 °F / -5 to +45 °C
Protection Class: IP40
Product Colour: black/orange
Display Type: 5.0" touch display, HD 1280*720 pixels, IPS (160 k)
Power supply: Rechargeable battery, USB mains unit
Guarantee: Gas sensors (O₂, CO) 24 months; rechargeable battery: 12 months; Thermocouple 12 months
Authorizations: TÜV-tested according to 1st German Federal Immission Control Ordinance (BImSchV) EN 50379, Parts 1-3
Warranty Conditions: https://www.testo.com/guarantee
Memory: 1,000,000 measuring values
Storage Battery Type: Lithium ion battery
Battery Life: 10 h
Storage Temperature: -4° to 122 °F / -20 to +50 °C
Weight: approximately 28.2 oz. / approximately 800 g
Charging Temperature: 32° to 113 °F / 0 to +45 °C
Differential Pressure 4 Pa measurement - Piezoresistive
Measuring Range: -0 to +0 InH₂O / -50 to +50 Pa
Accuracy:

±0.0 InH₂O (< 0 InH₂O) / ±0.3 Pa (< 10 Pa)

±3 % of mv (Remaining Range)

Resolution:

0.0 InH₂O / 0.1 Pa
