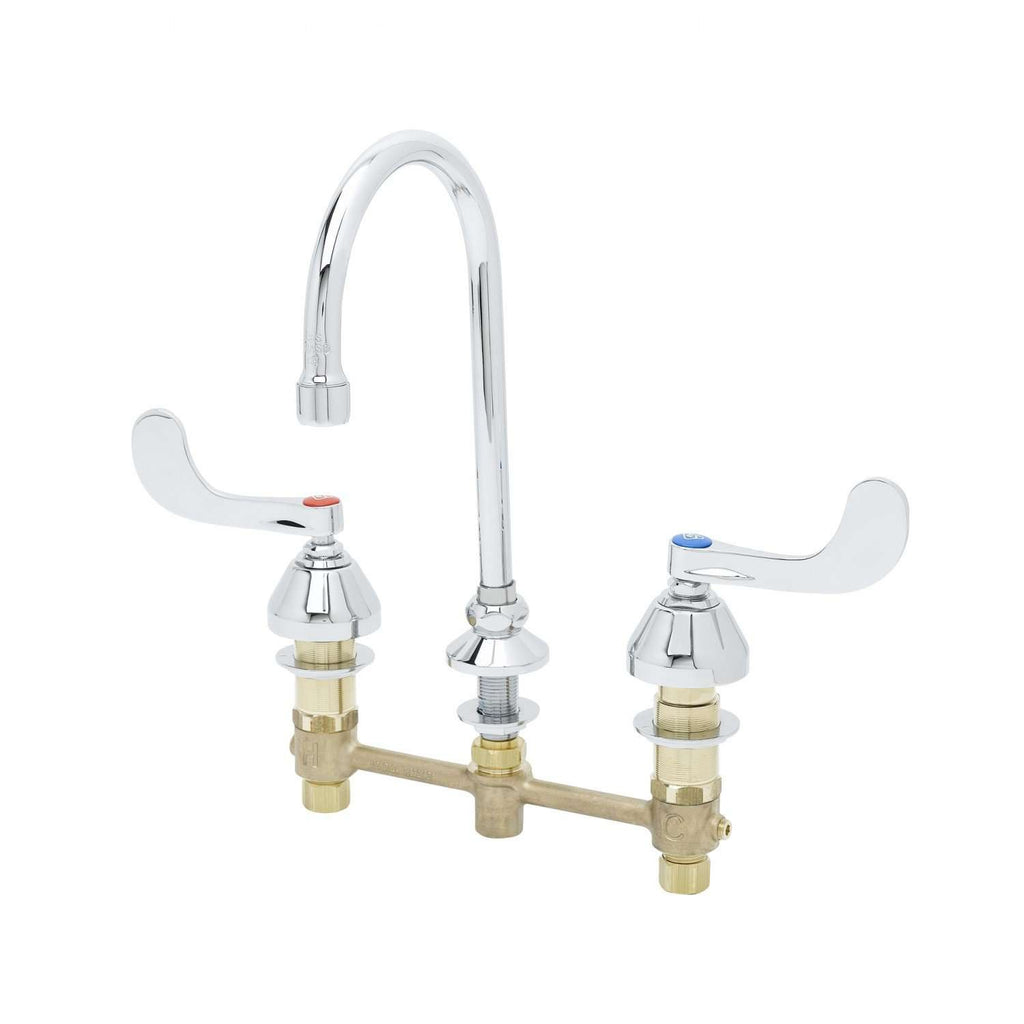

T&S Brass B-2866-05 Medical Lavatory Faucet, 8" Centers, Swivel/Rigid Gooseneck, 4" Wrist Action Handles

Save 45%
Original price $334.50
Current price $183.93
SKU B-2866-05

T&S Brass B-2866-05 Medical Lavatory Faucet, 8" Centers, Swivel/Rigid Gooseneck, Non-Splash Aerator, 4" Wrist Action Handles

8" concealed deck mount mixing faucet with forged brass body, 5 3/4" swivel/rigid gooseneck with 2.2 GPM aerator, compression cartridges with spring checks, 4" wrist action handles, chrome plated escutcheons and 1/2" NPT male inlets with coupling nuts. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.



FEATURES & BENEFITS

  • 8" EasyInstall concealed deck mount mixing faucet w/ forged brass body
  • 5 3/4" swivel/rigid gooseneck
  • Lock washer provided for rigid application
  • 2.2 GPM aerator, Series 1 (B-0199-01)
  • Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
  • 4" wrist action handles w/ color coded indexes
  • 1/2" NPT male inlets w/ coupling nuts
  • Material: Forged brass body, polished chrome plated brass tubular spout and chrome plated metal handles & escutcheons.
  • Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
  • Temperature: 40 F - 140 F (4.44℃ - 60℃)
  • 2.20 GPM @ 60 psi (8.33 L/min @ 4.14 bar)



PRODUCT COMPLIANCE

  • NSF/ANSI 61
  • ASME A112.18.1 / CSA B125.1
  • Low Lead Content (0.25% Max)
  • Commonwealth of Massachusetts
  • ANSI A117.1 (ADA)
  • BAA/ARRA
  • NSF/ANSI 372 (Lead Content)
