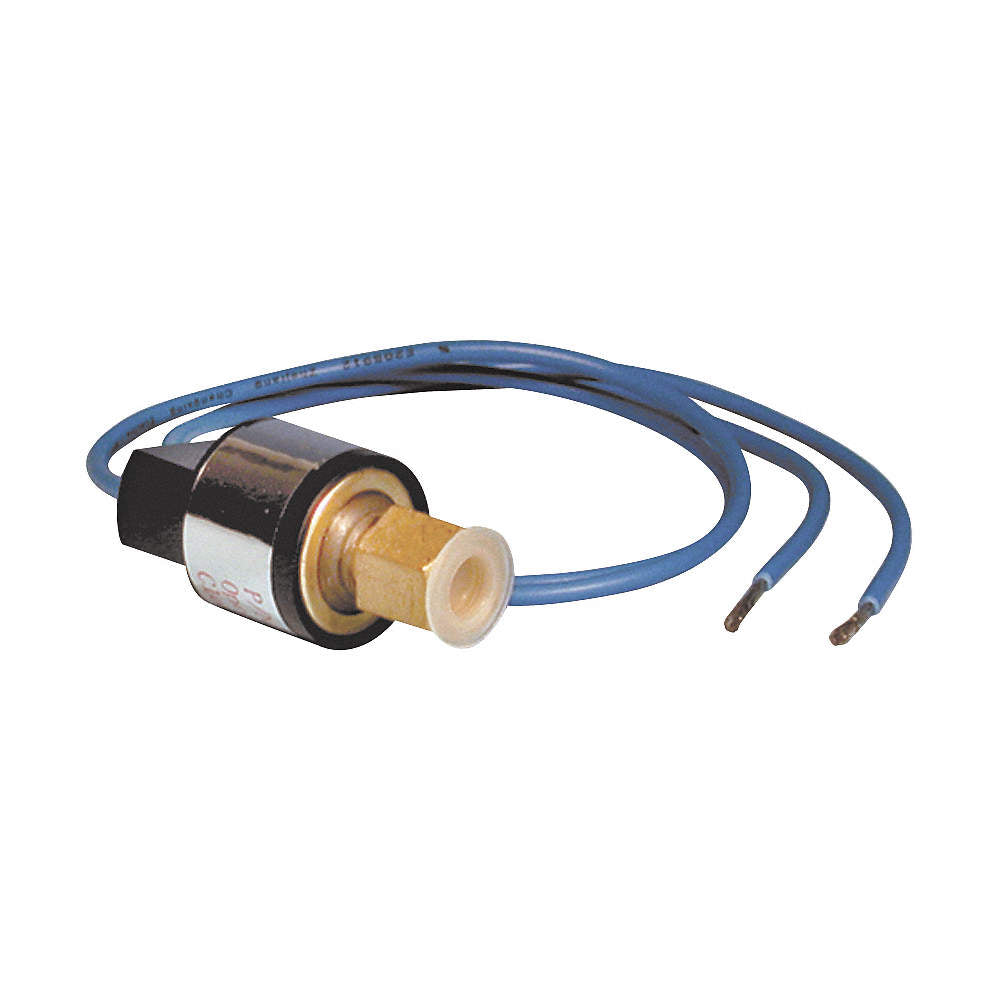

Supco SLP1535 Low Pressure Control Switch, 15-35 PSI

$11.93
SKU SLP1535

Supco SLP1535 Low Pressure Control Switch, 15-35 PSI

High precision controls at economical prices. These switches are encapsulated nonadjustable, SPST, direct mount switches for use with HFC, HCFC and CFC refrigerants. The switches are available with automatic reset in both open low and open high configurations and manual reset with open high switching. These switches can also be used as operating controls in applications such as a low ambient condenser fan control.

  • Low pressure SPST open on pressure fall
  • Temperatures: Ambient -31°F to 248°F (-35°C to 120°C)
  • Rated Voltage: 50/60 Hz, 24/120/240 Volts
  • Life at rated load: 100,000 cycles
  • ¼" SAE female flare fitting with valve core depressor
  • Snap acting stainless steel hermetically sealed sensor (SHP, SLP, and SFC)
  • Small size and light weight for direct mounting
  • Excellent set point repeatability/stability
  • Pressure range: 0 to 650 PSI
  • Burst pressure: 5000 PSI



Specifications
Open PSI: 15
Close PSI: 35
Tolerance: ± 5 PSI
Lead Length: 18"
Wire Gauge: 18AWG
RLA @ 120VAC: 5.8A
RLA @ 240VAC: 2.9A
