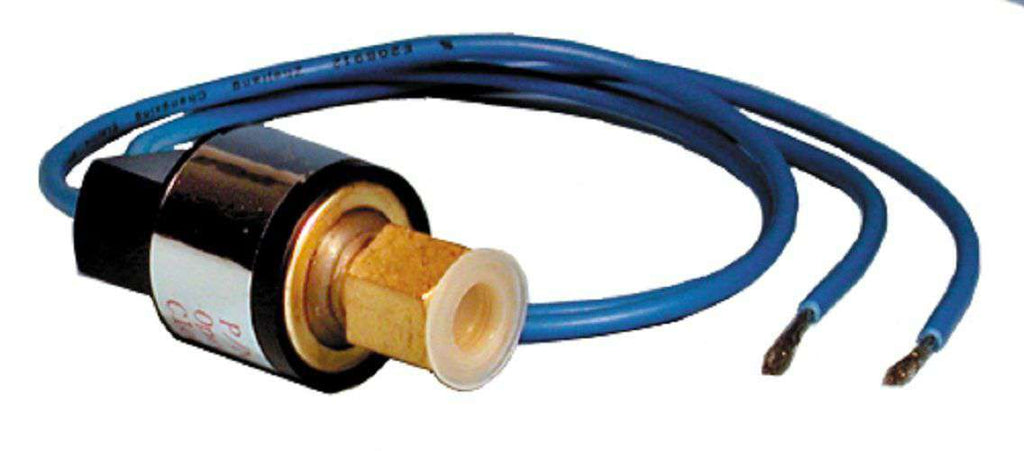

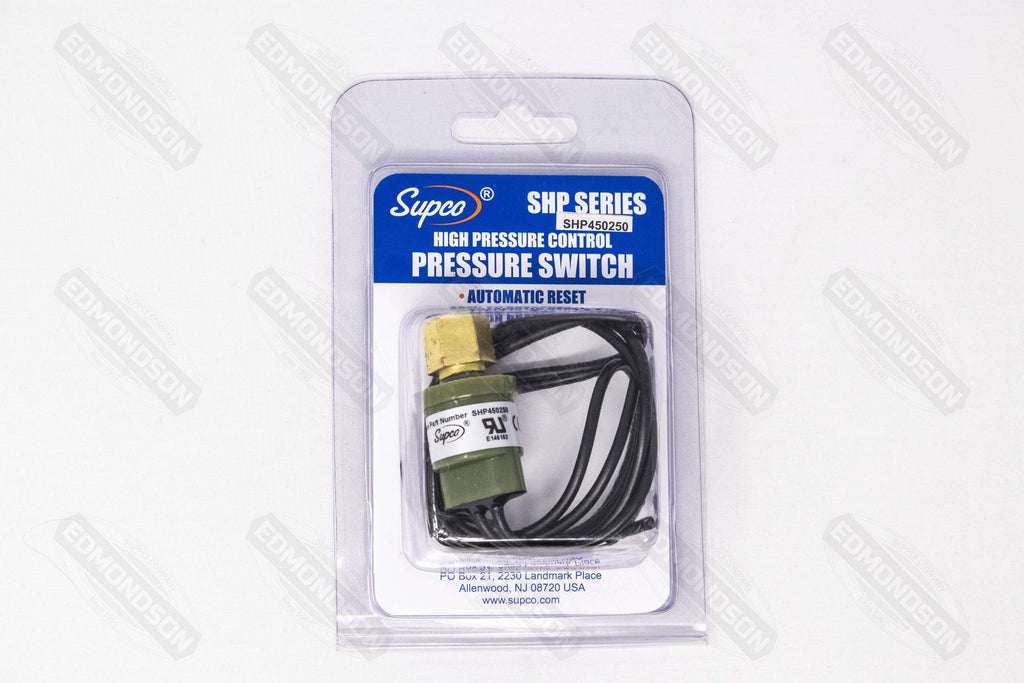

Supco SHP450250 High Pressure Control Switch 450-250 PSI

SKU SHP450250

High precision controls at economical prices.

Encapsulated, non-adjustable, single pole - single throw, direct mount switches for use with HFC, HCFC, and CFC refrigerants.

• High pressure SPST open on pressure rise
• Temperatures:  Ambient 20°F to 176°F (-30°C to 80°C). Fluid 60°F to 250°F (-50°C to 120°C)
• Related Voltage:  50/60 Hz, 24/120/240 Volts (6 RLA, 36 LRA)
• Life at rated load:  100,000 cycles
• 1/4" SAE female flare fitting with valve core depressor
• Snap acting stainless steel hermetically sealed sensor (SHP, SLP, and SFC)
• Small size and lightweight for direct mounting
• Excellent set point repeatability/stability
• Pressure range:  0 to 650 PSI
• Burst pressure:  5000 PSI
• Tolerance:  ±15 PSI
• Close PSI:  250
• Open PSI:  450

**All warranty claims will be handled according to the Supco, Inc. warranty policy.**
