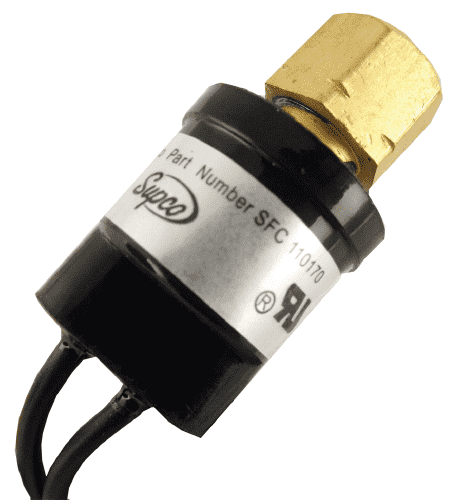

Supco SFC110170 Fan Cycling Pressure Switch, 110-170 PSI

$11.93
SKU SFC110170

Supco SFC110170 Fan Cycling Pressure Switch, 110-170 PSI

High precision controls at economical prices. These switches are encapsulated nonadjustable, SPST, direct mount switches for use with HFC, HCFC and CFC refrigerants. The switches are available with automatic reset in both open low and open high configurations and manual reset with open high switching. These switches can also be used as operating controls in applications such as a low
ambient condenser fan control.

  • Condenser fan cycling SPST close on pressure rise
  • Temperatures: Ambient -31°F to 248°F (-35°C to 120°C)
  • Rated Voltage: 50/60 Hz, 24/120/240 Volts
  • Life at rated load: 100,000 cycles
  • ¼" SAE female flare fitting with valve core depressor
  • Snap acting stainless steel hermetically sealed sensor (SHP, SLP, and SFC)
  • Small size and light weight for direct mounting
  • Excellent set point repeatability/stability
  • Pressure range: 0 to 650 PSI
  • Burst pressure: 5000 PSI



Specifications
RLA @ 240VAC: 2.9A
RLA @ 120VAC: 5.8A
Wire Gauge: 18AWG
Lead Length: 18"
Tolerance: ± 15 PSI
Close PSI: 170
Open PSI: 110
