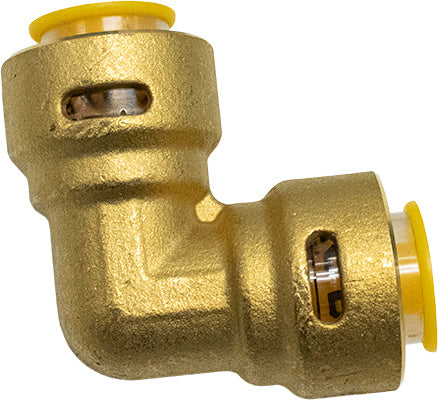

Supco SBE58 5/8" SB1 Elbow 90 Degree, Solder Free
$19.99
SKU SBE58
Supco SBE58 5/8" SB1 Elbow 90 Degree, Solder Free
SB1 Series Quick Connect Refrigerant Fittings are FLAME FREE, Tool FREE and Problem FREE! No brazing, tools or nitrogen purge needed for installation.
Features and Benefits:
- Approved for hard drawn copper - 1/4 - 7/8 in type ACR, M, L, K
- Approved for hard soft copper (annealed) - 1/4 - 7/8 in type ACR, L, K
- Approved refrigerants - R134A, R404A, R290, R407A, R600A, R507, R22, R410A, R32, R407C, R448A, R449A, R454B, R500, R1234YF, R1234ZE
- C3771 brass body
- Vibration resistant rating UL 1963
Specifications
| Continuous Operating Temperature: | 250°F / 121°C |
| O-Ring Temperature: | -40°F / 250°F (-40°C / 121°C) |
| Maximum Rated Pressure (MRP): | 870 PSI / 60 Bar |
| Minimum Burst Pressure : | 3600 PSI / 250 Bar |
| Vacuum Pressure Capability: | 30 Microns |
| Compatibility-Tubing Tolerance: | ASTM B280, UNI EN 12735 |
| Fitting Material: | C3771, Polycarbonate |
| O-Ring Material: | Chloroprene |
| Connection Size (Inch): | .625 |
| Length (Inch): | 1.535 |
| Outside Diameter (Inch): | 1.181 |
| Connection Thread: | None |
Applications :
- Refrigerants
- Glycol
- Non-Potable Water
Cross Reference:
Replacement Part: Rectorseal® 87027
