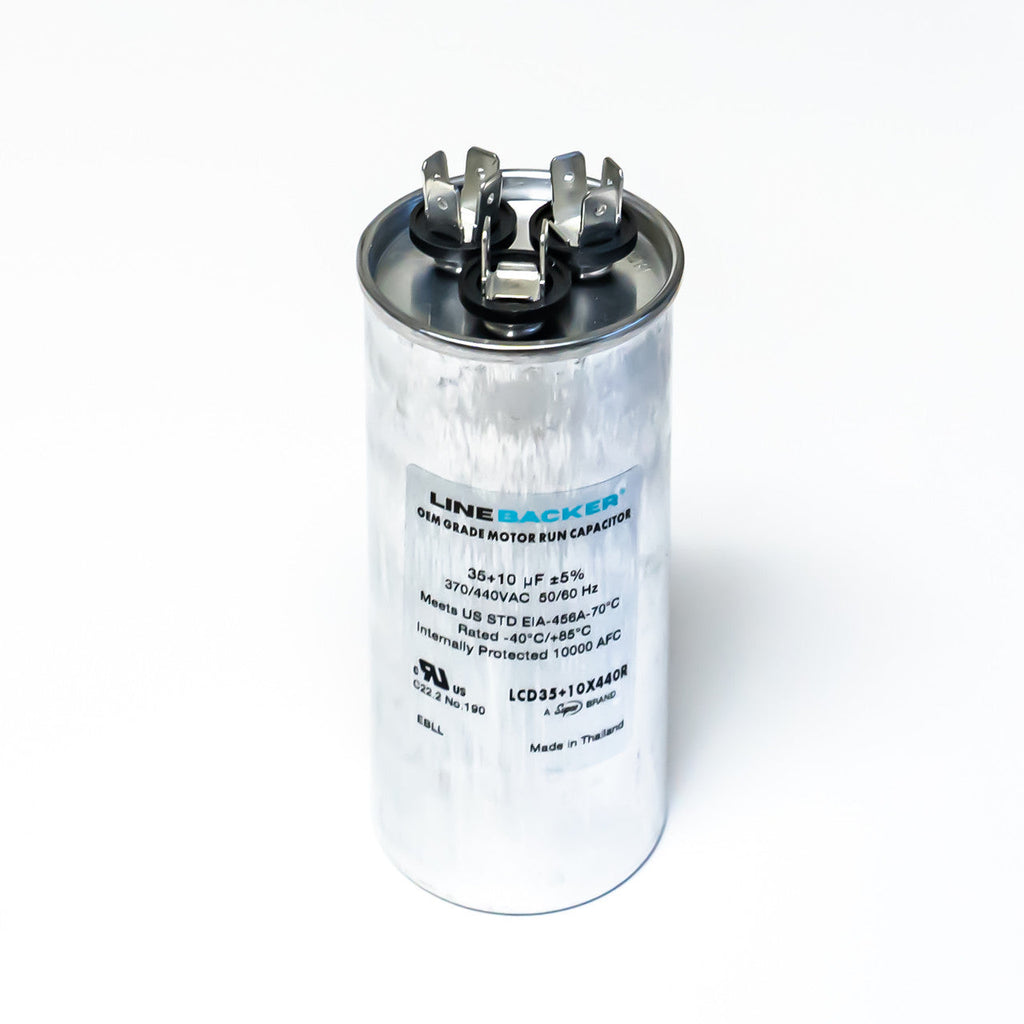

Supco Linebacker LCD35+10X440R Round Dual Run Capacitor
$5.49
SKU LCD35+10X440R
Supco Linebacker LCD35+10X440R Round Dual Run Capacitor
Engineered by an ISO manufacturer with over twenty years' experience in OEM capacitor fabrication, Linebacker® capacitors are manufactured by the OEM factory and are 100% in-line production tested to the same rigorous standards.
-
10,000 AFC pressure sensitive short circuit interrupting capability
-
3-year warranty from the date of purchase
- Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
- Life tested to 85° C operating temperature for 10,000 cycles
- Manufactured with thick polypropylene foil to handle increased operating temperatures
- Meets EIA-456A accelerated life test at 70° C for 60,000 hours
- PCB-free oil to prevent over-heating
- UL File # E352486
- US and Canada UL approved (C22.2NO.190)
- Locate a Distributor Near You
Brochure
Specifications
| Voltage: | Up to 440 VAC |
| Operating Temperature: | -40°F to 185°F (-40°C to 85°C) |
| Foil Thickness: | 6.0 µm +/- 5% |
| Standard Tolerance: | +/- 5% |
| MFD Value: | 35+10 |
| Style: | Round |
| Size: | 1.97x4.13 |
